LCAS8-14-L Equivalent & Substitute Parts

Part Overview

The LCAS8-14-L is a rectangular tongue terminal connector manufactured by Panduit Corp, designed for 8 AWG wire termination on a 1/4" stud. This component is classified as obsolete, which necessitates identification of active equivalent parts for ongoing procurement and system maintenance. The terminal features a crimp barrel termination method, electro-tin contact finish, and non-insulated construction suitable for grounding and power distribution applications.

Substiute Parts

LCAS8-14-L

Panduit CorpIn Stock: 934LCAS8-14-L Datasheet

Current PartRFQ

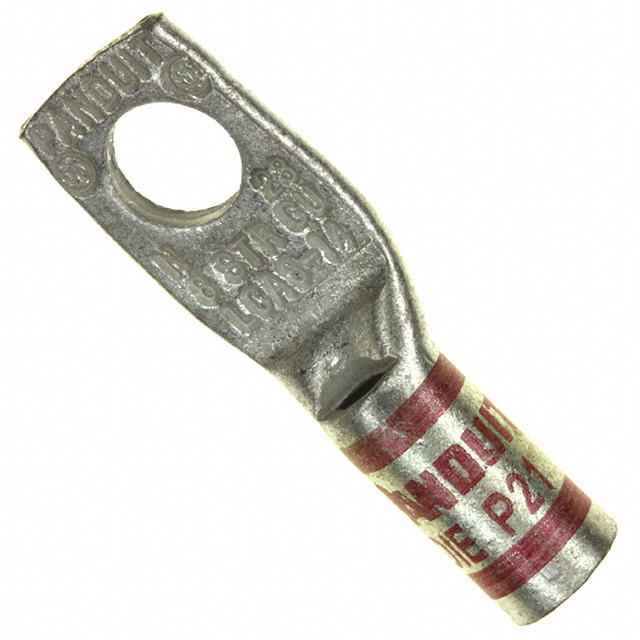

LCA8-14-L

Panduit CorpIn Stock: 2125LCA8-14-L Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the LCAS8-14-L is determined by strict equivalence across the following critical parameters:

Wire Gauge Compatibility: Both the main part and substitute must accommodate 8 AWG wire termination.

Stud/Tab Size: The 1/4" stud dimension is non-negotiable for mechanical fit and electrical connection integrity.

Barrel Dimensions: Barrel ID of 0.180" (4.57mm) and OD of 0.270" (6.86mm) ensure proper crimp engagement and contact reliability.

Ring ID: The 0.270" (6.86mm) ring ID maintains consistent electrical contact with the stud assembly.

Termination Method: Crimp barrel termination is the required connection technique.

Contact Material and Finish: Copper with electro-tin finish ensures corrosion resistance and electrical conductivity.

Compliance Standards: ROHS3 compliance is mandatory for regulatory alignment.

The LCA8-14-L substitute part maintains all critical electrical and mechanical parameters while offering active product status and improved inventory availability.

Parameter Comparison

Engineering Selection Recommendations

The LCA8-14-L is the direct substitute for the obsolete LCAS8-14-L based on electrical and mechanical parameter equivalence. Both components share identical wire gauge, stud size, barrel dimensions, contact material, and contact finish specifications. The substitute part maintains ROHS3 compliance and identical ECCN and HTSUS classifications.

The primary distinction between the parts is product status: the LCAS8-14-L is obsolete with limited remaining inventory (898 pieces), while the LCA8-14-L is active with substantially higher inventory availability (2033 pieces). The LCA8-14-L also features a slightly longer overall length of 1.340" (34.04mm) compared to 1.200" (30.48mm) for the main part, though this dimensional difference does not affect electrical performance or stud compatibility.

For new designs and ongoing procurement, the LCA8-14-L is the appropriate selection due to active product status and sustained manufacturer support.

Frequently Asked Questions (FAQ)

Q: Can the LCA8-14-L be used as a direct replacement for the LCAS8-14-L in existing assemblies?

A: Yes. Both components meet identical electrical and mechanical specifications for 8 AWG wire termination on 1/4" studs. The barrel dimensions, contact material, and contact finish are equivalent. The LCA8-14-L is slightly longer overall (1.340" versus 1.200"), but this does not affect functional compatibility in standard mounting configurations.

Q: What is the difference between a rectangular tongue terminal and a lug, grounding terminal?

A: The LCAS8-14-L is classified as a rectangular tongue terminal, while the LCA8-14-L is classified as a lug, grounding terminal. Both are rectangular connectors with identical stud hole configurations and termination methods. The terminology reflects design classification within the Pan-Lug™ series, but electrical and mechanical performance parameters are equivalent.

Q: Are both parts ROHS3 compliant?

A: Yes. Both the LCAS8-14-L and LCA8-14-L are ROHS3 compliant and carry identical ECCN (EAR99) and HTSUS (8536.90.4000) classifications.

Q: What is the significance of the product status difference?

A: The LCAS8-14-L is classified as obsolete, indicating discontinued manufacturing and limited remaining inventory. The LCA8-14-L is active, indicating current production and sustained availability. For procurement planning, the active substitute part is the appropriate selection.

Q: Are the barrel dimensions identical between both parts?

A: Yes. Both components feature a barrel ID of 0.180" (4.57mm) and barrel OD of 0.270" (6.86mm), ensuring equivalent crimp engagement and electrical contact performance.

Q: What wire gauge does each part accommodate?

A: Both the LCAS8-14-L and LCA8-14-L are designed for 8 AWG wire termination exclusively.

Q: Is insulation provided with either part?

A: No. Both components are non-insulated terminals. Insulation, if required, must be applied separately.
