LCAS8-10H-L Equivalent & Substitute Parts

Part Overview

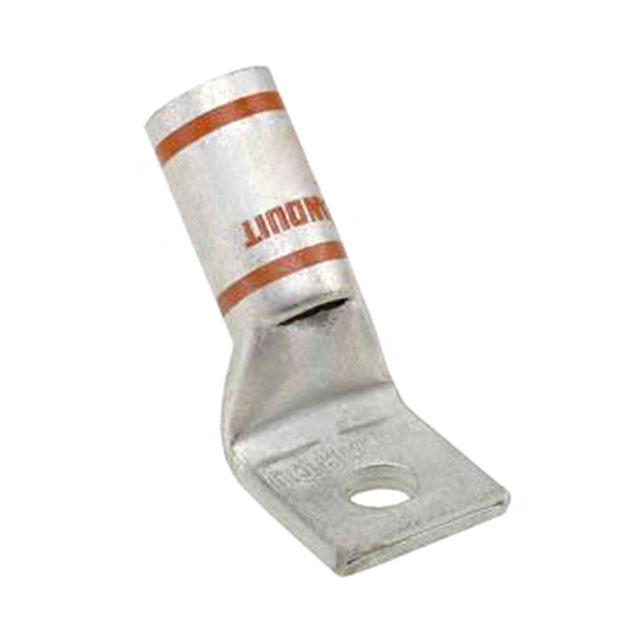

The LCAS8-10H-L is a rectangular tongue terminal connector manufactured by Panduit Corp, designed for 8 AWG wire gauge applications with a #10 stud connection. This component is classified as a Pan-Lug™ series terminal and features a non-insulated, electro-tin plated copper construction. The part is currently listed with obsolete product status. Identification of equivalent substitute parts is necessary to ensure continued availability and supply chain continuity for applications utilizing this terminal connector specification.

Key Parameters

Parameter	Value
Wire Gauge	8 AWG
Stud/Tab Size	10 Stud
Terminal Type	Rectangular Tongue
Termination Method	Crimp, Barrel
Tab Thickness	0.080" (2.03mm)
Barrel ID	0.180" (4.57mm)
Barrel OD	0.270" (6.86mm)
Ring ID	0.200" (5.08mm)
Contact Material	Copper
Contact Finish	Electro-Tin
Insulation	Non-Insulated
Color	Red
Mounting Type	Free Hanging (In-Line), 45° Angle
Series	Pan-Lug™
RoHS Status	ROHS3 Compliant

Substitute Part Grouping Explanation

Substitution of the LCAS8-10H-L is determined by strict equivalence across all critical electrical and mechanical parameters. The substitute part must match the following specifications without deviation:

Wire gauge capacity: 8 AWG
Stud connection size: #10
Terminal geometry: Rectangular tongue configuration
Crimp barrel dimensions: 0.180" ID / 0.270" OD
Ring ID diameter: 0.200"
Tab thickness: 0.080"
Contact material and finish: Copper with electro-tin plating
Mounting orientation: Free hanging, 45° angle
Insulation type: Non-insulated
Regulatory compliance: ROHS3 compliant

The substitute part LCA8-10H-L meets all these parameters and is therefore electrically and mechanically interchangeable with the LCAS8-10H-L.

Parameter Comparison

Parameter	LCAS8-10H-L (Main Part)	LCA8-10H-L (Substitute)
Manufacturer	Panduit Corp	Panduit Corp
Series	Pan-Lug™	Pan-Lug™
Category	Terminals	Terminals
Wire Gauge	8 AWG	8 AWG
Stud/Tab Size	10 Stud	10 Stud
Terminal Type	Rectangular Tongue	Rectangular Tongue
Terminal Style	Single Stud Hole	Single Stud Hole
Tab Thickness	0.080" (2.03mm)	0.080" (2.03mm)
Width - Outer Edges	0.410" (10.41mm)	0.410" (10.41mm)
Mounting Type	Free Hanging (In-Line), 45° Angle	Free Hanging (In-Line), 45° Angle
Termination	Crimp, Barrel	Crimp, Barrel
Insulation	Non-Insulated	Non-Insulated
Color	Red	Red
Contact Finish	Electro-Tin	Electro-Tin
Contact Material	Copper	Copper
Diameter - Barrel ID	0.180" (4.57mm)	0.180" (4.57mm)
Diameter - Barrel OD	0.270" (6.86mm)	0.270" (6.86mm)
Diameter - Ring ID	0.200" (5.08mm)	0.200" (5.08mm)
RoHS Status	ROHS3 Compliant	ROHS3 Compliant
ECCN	EAR99	EAR99
HTSUS	8536.90.4000	8536.90.4000
Product Status	Obsolete	Active
Packaging	Not specified	Bulk

Engineering Selection Recommendations

The LCA8-10H-L is the direct substitute for the obsolete LCAS8-10H-L. Both parts are manufactured by Panduit Corp within the Pan-Lug™ series and share identical electrical and mechanical specifications across all critical parameters. The substitute part maintains full ROHS3 compliance and carries active product status, ensuring ongoing availability and supply chain support.

The primary distinction between the two parts is product status: the LCAS8-10H-L is obsolete while the LCA8-10H-L is active. The LCA8-10H-L is supplied in bulk packaging, whereas the original part packaging specification is not provided. Both parts are functionally equivalent for all 8 AWG wire gauge applications requiring a #10 stud rectangular tongue terminal with crimp barrel termination.

Frequently Asked Questions (FAQ)

Q: Are the LCAS8-10H-L and LCA8-10H-L electrically interchangeable?

A: Yes. Both parts are identical in electrical specifications, including wire gauge capacity (8 AWG), contact material (copper), contact finish (electro-tin plating), and barrel dimensions (0.180" ID / 0.270" OD).

Q: Are the LCAS8-10H-L and LCA8-10H-L mechanically interchangeable?

A: Yes. Both parts are identical in mechanical specifications, including stud size (#10), tab thickness (0.080"), mounting orientation (free hanging, 45° angle), and overall dimensional characteristics.

Q: What is the difference between LCAS8-10H-L and LCA8-10H-L?

A: The LCAS8-10H-L is obsolete, while the LCA8-10H-L is active. The LCA8-10H-L is supplied in bulk packaging. All other specifications are identical.

Q: Can I use LCA8-10H-L in place of LCAS8-10H-L in existing applications?

A: Yes. The LCA8-10H-L meets all electrical and mechanical requirements of the LCAS8-10H-L and is suitable for direct substitution in applications designed for the obsolete part.

Q: Are both parts ROHS3 compliant?

A: Yes. Both the LCAS8-10H-L and LCA8-10H-L are ROHS3 compliant and carry the same ECCN (EAR99) and HTSUS (8536.90.4000) classifications.

Q: What packaging options are available for the substitute part?

A: The LCA8-10H-L is supplied in bulk packaging. The original LCAS8-10H-L packaging specification is not provided in the available documentation.
