LCAF2/0-12H-X Equivalent & Substitute Parts

Part Overview

The LCAF2/0-12H-X is a rectangular tongue terminal connector manufactured by Panduit Corp, designed for 2/0 AWG wire gauge applications with a 1/2 inch stud connection. This component features crimp barrel termination, electro-tin contact finish, and copper contact material. The part is classified as obsolete, necessitating identification of active equivalent alternatives to maintain supply chain continuity and ensure design compatibility in new procurement cycles.

Substiute Parts

LCAF2/0-12H-X

Panduit CorpIn Stock: 687LCAF2/0-12H-X Datasheet

Current PartRFQ

LCAF2/0-12-X

Panduit CorpIn Stock: 908LCAF2/0-12-X Datasheet

SimilarRFQ

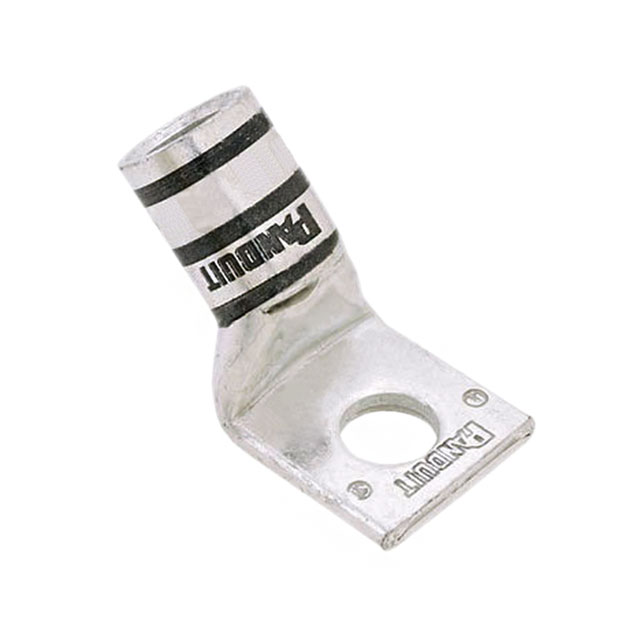

LCAX2/0-12H-X

Panduit CorpIn Stock: 1032LCAX2/0-12H-X Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the LCAF2/0-12H-X is determined by the following critical parameters that must remain constant across equivalent parts:

Mandatory Matching Parameters:

• Wire Gauge: 2/0 AWG
• Stud/Tab Size: 1/2 Stud
• Termination Method: Crimp, Barrel
• Contact Material: Copper
• Contact Finish: Electro-Tin
• Insulation Type: Non-Insulated
• Barrel Inner Diameter (ID): 0.510" (12.95mm)
• Ring Inner Diameter (ID): 0.530" (13.46mm)
• Tab Thickness: 0.130" (3.30mm)
• Width - Outer Edges: 0.960" (24.38mm)
• Terminal Style: Single Stud Hole
• RoHS Compliance: ROHS3 Compliant

Allowable Variation Parameters:

• Terminal Type: Rectangular Tongue or Lug, Grounding
• Mounting Type: Free Hanging (In-Line) with or without 45° Angle
• Color: Orange or Black
• Barrel Outer Diameter (OD): 0.640" to 0.730"
• Product Status: Active preferred over Obsolete

Two substitute parts meet these criteria and are classified as direct equivalents for the LCAF2/0-12H-X.

Parameter Comparison

Engineering Selection Recommendations

LCAF2/0-12-X is the primary substitute for LCAF2/0-12H-X. This part maintains identical electrical and mechanical specifications with the exception of terminal type (Lug, Grounding versus Rectangular Tongue) and mounting configuration (Free Hanging In-Line without 45° angle). The LCAF2/0-12-X carries Active product status, ensuring long-term availability and supply chain stability. ROHS3 compliance is maintained. This substitute is suitable for applications where the grounding lug terminal type and standard in-line mounting are functionally equivalent to the original rectangular tongue design.

LCAX2/0-12H-X is a secondary substitute for LCAF2/0-12H-X. This part preserves the rectangular tongue terminal type and 45° angle mounting configuration of the original component. The LCAX2/0-12H-X differs in barrel outer diameter (0.640" versus 0.730") and color designation (Black versus Orange). The part maintains Active product status and ROHS3 compliance. This substitute is suitable for applications where the rectangular tongue terminal geometry and angled mounting are critical design requirements, with tolerance for the reduced barrel outer diameter and color variation.

Both substitutes are manufactured by Panduit Corp within the Pan-Lug™ series and maintain all critical electrical and mechanical parameters required for 2/0 AWG wire gauge connections with 1/2 inch stud termination.

Frequently Asked Questions (FAQ)

Q: Can LCAF2/0-12-X replace LCAF2/0-12H-X in all applications?

A: LCAF2/0-12-X is electrically and mechanically compatible with LCAF2/0-12H-X for applications requiring 2/0 AWG wire termination on a 1/2 inch stud. The primary difference is terminal type: LCAF2/0-12-X features a grounding lug configuration while LCAF2/0-12H-X features a rectangular tongue. The mounting type also differs (standard in-line versus 45° angle). Verify that your application design accommodates the lug terminal geometry and standard mounting orientation.

Q: What is the difference between LCAX2/0-12H-X and LCAF2/0-12H-X?

A: Both parts feature rectangular tongue terminals with 45° angle mounting and identical wire gauge (2/0 AWG) and stud size (1/2 inch) specifications. The LCAX2/0-12H-X has a smaller barrel outer diameter (0.640" versus 0.730") and is designated in black color rather than orange. The LCAX2/0-12H-X carries Active product status, providing superior long-term availability compared to the obsolete LCAF2/0-12H-X.

Q: Are all three parts ROHS3 compliant?

A: Yes. LCAF2/0-12H-X, LCAF2/0-12-X, and LCAX2/0-12H-X are all ROHS3 compliant and REACH unaffected, meeting current environmental and regulatory requirements.

Q: What is the significance of the barrel outer diameter difference between LCAF2/0-12H-X and LCAX2/0-12H-X?

A: The barrel outer diameter (OD) affects the physical envelope of the crimped connection. LCAF2/0-12H-X has a barrel OD of 0.730" while LCAX2/0-12H-X has a barrel OD of 0.640". Both maintain identical barrel inner diameter (0.510") and ring inner diameter (0.530"), ensuring proper wire gauge accommodation. The reduced OD of LCAX2/0-12H-X may provide space advantages in confined installation environments while maintaining electrical performance.

Q: Why is LCAF2/0-12H-X listed as obsolete?

A: Obsolete status indicates the part is no longer in active production. LCAF2/0-12-X and LCAX2/0-12H-X are active alternatives that provide equivalent or superior functionality with assured long-term availability and supply chain support.

Q: Can color designation (Orange versus Black) affect part selection?

A: Color designation is a visual identification feature and does not affect electrical or mechanical performance. Selection between orange (LCAF2/0-12-X) and black (LCAX2/0-12H-X) may be determined by organizational color-coding standards or installation documentation requirements, but both are functionally equivalent for the terminal connection function.

Q: What packaging options are available for substitute parts?

A: LCAF2/0-12-X and LCAX2/0-12H-X are supplied in Bulk packaging. Inventory availability is confirmed at 895 pieces and 974 pieces respectively, supporting production and procurement requirements.
