LAMA2-14-Q Equivalent & Substitute Parts

Part Overview

The LAMA2-14-Q is a rectangular lug terminal connector manufactured by Panduit Corp, designed for grounding applications with wire gauge compatibility of 2-14 AWG and a 1/4 inch stud connection. This component is classified as obsolete, necessitating identification of equivalent substitute parts for ongoing procurement and system maintenance. The non-insulated aluminum construction with tin contact finish provides reliable electrical connectivity in grounding circuits.

Substiute Parts

LAMA2-14-Q

Panduit CorpIn Stock: 728LAMA2-14-Q Datasheet

Current PartRFQ

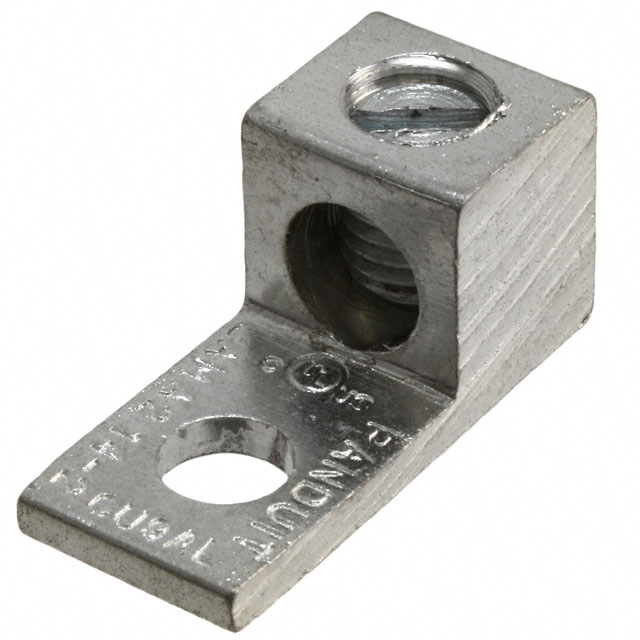

LAMA2-14-QY

Panduit CorpIn Stock: 5088LAMA2-14-QY Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the LAMA2-14-Q is determined by strict equivalence across the following critical parameters:

• Wire gauge range: 2-14 AWG
• Stud/tab size: 1/4 inch
• Terminal type: Lug, grounding application
• Terminal style: Single stud hole
• Mounting configuration: Free hanging (in-line)
• Termination method: Screw
• Contact material: Aluminum
• Contact finish: Tin
• Overall length: 1.160 inches (29.46mm)
• Width at outer edges: 0.500 inches (12.70mm)

The LAMA2-14-QY qualifies as a direct substitute based on identical performance across all critical electrical and mechanical parameters. Minor variations in tab thickness (0.100" versus 0.090") remain within acceptable tolerance for the specified stud connection and do not affect functional compatibility.

Parameter Comparison

Engineering Selection Recommendations

The LAMA2-14-QY serves as the direct equivalent for LAMA2-14-Q applications. Both components maintain identical electrical and mechanical specifications for 2-14 AWG grounding terminal connections with 1/4 inch stud mounting. The LAMA2-14-QY demonstrates enhanced regulatory compliance through ROHS3 certification and REACH affected status documentation, providing superior compliance posture for new designs and procurement cycles. Tab thickness variation (0.100" versus 0.090") does not compromise functional performance within the specified stud connection parameters. Bulk packaging availability for LAMA2-14-QY supports higher-volume procurement requirements compared to the original part number.

Frequently Asked Questions (FAQ)

Q: Can LAMA2-14-QY replace LAMA2-14-Q in existing designs?

A: Yes. The LAMA2-14-QY maintains identical wire gauge range (2-14 AWG), stud size (1/4 inch), terminal style (single stud hole), and mounting configuration (free hanging in-line). The tab thickness difference (0.100" versus 0.090") remains compatible with 1/4 inch stud connections.

Q: What is the significance of the tab thickness variation?

A: Tab thickness of 0.100" (LAMA2-14-QY) versus 0.090" (LAMA2-14-Q) represents a minor dimensional tolerance. Both thicknesses accommodate secure fastening to 1/4 inch studs without affecting electrical performance or mechanical reliability.

Q: Are there compliance differences between these parts?

A: LAMA2-14-QY carries ROHS3 Compliant and REACH Affected designations, compared to RoHS Compliant for LAMA2-14-Q. This reflects updated regulatory documentation for the substitute part and does not alter functional equivalence.

Q: What packaging options are available?

A: LAMA2-14-Q packaging is unspecified in available documentation. LAMA2-14-QY is supplied in bulk packaging, supporting standard procurement and inventory management practices.

Q: Are both parts obsolete?

A: Yes. Both LAMA2-14-Q and LAMA2-14-QY carry obsolete product status. Current inventory availability should be confirmed with authorized distributors prior to procurement decisions.
