LAB600-12-24 Equivalent & Substitute Parts

Part Overview

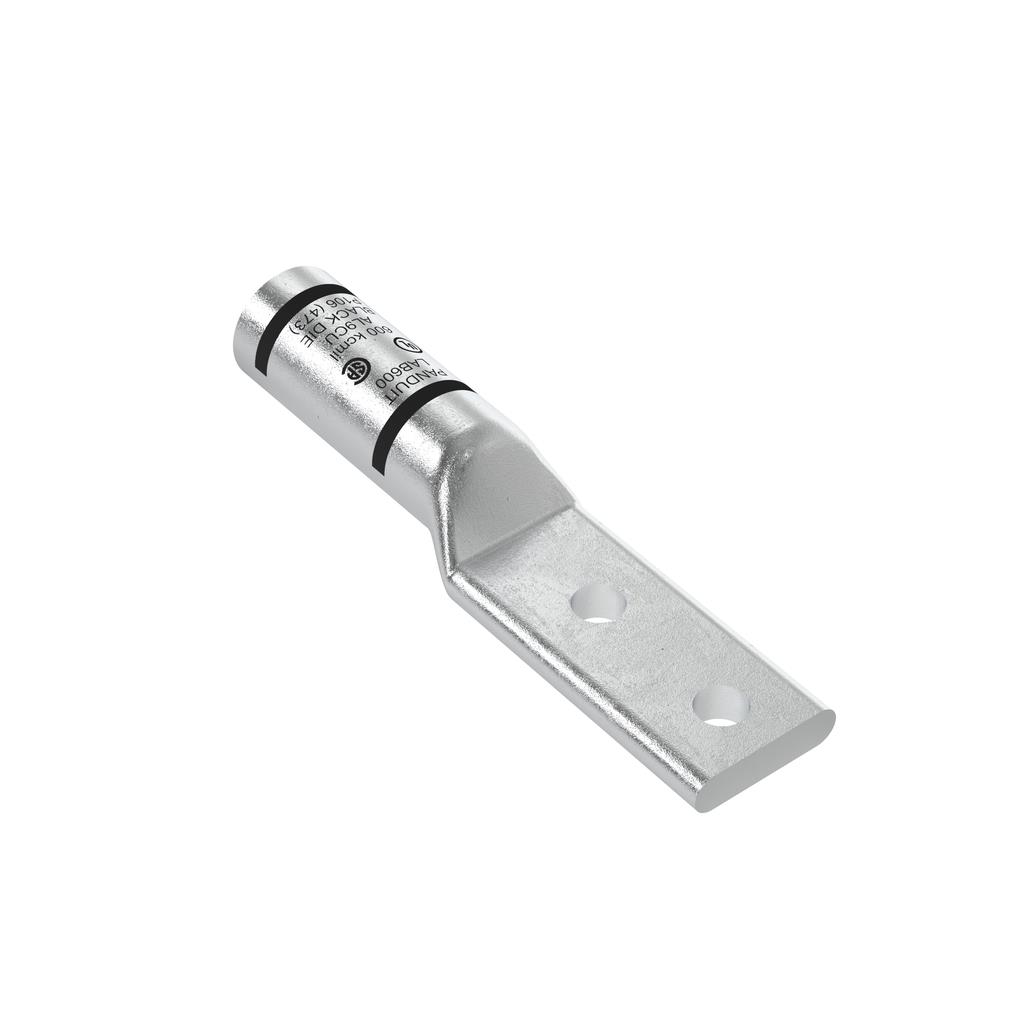

The LAB600-12-24 is a rectangular terminal connector manufactured by Panduit Corp, designed for 600MCM (kcmil) wire gauge applications with a 1/2 stud configuration. This component is classified as a Standard Terminal with two stud holes, featuring crimp termination and aluminum construction with tin contact finish.

The LAB600-12-24 has been discontinued at DiGi Electronics. Identification of equivalent substitute parts is necessary to maintain system compatibility and ensure continued availability for applications requiring this specific terminal connector specification.

Key Parameters

Parameter	Value
Wire Gauge	600MCM (kcmil)
Stud/Tab Size	1/2 Stud
Terminal Style	Two Stud Holes
Tab Thickness	0.500" (12.70mm)
Length - Overall	7.560" (192.02mm)
Width - Outer Edges	1.730" (43.94mm)
Mounting Type	Free Hanging (In-Line)
Termination Method	Crimp
Diameter - Barrel ID	0.920" (23.37mm)
Diameter - Barrel OD	1.440" (36.58mm)
Diameter - Ring ID	0.530" (13.46mm)
Contact Material	Aluminum
Contact Finish	Tin
Insulation	Non-Insulated
Color	Black

Substitute Part Grouping Explanation

Substitution of the LAB600-12-24 is determined by strict equivalence across the following critical parameters:

Mechanical Compatibility Parameters:

Wire gauge: 600MCM (kcmil)
Stud/tab size: 1/2 Stud
Terminal style: Two stud holes
Overall dimensions (length, width, thickness)
Barrel and ring diameters

Electrical & Material Parameters:

Contact material: Aluminum
Contact finish: Tin
Termination method: Crimp
Insulation type: Non-Insulated

Functional Parameters:

Mounting type: Free Hanging (In-Line)

The substitute part LAB600-12-24F maintains all critical mechanical, electrical, and material specifications required for direct substitution. The primary functional difference is the terminal type classification (Lug, Grounding versus Standard), which does not affect the physical or electrical compatibility of the connector in applications requiring the specified wire gauge and stud configuration.

Parameter Comparison

Parameter	LAB600-12-24 (Main Part)	LAB600-12-24F (Substitute)
Manufacturer	Panduit Corp	Panduit Corp
Category	Terminals	Terminals
Wire Gauge	600MCM (kcmil)	600MCM (kcmil)
Stud/Tab Size	1/2 Stud	1/2 Stud
Terminal Style	Two Stud Holes	Two Stud Holes
Tab Thickness	0.500" (12.70mm)	0.500" (12.70mm)
Length - Overall	7.560" (192.02mm)	7.560" (192.02mm)
Width - Outer Edges	1.730" (43.94mm)	1.730" (43.94mm)
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Termination	Crimp	Crimp, Barrel
Diameter - Barrel ID	0.920" (23.37mm)	0.920" (23.37mm)
Diameter - Barrel OD	1.440" (36.58mm)	1.440" (36.58mm)
Diameter - Ring ID	0.530" (13.46mm)	0.530" (13.46mm)
Contact Material	Aluminum	Aluminum
Contact Finish	Tin	Tin
Insulation	Non-Insulated	Non-Insulated
Color	Black	Black
Product Status	Discontinued at DiGi Electronics	Active
Inventory Status	657 Pcs New Original In Stock	1095 Pcs New Original In Stock

Engineering Selection Recommendations

The LAB600-12-24F is the manufacturer-recommended substitute for the discontinued LAB600-12-24. Both components are manufactured by Panduit Corp and share identical mechanical and electrical specifications across all critical parameters.

Product Status Consideration: The LAB600-12-24 is discontinued at DiGi Electronics, while the LAB600-12-24F maintains Active product status with higher inventory availability (1095 pieces versus 657 pieces).

Compliance & Certification: Both parts carry identical ECCN (EAR99) and HTSUS (8536.90.4000) classifications, ensuring equivalent regulatory compliance.

Packaging Difference: The LAB600-12-24F is supplied in Bulk packaging, compared to the main part's unspecified packaging designation. This represents a logistical difference only and does not affect component functionality or compatibility.

Selection of the LAB600-12-24F is appropriate for all applications currently specified for the LAB600-12-24, with the added benefit of active product status and improved supply chain availability.

Frequently Asked Questions (FAQ)

Q: What are the critical parameters that determine if a terminal connector can substitute for the LAB600-12-24?

A: Substitution requires equivalence in wire gauge (600MCM), stud size (1/2), terminal style (two stud holes), overall dimensions (7.560" length, 1.730" width, 0.500" thickness), barrel diameters (0.920" ID, 1.440" OD), ring ID (0.530"), contact material (aluminum), contact finish (tin), termination method (crimp), and mounting type (free hanging in-line).

Q: Is the LAB600-12-24F mechanically compatible with the LAB600-12-24?

A: Yes. All mechanical dimensions, stud configurations, and mounting specifications are identical between the two parts.

Q: What is the difference between the LAB600-12-24 and LAB600-12-24F?

A: The primary difference is the terminal type classification: LAB600-12-24 is classified as Standard Terminal, while LAB600-12-24F is classified as Lug, Grounding. Both maintain identical physical dimensions and electrical specifications. The LAB600-12-24F is currently in active production status, whereas the LAB600-12-24 is discontinued.

Q: Can I use the LAB600-12-24F in existing installations designed for the LAB600-12-24?

A: Yes. The LAB600-12-24F maintains full compatibility with all mechanical and electrical specifications of the LAB600-12-24.

Q: What is the packaging difference between these parts?

A: The LAB600-12-24F is supplied in Bulk packaging. Packaging type does not affect component performance or compatibility.

Q: Why is the LAB600-12-24 discontinued?

A: Product discontinuation information is not provided in the technical specifications. Contact Panduit Corp directly for discontinuation rationale.

Q: Are both parts manufactured by the same company?

A: Yes. Both the LAB600-12-24 and LAB600-12-24F are manufactured by Panduit Corp.
