LAB350-12-2R Equivalent & Substitute Parts

Part Overview

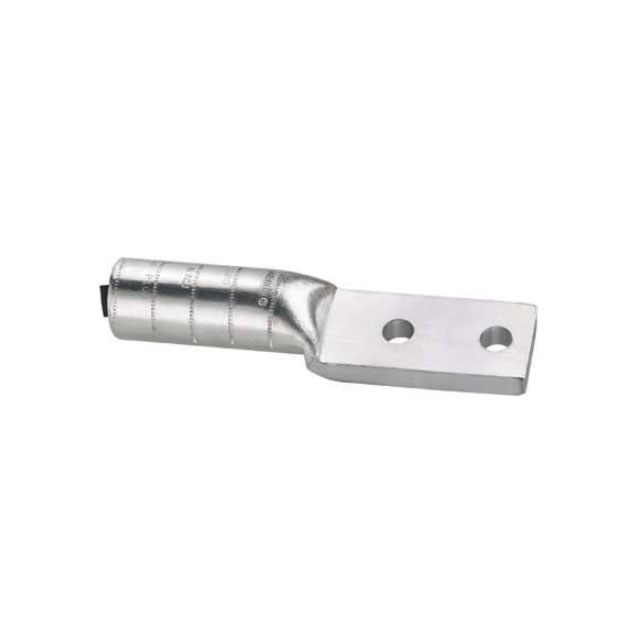

The LAB350-12-2R is an aluminum compression lug manufactured by Panduit Corp, designed for high-amperage electrical terminations. This terminal connector features a rectangular lug configuration with two stud holes, rated for 350MCM (kcmil) wire gauge with a 1/2 inch stud connection. The part is classified as a grounding terminal with non-insulated construction and tin contact finish on aluminum base material.

The LAB350-12-2R is currently discontinued at DiGi Electronics. Identification of equivalent substitute parts is necessary to maintain system compatibility and ensure continued availability for replacement and new installations where this specification is required.

Key Parameters

Parameter	Value
Wire Gauge Rating	350MCM (kcmil)
Stud/Tab Size	1/2 Stud
Terminal Style	Two Stud Holes
Termination Method	Crimp, Barrel
Overall Length	6.560" (166.62mm)
Outer Width	1.520" (38.61mm)
Tab Thickness	0.380" (9.65mm)
Barrel ID	0.720" (18.29mm)
Barrel OD	1.110" (28.19mm)
Ring ID	0.530" (13.46mm)
Contact Material	Aluminum
Contact Finish	Tin
Insulation	Non-Insulated
Mounting Type	Free Hanging (In-Line)
RoHS Status	ROHS3 Compliant

Substitute Part Grouping Explanation

Substitution of the LAB350-12-2R is based on electrical and mechanical parameter equivalence within the Panduit LAB series. The critical parameters that determine substitutability are:

Electrical Parameters: Wire gauge rating (350MCM kcmil), stud size (1/2 inch), barrel dimensions (ID 0.720", OD 1.110"), and ring ID (0.530") must remain constant to ensure proper crimping and electrical connection integrity.

Mechanical Parameters: Overall length (6.560"), outer width (1.520"), tab thickness (0.380"), and two-stud-hole configuration must be maintained for mechanical fit and mounting compatibility.

Material and Finish: Aluminum contact material with tin finish and non-insulated construction must be preserved for corrosion resistance and electrical performance.

Compliance: Both parts must maintain ROHS3 compliance and equivalent regulatory status (REACH Unaffected, EAR99 classification).

The substitute part LAB350-12-XR meets all these criteria while offering active product status and improved inventory availability.

Parameter Comparison

Parameter	LAB350-12-2R (Main Part)	LAB350-12-XR (Substitute)
Manufacturer	Panduit Corp	Panduit Corp
Series	LAB	LAB
Category	Terminals	Terminals
Wire Gauge	350MCM (kcmil)	350MCM (kcmil)
Stud/Tab Size	1/2 Stud	1/2 Stud
Terminal Style	Two Stud Holes	Two Stud Holes
Tab Thickness	0.380" (9.65mm)	0.380" (9.65mm)
Overall Length	6.560" (166.62mm)	6.560" (166.62mm)
Outer Width	1.520" (38.61mm)	1.520" (38.61mm)
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Termination	Crimp, Barrel	Crimp
Insulation	Non-Insulated	Non-Insulated
Contact Material	Aluminum	Aluminum
Contact Finish	Tin	Tin
Barrel ID	0.720" (18.29mm)	0.720" (18.29mm)
Barrel OD	1.110" (28.19mm)	1.110" (28.19mm)
Ring ID	0.530" (13.46mm)	0.530" (13.46mm)
RoHS Status	ROHS3 Compliant	ROHS3 Compliant
REACH Status	REACH Unaffected	REACH Unaffected
ECCN	EAR99	EAR99
HTSUS	8536.90.4000	8536.90.4000
Product Status	Discontinued at DiGi Electronics	Active
Inventory Status	831 Pcs New Original In Stock	1025 Pcs New Original In Stock

Engineering Selection Recommendations

The LAB350-12-XR is the manufacturer-recommended substitute for the discontinued LAB350-12-2R. Both parts are manufactured by Panduit Corp and share identical electrical and mechanical specifications across all critical parameters including wire gauge, stud size, barrel dimensions, and overall form factor.

The LAB350-12-XR offers the following advantages:

Product Status: The substitute part maintains active product status, ensuring long-term availability and continued manufacturing support, whereas the LAB350-12-2R is discontinued.

Regulatory Compliance: Both parts maintain equivalent compliance certifications (ROHS3 Compliant, REACH Unaffected, EAR99 classification, HTSUS 8536.90.4000).

Inventory Availability: The LAB350-12-XR demonstrates higher inventory levels (1025 pcs vs. 831 pcs), supporting immediate procurement requirements.

Functional Equivalence: All electrical and mechanical parameters are identical, ensuring direct substitution without circuit or installation modifications.

Frequently Asked Questions (FAQ)

Q: Can LAB350-12-XR be used as a direct replacement for LAB350-12-2R?

A: Yes. The LAB350-12-XR is the manufacturer-recommended substitute and maintains identical electrical and mechanical specifications. All critical parameters including wire gauge (350MCM), stud size (1/2 inch), barrel dimensions, and mounting configuration are equivalent.

Q: What is the difference between the two parts?

A: The primary differences are product status and color. The LAB350-12-2R is discontinued and specified as a grounding terminal with black color, while the LAB350-12-XR is an active standard terminal with brown color. All electrical and mechanical parameters remain identical.

Q: Are the barrel and ring dimensions identical?

A: Yes. Both parts have identical barrel ID (0.720"), barrel OD (1.110"), and ring ID (0.530"), ensuring compatibility with standard crimping tools and connection hardware.

Q: Do both parts meet the same regulatory requirements?

A: Yes. Both the LAB350-12-2R and LAB350-12-XR are ROHS3 compliant, REACH unaffected, and classified as EAR99 under export control regulations.

Q: What is the wire gauge capacity for these terminals?

A: Both terminals are rated for 350MCM (kcmil) wire gauge, supporting high-amperage electrical applications.

Q: Are these terminals insulated or non-insulated?

A: Both parts are non-insulated aluminum compression lugs with tin contact finish.

Q: What mounting configuration do these terminals use?

A: Both terminals feature free-hanging in-line mounting with two stud holes for secure fastening to grounding or electrical distribution systems.
