L17DAFRBA15PC309 Equivalent & Substitute Parts

Part Overview

The L17DAFRBA15PC309 is a 15-position D-Sub plug connector manufactured by Amphenol ICC (Commercial Products) in the DFR series. This free-hanging, in-line connector features IDC ribbon cable termination with male pins and is designed for signal applications. The connector is actively produced and RoHS compliant, making it suitable for modern electronic assemblies requiring D-Sub connectivity with ribbon cable integration.

Substitute parts are identified when equivalent D-Sub connectors share the same core electrical and mechanical specifications, including connector style, position count, pin configuration, termination method, and contact characteristics. Alternative models may differ in mounting type, shell finish, or flange design while maintaining functional compatibility within the specified parameter constraints.

Substiute Parts

L17DAFRBA15PC309

Amphenol ICC (Commercial Products)In Stock: 986L17DAFRBA15PC309 Datasheet

Current PartRFQ

8215-6000

3MIn Stock: 8058215-6000 Datasheet

SimilarRFQ

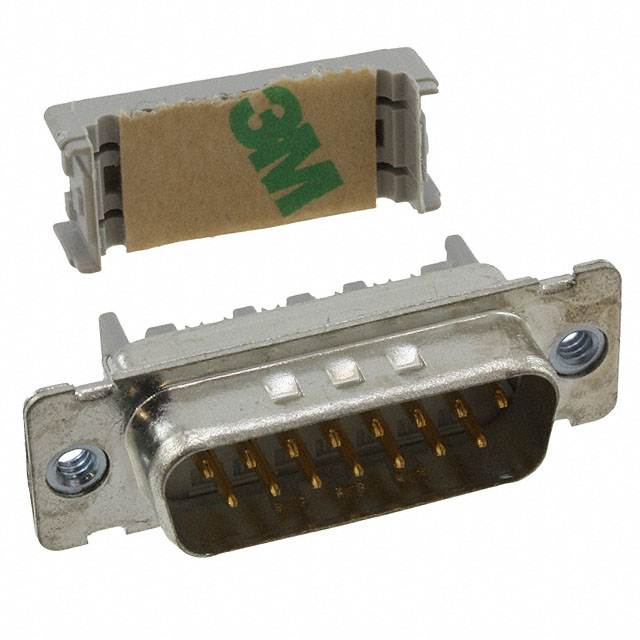

8215-6003

3MIn Stock: 12678215-6003 Datasheet

SimilarRFQ

8215-6009

3MIn Stock: 11368215-6009 Datasheet

SimilarRFQ

8215-8000

3MIn Stock: 9028215-8000 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the L17DAFRBA15PC309 are qualified based on the following core parameters that determine functional equivalence:

Critical Matching Parameters:

• Connector style: D-Sub
• Connector type: Plug with male pins
• Position count: 15 positions
• Row configuration: 2 rows
• Shell size and layout: 2 (DA, A)
• Termination method: IDC, ribbon cable
• Contact finish: Gold plating at 30.0µin (0.76µm)
• Flammability rating: UL94 V-0
• Contact type: Signal

Allowable Variations:

• Mounting type (free-hanging versus panel mount)
• Shell material finish (nickel plated versus tin plated)
• Contact material composition (brass versus copper alloy)
• Current rating (5A versus 1A)
• Operating temperature range
• Packaging format (tray versus bulk)
• Flange feature design

The 3M 8200 series connectors (8215-6000, 8215-6003, 8215-6009, 8215-8000) meet all critical matching parameters while differing in mounting configuration and shell finish characteristics. These differences do not affect the core electrical and mechanical compatibility for ribbon cable IDC termination applications.

Parameter Comparison

Engineering Selection Recommendations

All substitute parts listed (8215-6000, 8215-6003, 8215-6009, 8215-8000) are actively produced and maintain compliance with RoHS3 standards. The L17DAFRBA15PC309 is RoHS compliant, and all substitute options exceed this requirement with ROHS3 compliance.

Mounting Configuration Consideration: The L17DAFRBA15PC309 is configured for free-hanging, in-line mounting, while all 3M substitute parts are panel mount connectors. Selection of a substitute requires confirmation that the application environment supports panel mount installation.

Flange Feature Differentiation:

• 8215-6000 and 8215-6009: Housing/Shell (Unthreaded)
• 8215-6003: Housing/Shell (4-40)
• 8215-8000: Housing/Shell (Unthreaded)

Flange feature selection depends on the specific mounting hardware and panel configuration requirements.

Current Rating: The L17DAFRBA15PC309 carries a 5A current rating, while all 3M substitutes are rated at 1A. Applications requiring current capacity above 1A must retain the original Amphenol ICC part.

Operating Temperature Range: The L17DAFRBA15PC309 operates from -25°C to 85°C. All 3M substitutes support an extended range of -55°C to 105°C, providing broader environmental compatibility.

Packaging Format:

• L17DAFRBA15PC309: Tray packaging
• 8215-6000, 8215-6003: Tray packaging
• 8215-6009, 8215-8000: Bulk packaging

Packaging selection aligns with procurement and inventory management requirements.

Frequently Asked Questions (FAQ)

Q: Can the 3M 8215 series connectors directly replace the L17DAFRBA15PC309 in existing assemblies?

A: Direct replacement depends on the mounting configuration of the existing assembly. The L17DAFRBA15PC309 is designed for free-hanging, in-line installation, while all 3M substitutes require panel mount installation. Physical mounting compatibility must be confirmed before substitution.

Q: What is the significance of the current rating difference between the L17DAFRBA15PC309 (5A) and the 3M substitutes (1A)?

A: Current rating indicates the maximum continuous current the connector can safely carry. Applications requiring current capacity above 1A per contact must use the L17DAFRBA15PC309 or identify alternative connectors with equivalent or higher current ratings.

Q: Are the shell finish differences (nickel plated versus tin plated) functionally significant?

A: Shell finish affects corrosion resistance and environmental durability. Nickel plating provides enhanced corrosion resistance in harsh environments, while tin plating is suitable for standard industrial applications. Selection depends on the specific environmental exposure conditions of the application.

Q: Do all substitute parts support IDC ribbon cable termination?

A: Yes. All listed substitute parts (8215-6000, 8215-6003, 8215-6009, 8215-8000) support IDC ribbon cable termination, matching the core termination method of the L17DAFRBA15PC309.

Q: What is the difference between the 8215-6000, 8215-6009, and 8215-8000 models?

A: These three models share identical electrical and mechanical specifications. The primary differences are packaging format (tray versus bulk) and REACH compliance status. 8215-6000 and 8215-8000 have vendor-undefined REACH status, while 8215-6009 is REACH unaffected. Selection depends on procurement requirements and regulatory compliance documentation needs.

Q: Is the 8215-6003 different from the other 3M substitutes?

A: The 8215-6003 differs in flange feature design, featuring a Housing/Shell (4-40) configuration compared to the unthreaded housing of 8215-6000, 8215-6009, and 8215-8000. The 4-40 flange accommodates specific panel mounting hardware. Selection depends on the panel thickness and mounting hardware specifications of the target application.

Q: Are all substitute parts RoHS compliant?

A: Yes. The L17DAFRBA15PC309 is RoHS compliant, and all substitute parts (8215-6000, 8215-6003, 8215-6009, 8215-8000) are ROHS3 compliant, exceeding the original compliance requirement.

Q: What contact material differences exist between the main part and substitutes?

A: The L17DAFRBA15PC309 uses brass contacts, while all 3M substitutes use copper alloy contacts. Both materials support gold plating at 30.0µin (0.76µm) thickness and are suitable for signal applications. Contact material selection does not affect electrical performance for standard signal transmission applications.

Q: Can the extended operating temperature range of the 3M substitutes (-55°C to 105°C) be used in place of the L17DAFRBA15PC309 (-25°C to 85°C)?

A: Yes. The 3M substitutes support a broader operating temperature range that encompasses the L17DAFRBA15PC309 specification. Applications operating within the -25°C to 85°C range are fully compatible with the extended temperature capability of the substitute parts.
