L-12-10-W Ring Terminal Connector Equivalent & Substitute Parts

Part Overview

The L-12-10-W is a non-insulated ring terminal connector manufactured by 3M, designed for 14-16 AWG wire gauges with a #10 stud connection. This circular terminal features a brazed seam construction and tin-plated copper contact material, suitable for free-hanging in-line mounting applications. The part is currently active in production with 1389 pieces available in inventory. Equivalent and substitute parts are identified to provide alternative sourcing options when the primary part is unavailable or when design flexibility permits component selection within compatible electrical and mechanical parameters.

Substiute Parts

L-12-10-W

3MIn Stock: 1452L-12-10-W Datasheet

Current PartRFQ

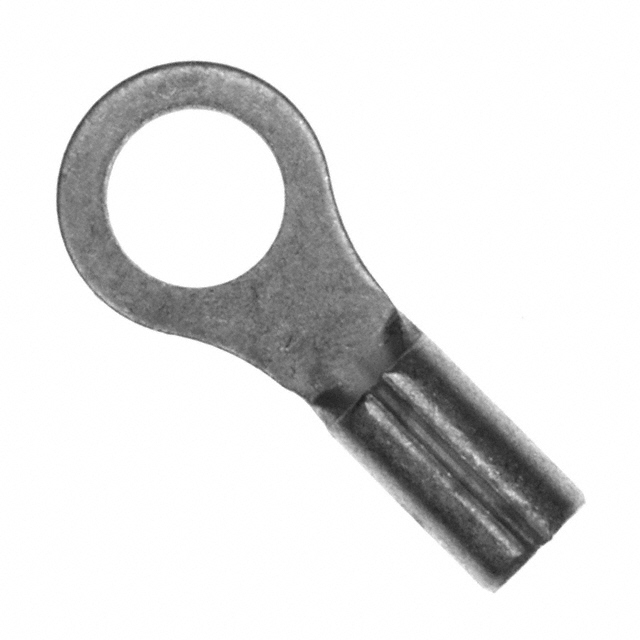

P14-10R-C

Panduit CorpIn Stock: 6001P14-10R-C Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the L-12-10-W is permissible with parts that maintain compatibility across the following critical parameters:

Terminal Type and Stud Size: Both the main part and substitute must be circular ring terminals with #10 stud connection to ensure mechanical fit with mating hardware.

Wire Gauge Compatibility: The L-12-10-W accommodates 14-16 AWG wire. Substitute parts with wire gauge ranges that encompass or extend within this specification (such as 14-18 AWG) are acceptable, as they maintain the ability to terminate the specified wire gauges.

Contact Material and Finish: Copper with tin plating is the standard for this application. Substitutes must maintain identical contact material and finish to ensure electrical performance and corrosion resistance.

Mechanical Dimensions: Thickness, outer edge width, and overall length must remain consistent to ensure proper fit in connector assemblies and on studs.

Termination Method: Crimp termination is required; substitutes must use identical termination technology.

Insulation Status: Both parts are non-insulated; this characteristic must be preserved in substitutes.

The P14-10R-C from Panduit Corp meets these criteria and is identified as a manufacturer-recommended substitute.

Parameter Comparison

Engineering Selection Recommendations

Both the L-12-10-W and P14-10R-C are active production parts with established supply availability. The P14-10R-C offers ROHS3 compliance, which may be required for applications subject to European Union Restriction of Hazardous Substances regulations. The L-12-10-W is not subject to RoHS classification. Selection between these parts should be based on regulatory requirements applicable to the end application and supply chain considerations. The P14-10R-C accommodates a broader wire gauge range (14-18 AWG versus 14-16 AWG), providing additional design flexibility for applications within the 14-16 AWG specification. Both parts maintain identical stud size, contact material, contact finish, and mechanical dimensions critical to connector assembly compatibility.

Frequently Asked Questions (FAQ)

Q: Can the P14-10R-C substitute for the L-12-10-W in all applications?

A: The P14-10R-C is mechanically and electrically compatible with the L-12-10-W for applications using 14-16 AWG wire. The substitute accommodates wire gauges up to 18 AWG, which does not affect compatibility with the specified 14-16 AWG range. Both parts share identical stud size (#10), contact material (copper), contact finish (tin), and mechanical dimensions. Substitution is appropriate when regulatory compliance requirements do not mandate the specific manufacturer or when supply of the L-12-10-W is constrained.

Q: What is the significance of the wire gauge range difference?

A: The L-12-10-W is rated for 14-16 AWG wire, while the P14-10R-C accommodates 14-18 AWG. This difference indicates the P14-10R-C can terminate thinner wire (18 AWG) in addition to the specified range. For applications using only 14-16 AWG wire, both parts perform identically. The broader range of the substitute does not introduce incompatibility.

Q: Are there differences in the overall length between these parts?

A: The L-12-10-W has an overall length of 0.740" (18.80mm), while the P14-10R-C measures 0.710" (18.03mm). This 0.030" (0.77mm) difference is minor and does not affect stud fit or connector assembly compatibility. Both parts maintain identical outer edge width (0.310") and thickness (0.030"), which are the critical dimensions for mechanical fit.

Q: What does the serrated termination feature on the P14-10R-C provide?

A: The serrated termination feature on the P14-10R-C is a mechanical characteristic of the crimp barrel design. Both parts use crimp termination; the serration on the substitute provides additional surface area for wire grip during the crimping process. This feature does not affect compatibility with the L-12-10-W specification and is a design variation within the same functional category.

Q: Does RoHS compliance affect the choice between these parts?

A: RoHS3 compliance is a regulatory requirement for products sold in the European Union and certain other markets. The P14-10R-C is ROHS3 compliant, while the L-12-10-W is not subject to RoHS classification. If the end application or supply chain requires RoHS compliance, the P14-10R-C is the appropriate selection. For applications without RoHS requirements, both parts are functionally equivalent.

Q: Can these parts be used interchangeably in existing assemblies?

A: Yes, the P14-10R-C can replace the L-12-10-W in existing connector assemblies. Both parts have identical stud size, contact material, contact finish, and outer dimensions. The minor difference in overall length (0.030") does not affect assembly fit or electrical performance. Interchangeability is confirmed for applications using 14-16 AWG wire.
