L08P200D15 Hall Effect Current Sensor - Equivalent & Substitute Parts

Part Overview

The L08P200D15 is a Hall Effect current sensor manufactured by Tamura, designed for AC/DC current measurement applications with a 200A sensing range. This component is an open-loop, bidirectional module that provides ratiometric voltage output, operating across a frequency range of DC to 100kHz with ±1% linearity.

The L08P200D15 is classified as obsolete. Identifying equivalent and substitute parts is necessary to maintain design continuity, ensure supply chain reliability, and support ongoing production requirements for applications currently utilizing this sensor.

Substiute Parts

L08P200D15

TamuraIn Stock: 1087L08P200D15 Datasheet

Current PartRFQ

L08P200D15W

TamuraIn Stock: 1198L08P200D15W Datasheet

MFR RecommendedRFQ

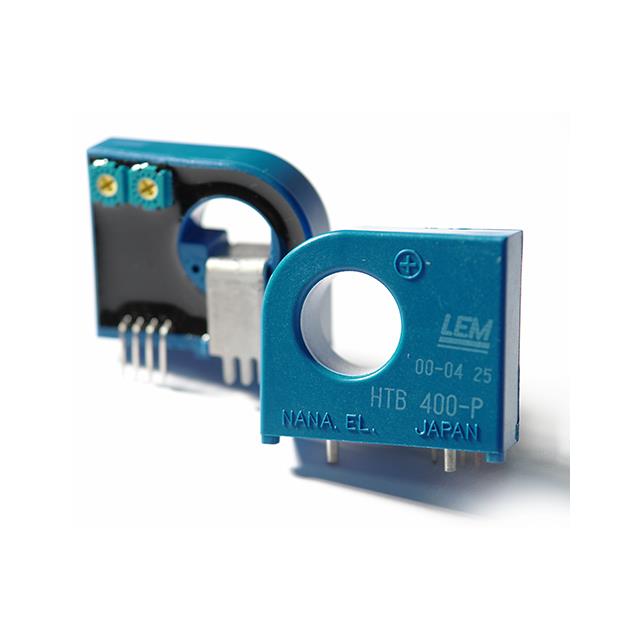

HTB 200-P

LEM USA Inc.In Stock: 1260HTB 200-P Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the L08P200D15 is determined by the following critical parameters:

Primary Compatibility Criteria:

• Current sensing range: 200A
• Sensor technology: Hall Effect, Open Loop
• Output configuration: Ratiometric, Voltage
• Polarization: Bidirectional
• Number of channels: 1
• Mounting technology: Through Hole

Secondary Compatibility Criteria:

• Supply voltage compatibility (15V nominal)
• Operating temperature range overlap (-20°C ~ 80°C minimum)
• Linearity specification (±1%)
• RoHS compliance status

The substitute parts identified below meet these core electrical and mechanical parameters, enabling direct functional replacement in applications designed for the L08P200D15.

Parameter Comparison

Engineering Selection Recommendations

L08P200D15W (Tamura - Manufacturer Recommended Substitute)

The L08P200D15W is the direct manufacturer-recommended substitute for the obsolete L08P200D15. Both components are manufactured by Tamura and share identical electrical specifications for current sensing (200A), output type (ratiometric voltage), polarization (bidirectional), and linearity (±1%). The L08P200D15W maintains the same operating temperature range and supply voltage requirements. The primary difference is the extended response time (50µs versus 10µs) and increased maximum supply current (20mA versus 12mA). The L08P200D15W is currently in active production status with confirmed inventory availability. RoHS compliance is maintained.

HTB 200-P (LEM USA Inc. - Cross-Manufacturer Substitute)

The HTB 200-P is a functionally equivalent Hall Effect current sensor from LEM USA Inc., meeting all primary compatibility criteria: 200A current sensing, open-loop Hall Effect technology, ratiometric voltage output, and bidirectional polarization. This component offers superior response time performance (3µs) and an extended operating temperature range (-40°C ~ 80°C). The HTB 200-P operates within the compatible supply voltage range (±12V ~ 15V) and maintains ±1% linearity specification. The frequency range is limited to DC ~ 50kHz compared to the original L08P200D15 specification of DC ~ 100kHz. The HTB 200-P is in active production status with confirmed inventory availability and RoHS compliance certification.

Frequently Asked Questions (FAQ)

Q: Can the L08P200D15W be used as a direct replacement for the L08P200D15?

A: Yes. The L08P200D15W is the manufacturer-recommended substitute. Both components share identical current sensing range (200A), sensor technology (Hall Effect, open loop), output configuration (ratiometric voltage), polarization (bidirectional), linearity (±1%), supply voltage (15V), and operating temperature range (-20°C ~ 80°C). The L08P200D15W is currently in active production.

Q: What are the key differences between the L08P200D15W and HTB 200-P?

A: Both are functionally equivalent 200A Hall Effect current sensors with ratiometric voltage output. The HTB 200-P offers faster response time (3µs versus 50µs) and wider operating temperature range (-40°C ~ 80°C versus -20°C ~ 80°C). The HTB 200-P frequency range is limited to DC ~ 50kHz, while the L08P200D15W specification is not provided. The HTB 200-P supply voltage range is ±12V ~ 15V, providing broader compatibility.

Q: Are both substitute parts RoHS compliant?

A: Yes. Both the L08P200D15W and HTB 200-P are RoHS compliant, matching the compliance status of the original L08P200D15.

Q: What is the significance of the "Single Pass Through" package designation?

A: The "Single Pass Through" designation indicates the sensor's conductor configuration, allowing a single conductor to pass through the sensor aperture for current measurement. This is a mechanical packaging feature that affects physical installation but does not alter electrical functionality or substitution compatibility.

Q: Which substitute should be selected for applications requiring maximum frequency response?

A: The L08P200D15W is the appropriate selection, as it maintains the original frequency specification range. The HTB 200-P is limited to DC ~ 50kHz, which may not be suitable for applications requiring the full DC ~ 100kHz bandwidth of the original L08P200D15.

Q: Can the HTB 200-P be used in applications originally designed for the L08P200D15?

A: The HTB 200-P is functionally equivalent for 200A AC/DC current measurement with Hall Effect open-loop technology and ratiometric voltage output. However, applications requiring frequency response above 50kHz or the specific response time of 10µs should verify compatibility with the HTB 200-P specifications (3µs response time, DC ~ 50kHz maximum frequency).
