KXG450VB15RM12X25LL Equivalent & Substitute Parts

Part Overview

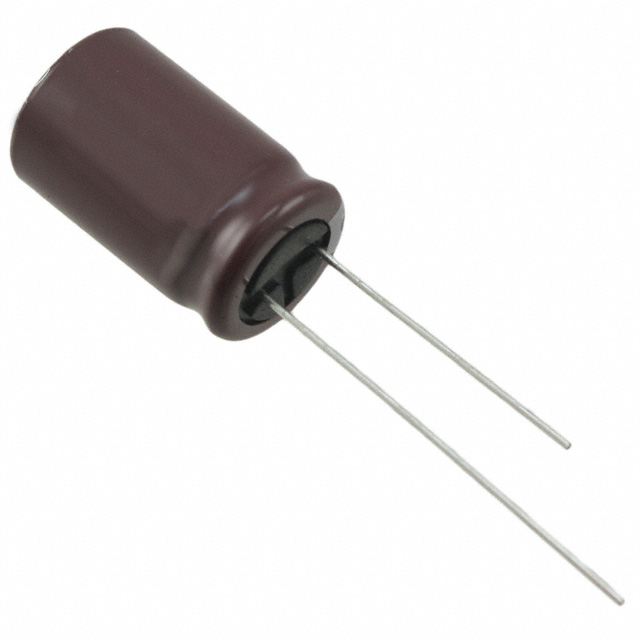

The KXG450VB15RM12X25LL is a 15 µF, 450 V aluminum electrolytic capacitor in radial, can package manufactured by Chemi-Con. This component is rated for 10,000 hours at 105°C and is designed for general-purpose applications requiring through-hole mounting. The part is currently obsolete, making equivalent substitutes necessary for ongoing production, maintenance, and repair applications.

Key Parameters

Parameter	Value
Capacitance	15 µF
Tolerance	±20%
Voltage - Rated	450 V
Lifetime @ Temperature	10,000 Hrs @ 105°C
Operating Temperature Range	-25°C ~ 105°C
Polarization	Polar
Lead Spacing	0.197" (5.00 mm)
Size / Dimension	0.492" Dia (12.50 mm)
Height - Seated (Max)	0.984" (25.00 mm)
Mounting Type	Through Hole
Package / Case	Radial, Can

Substitute Part Grouping Explanation

Substitution of the KXG450VB15RM12X25LL is determined by strict equivalence across the following electrical and mechanical parameters:

Electrical Parameters:

Capacitance: 15 µF (exact match required)
Tolerance: ±20% (exact match required)
Voltage Rating: 450 V (exact match required)
Operating Temperature Range: -25°C ~ 105°C (exact match required)
Lifetime: 10,000 Hrs @ 105°C (exact match required)
Polarization: Polar (exact match required)

Mechanical Parameters:

Lead Spacing: 0.197" (5.00 mm) (exact match required)
Diameter: 0.492" (12.50 mm) (exact match required)
Height: 0.984" (25.00 mm) (exact match required)
Mounting Type: Through Hole (exact match required)
Package Type: Radial, Can (exact match required)

The EEU-ED2W150 from Panasonic Electronic Components meets all specified electrical and mechanical parameters and qualifies as a parametric equivalent.

Parameter Comparison

Parameter	KXG450VB15RM12X25LL (Chemi-Con)	EEU-ED2W150 (Panasonic)
Capacitance	15 µF	15 µF
Tolerance	±20%	±20%
Voltage - Rated	450 V	450 V
Lifetime @ Temperature	10,000 Hrs @ 105°C	10,000 Hrs @ 105°C
Operating Temperature Range	-25°C ~ 105°C	-25°C ~ 105°C
Polarization	Polar	Polar
Ripple Current @ 120 Hz	240 mA	224 mA
Ripple Current @ 100 kHz	600 mA	560 mA
Lead Spacing	0.197" (5.00 mm)	0.197" (5.00 mm)
Size / Dimension	0.492" Dia (12.50 mm)	0.492" Dia (12.50 mm)
Height - Seated (Max)	0.984" (25.00 mm)	0.984" (25.00 mm)
Mounting Type	Through Hole	Through Hole
Package / Case	Radial, Can	Radial, Can
Product Status	Obsolete	Active
RoHS Status	RoHS non-compliant	ROHS3 Compliant

Engineering Selection Recommendations

The EEU-ED2W150 is the qualified substitute for the KXG450VB15RM12X25LL based on the following factors:

Product Status: The KXG450VB15RM12X25LL is obsolete, while the EEU-ED2W150 maintains active product status, ensuring long-term availability and supply chain continuity.

Compliance: The EEU-ED2W150 is ROHS3 compliant, whereas the original part is RoHS non-compliant. This compliance difference is significant for applications subject to RoHS regulations.

Electrical Equivalence: Both parts share identical capacitance (15 µF), voltage rating (450 V), tolerance (±20%), operating temperature range (-25°C ~ 105°C), and lifetime rating (10,000 Hrs @ 105°C).

Mechanical Compatibility: Lead spacing, diameter, height, and mounting type are identical, ensuring direct board-level compatibility without PCB redesign.

Ripple Current: The EEU-ED2W150 exhibits slightly lower ripple current ratings (224 mA @ 120 Hz and 560 mA @ 100 kHz) compared to the original part (240 mA @ 120 Hz and 600 mA @ 100 kHz). These differences remain within acceptable operational margins for general-purpose applications.

Frequently Asked Questions (FAQ)

Q: Can the EEU-ED2W150 be used as a direct replacement for the KXG450VB15RM12X25LL?

A: Yes. The EEU-ED2W150 meets all specified electrical and mechanical parameters. Both parts are 15 µF, 450 V, ±20% tolerance aluminum electrolytic capacitors with identical physical dimensions and through-hole radial mounting configuration.

Q: What is the difference in ripple current between these parts?

A: The KXG450VB15RM12X25LL is rated for 240 mA @ 120 Hz and 600 mA @ 100 kHz. The EEU-ED2W150 is rated for 224 mA @ 120 Hz and 560 mA @ 100 kHz. Both ratings are suitable for general-purpose applications.

Q: Does the RoHS compliance difference affect substitution?

A: The EEU-ED2W150 is ROHS3 compliant while the KXG450VB15RM12X25LL is RoHS non-compliant. For applications subject to RoHS regulations, the EEU-ED2W150 is the appropriate choice. For legacy systems without RoHS requirements, both parts are functionally equivalent.

Q: Are the physical dimensions identical?

A: Yes. Both parts have identical lead spacing (0.197" / 5.00 mm), diameter (0.492" / 12.50 mm), and height (0.984" / 25.00 mm). No PCB modifications are required for substitution.

Q: What is the product status difference?

A: The KXG450VB15RM12X25LL is obsolete and no longer manufactured. The EEU-ED2W150 is an active product with ongoing manufacturing and supply availability.

Q: Are the operating temperature ranges the same?

A: Yes. Both parts operate across the identical temperature range of -25°C to 105°C with a rated lifetime of 10,000 hours at 105°C.
