KUSBX-SMT2AP5S-W USB-A Plug Connector Equivalent & Substitute Parts

Part Overview

The KUSBX-SMT2AP5S-W is an active USB-A (USB TYPE-A) plug connector manufactured by Kycon, Inc., designed for surface mount and through-hole applications with right-angle mounting. This shielded 4-position connector operates across -55°C to 85°C with a 1A current rating and 30VAC voltage specification. The part is RoHS compliant with UL94 V-0 flammability rating and features gold-plated contacts on a copper alloy shell. Equivalent and substitute parts are identified based on matching electrical specifications, mechanical mounting characteristics, and compliance certifications to support component sourcing flexibility.

Key Parameters

Parameter	Value
Connector Type	USB-A (USB TYPE-A)
Number of Contacts	4
Gender	Plug
Mounting Type	Surface Mount, Right Angle; Through Hole
Mounting Feature	Horizontal
Current Rating	1A
Voltage - Rated	30VAC
Operating Temperature	-55°C ~ 85°C
Shielding	Shielded
Contact Finish	Gold
Shell/Shielding Material	Copper Alloy
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Moisture Sensitivity Level	1 (Unlimited)

Substitute Part Grouping Explanation

Substitute parts for the KUSBX-SMT2AP5S-W are qualified based on strict electrical and mechanical parameter matching within the KUSBX-SMT series. All substitute parts maintain identical specifications across the following critical parameters:

Connector Type: USB-A (USB TYPE-A)
Number of Contacts: 4
Gender: Plug
Mounting Type: Surface Mount, Right Angle; Through Hole
Mounting Feature: Horizontal
Termination: Solder
Current Rating: 1A
Voltage - Rated: 30VAC
Operating Temperature: -55°C ~ 85°C
Shielding: Shielded
Contact Finish: Gold
Shell/Shielding Material: Copper Alloy
Material Flammability Rating: UL94 V-0
Base Product Number: KUSBX
Moisture Sensitivity Level: 1 (Unlimited)

Substitute parts differ only in insulation color (White or Black) and RoHS compliance variant (RoHS Compliant or ROHS3 Compliant). These variations do not affect electrical or mechanical interchangeability.

Parameter Comparison

Part Number	Manufacturer	Insulation Color	RoHS Status	Current Rating (A)	Voltage - Rated (VAC)	Operating Temperature (°C)	Contact Finish	Shielding	Inventory (Pcs)
KUSBX-SMT2AP5S-W	Kycon, Inc.	White	RoHS Compliant	1	30	-55 ~ 85	Gold	Shielded	883
KUSBX-SMT2AP1S-B	Kycon, Inc.	Black	ROHS3 Compliant	1	30	-55 ~ 85	Gold	Shielded	1234
KUSBX-SMT2AP1S-B30	Kycon, Inc.	Black	ROHS3 Compliant	1	30	-55 ~ 85	Gold	Shielded	1250

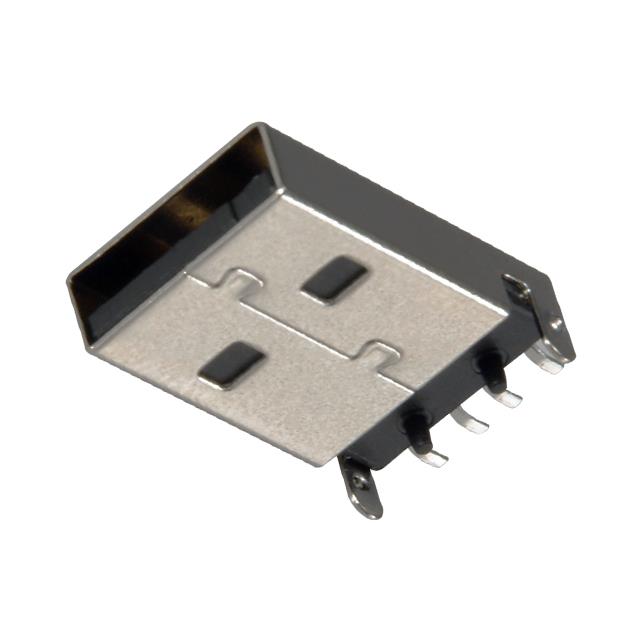

KUSBX-SMT2AP1S-W	Kycon, Inc.	White	ROHS3 Compliant	1	30	-55 ~ 85	Gold	Shielded	1401
KUSBX-SMT2AP1S-W30	Kycon, Inc.	White	ROHS3 Compliant	1	30	-55 ~ 85	Gold	Shielded	1632
KUSBX-SMT2AP5S-B	Kycon, Inc.	Black	ROHS3 Compliant	1	30	-55 ~ 85	Gold	Shielded	9954

Engineering Selection Recommendations

All substitute parts listed maintain active product status and are manufactured by Kycon, Inc. within the KUSBX-SMT series. Selection between the main part KUSBX-SMT2AP5S-W and substitute parts should be based on:

Compliance Requirements: The main part carries RoHS Compliant status. Substitute parts KUSBX-SMT2AP1S-B, KUSBX-SMT2AP1S-B30, KUSBX-SMT2AP1S-W, KUSBX-SMT2AP1S-W30, and KUSBX-SMT2AP5S-B carry ROHS3 Compliant status with REACH Unaffected designation. Applications requiring specific RoHS compliance variants should reference the applicable regulatory requirements.

Insulation Color: The main part features white insulation. Black insulation variants (KUSBX-SMT2AP1S-B, KUSBX-SMT2AP1S-B30, KUSBX-SMT2AP5S-B) are available for applications requiring color differentiation or aesthetic specifications.

Inventory Availability: Substitute parts demonstrate varying stock levels. KUSBX-SMT2AP5S-B offers the highest inventory at 9954 pieces, while KUSBX-SMT2AP5S-W (main part) maintains 883 pieces.

Frequently Asked Questions (FAQ)

Q: Are all listed substitute parts electrically interchangeable with KUSBX-SMT2AP5S-W?

A: Yes. All substitute parts maintain identical electrical specifications including 1A current rating, 30VAC voltage rating, 4-position contact configuration, and gold-plated contact finish. Electrical interchangeability is confirmed across the complete parameter set.

Q: What is the difference between RoHS Compliant and ROHS3 Compliant status?

A: RoHS Compliant refers to the original Restriction of Hazardous Substances directive compliance. ROHS3 Compliant indicates compliance with the updated RoHS 3 directive (2011/65/EU as amended by 2015/863/EU). Applications subject to specific regulatory frameworks should confirm which compliance variant is required.

Q: Can I substitute a black insulation part for the white insulation main part?

A: Mechanically and electrically, yes. Black insulation variants (KUSBX-SMT2AP1S-B, KUSBX-SMT2AP1S-B30, KUSBX-SMT2AP5S-B) are fully compatible. However, if white insulation is specified for visual identification or design requirements, black variants should not be used without design review.

Q: Are there any differences in mounting or mechanical fit between substitute parts?

A: No. All parts share identical mounting specifications: surface mount with right-angle configuration, through-hole capability, and horizontal mounting feature. Mechanical fit and PCB layout compatibility are equivalent across all listed parts.

Q: Which substitute part should I select for maximum inventory availability?

A: KUSBX-SMT2AP5S-B offers the highest current inventory at 9954 pieces. This part is electrically and mechanically equivalent to the main part, with the only difference being black insulation color and ROHS3 compliance status.
