KUSBVX-AS2N-B30-1 Equivalent & Substitute Parts

Part Overview

The KUSBVX-AS2N-B30-1 is a dual vertical mount USB-A stacked receptacle connector manufactured by Kycon, Inc. This 8-position through-hole connector is designed for applications requiring dual USB-A ports in a compact vertical configuration. The part is currently active in production with 1107 units in stock. Equivalent and substitute parts are identified when design requirements necessitate alternative sourcing, inventory constraints, or specific compliance certifications.

Substiute Parts

KUSBVX-AS2N-B30-1

Kycon, Inc.In Stock: 1117KUSBVX-AS2N-B30-1 Datasheet

Current PartRFQ

KUSBVX-AS2N-B-1

Kycon, Inc.In Stock: 7306KUSBVX-AS2N-B-1 Datasheet

Parametric EquivalentRFQ

KUSBVX-AS2N-W-1

Kycon, Inc.In Stock: 9046KUSBVX-AS2N-W-1 Datasheet

Parametric EquivalentRFQ

614008235023

Würth ElektronikIn Stock: 6260614008235023 Datasheet

Parametric EquivalentRFQ

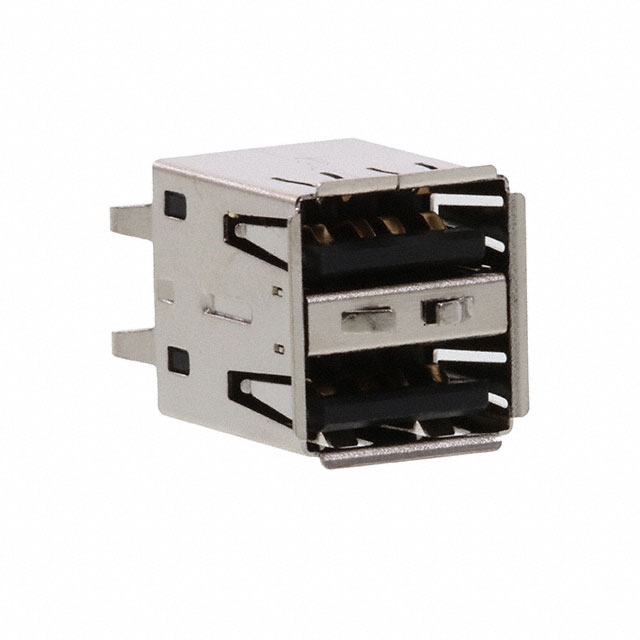

USB-A-D-VT

Adam TechIn Stock: 6432USB-A-D-VT Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the KUSBVX-AS2N-B30-1 are qualified based on the following critical parameters that must remain constant across all equivalents:

• Connector Type: USB-A (USB TYPE-A), Stacked
• Number of Contacts: 8
• Gender: Receptacle
• Mounting Type: Through Hole
• Mounting Feature: Vertical
• Number of Ports: 2
• Shielding: Shielded
• Contact Finish: Gold
• Material Flammability Rating: UL94 V-0
• Voltage - Rated: 30VAC
• Current Rating: 1A (minimum)
• Mating Cycles: 1500 (minimum)

Substitutes are grouped into two categories: direct Kycon equivalents with identical specifications, and cross-manufacturer alternatives that meet or exceed the electrical and mechanical requirements while maintaining form factor compatibility.

Parameter Comparison

Engineering Selection Recommendations

Kycon KUSBVX-AS2N-B-1: Direct equivalent to the main part with identical electrical and mechanical specifications. Offers higher inventory availability (7227 units). ROHS3 compliance provides enhanced regulatory coverage. Recommended for direct replacement when black insulation color is required.

Kycon KUSBVX-AS2N-W-1: Kycon equivalent with white insulation color variant. Maintains all electrical and mechanical specifications of the main part. ROHS3 compliant. Highest inventory availability (8947 units). Suitable for applications where insulation color differentiation is required for circuit board assembly or identification purposes.

Würth Elektronik 614008235023: Cross-manufacturer equivalent from WR-COM series. Exceeds current rating specification (1.5A vs. 1A) and extends operating temperature range (-40°C ~ 105°C). ROHS3 and REACH compliant. Brass shell material maintains electromagnetic shielding characteristics. Recommended for applications requiring enhanced thermal performance or higher current capacity.

Adam Tech USB-A-D-VT: Cross-manufacturer alternative with identical electrical specifications. Steel shell material provides alternative shielding construction. ROHS3 and REACH compliant. Mating cycle specification not provided. Black insulation color matches main part. Suitable for applications where alternative shell material construction is acceptable.

Frequently Asked Questions (FAQ)

Q: Can KUSBVX-AS2N-B-1 be used as a direct replacement for KUSBVX-AS2N-B30-1?

A: Yes. Both parts share identical connector type, contact count, mounting configuration, electrical ratings, and flammability classification. The primary difference is enhanced RoHS3 compliance on the substitute part.

Q: What is the significance of insulation color differences between substitute parts?

A: Insulation color (black vs. white) is a visual identifier used during assembly and troubleshooting. It does not affect electrical or mechanical performance. Selection depends on circuit board assembly documentation or color-coding requirements.

Q: Does the Würth Elektronik 614008235023 provide performance advantages?

A: The Würth part offers higher current rating (1.5A vs. 1A) and extended operating temperature range (-40°C ~ 105°C vs. -55°C ~ 85°C). These specifications exceed the main part requirements and provide design margin for applications with thermal or current density concerns.

Q: Are all substitute parts through-hole mounted with vertical orientation?

A: Yes. All listed substitutes maintain through-hole mounting with vertical orientation, ensuring PCB footprint compatibility with the main part.

Q: What compliance certifications are common across all parts?

A: All parts are UL94 V-0 flammable material rated, shielded, gold-plated, and ROHS3 compliant. The main part carries RoHS Compliant status while substitutes carry ROHS3 Compliant status. All cross-manufacturer substitutes include REACH Unaffected designation.

Q: Is mating cycle specification critical for substitute selection?

A: The main part and most substitutes specify 1500 mating cycles. The Adam Tech USB-A-D-VT does not provide this specification. For applications with defined mating cycle requirements, this should be confirmed with the manufacturer before selection.

Q: Can shell material differences affect connector performance?

A: Shell material (brass vs. steel) affects electromagnetic shielding characteristics and mechanical durability. Both materials are acceptable for USB-A applications. Brass provides superior corrosion resistance; steel offers alternative construction. Selection depends on environmental exposure and shielding requirements.
