KAJ06TGGT DIP Switch Equivalent & Substitute Parts

Part Overview

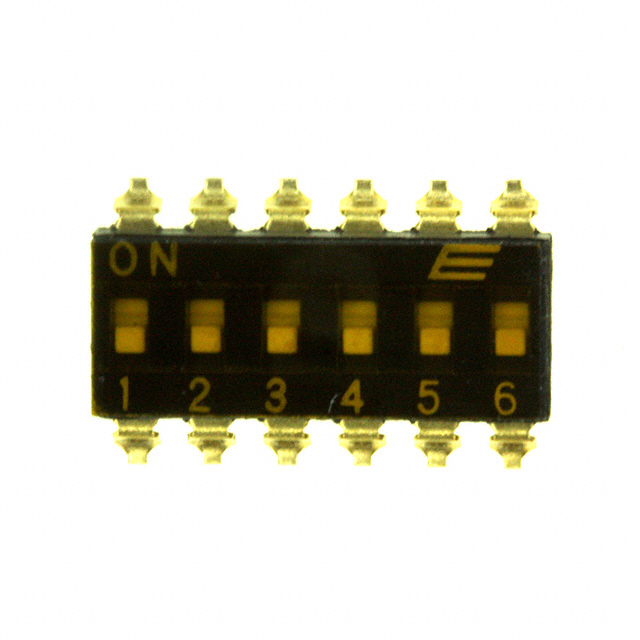

The KAJ06TGGT is a 6-position surface mount DIP switch manufactured by E-Switch, configured as a single-pole single-throw (SPST) switch rated for 25mA at 24VDC. This component features a slide actuator with gold-plated copper alloy contacts and is designed for applications requiring reliable switching in compact form factors.

The KAJ06TGGT is classified as obsolete. Locating equivalent substitute parts is necessary to maintain design continuity, ensure supply chain availability, and support ongoing production or maintenance requirements for systems utilizing this component.

Key Parameters

Parameter	Value
Circuit Configuration	SPST
Number of Positions	6
Current Rating	25mA
Voltage Rating	24VDC
Actuator Type	Slide (Standard)
Mounting Type	Surface Mount
Termination Style	Gull Wing
Pitch	0.100" (2.54mm)
Contact Material	Copper Alloy with Gold Finish
Body Material	Polyphenylene Sulfide (PPS)
RoHS Status	ROHS3 Compliant

Substitute Part Grouping Explanation

Substitution eligibility for the KAJ06TGGT is determined by strict equivalence across the following critical parameters:

Circuit configuration (SPST)
Number of positions (6)
Current rating (25mA minimum)
Voltage rating (24VDC)
Actuator type (Slide, Standard)
Mounting type (Surface Mount)
Termination style (Gull Wing)
Pitch spacing (0.100" / 2.54mm)
Contact material and finish (Copper Alloy, Gold)
Body material (Polyphenylene Sulfide)
Regulatory compliance (ROHS3, REACH Unaffected)

The substitute part 1-1825006-1 (TE Connectivity ALCOSWITCH Switches) meets all mandatory electrical and mechanical parameters required for direct substitution in applications designed for the KAJ06TGGT.

Parameter Comparison

Parameter	KAJ06TGGT (E-Switch)	1-1825006-1 (TE Connectivity)
Circuit Configuration	SPST	SPST
Number of Positions	6	6
Current Rating (Amps)	25mA	25mA
Voltage Rating	24VDC	24VDC
Actuator Type	Slide (Standard)	Slide (Standard)
Actuator Level	Flush, Recessed	Flush, Recessed
Contact Material	Copper Alloy	Copper Alloy
Contact Finish	Gold	Gold
Mounting Type	Surface Mount	Surface Mount
Termination Style	Gull Wing	Gull Wing
Pitch	0.100" (2.54mm)	0.100" (2.54mm)
Body Material	Polyphenylene Sulfide (PPS)	Polyphenylene Sulfide (PPS)
Washable	Yes	Yes
Features	Tape Seal	Tape Seal
RoHS Status	ROHS3 Compliant	ROHS3 Compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)	1 (Unlimited)
REACH Status	REACH Unaffected	REACH Unaffected
ECCN	EAR99	EAR99
Product Status	Obsolete	Active
Height Above Board	0.140" (4.65mm)	0.114" (2.90mm)
Length	0.600" (15.24mm)	0.594" (15.09mm)
Mechanical Life	2,000 Cycles	1,000 Cycles
Electrical Life	2,000 Cycles	1,000 Cycles
Operating Temperature Range	-40°C ~ 85°C	-30°C ~ 85°C

Engineering Selection Recommendations

The 1-1825006-1 from TE Connectivity ALCOSWITCH Switches is a qualified substitute for the obsolete KAJ06TGGT. Both components satisfy identical electrical specifications (SPST, 6-position, 25mA, 24VDC) and mechanical requirements (surface mount, gull wing termination, 0.100" pitch).

The substitute part carries active product status, ensuring ongoing availability and supply chain support. Both components maintain ROHS3 compliance and REACH unaffected status, meeting current regulatory requirements.

Physical dimensions show minor variations: the TE Connectivity part is slightly lower in profile (0.114" vs. 0.140") and marginally shorter in length (0.594" vs. 0.600"), which may provide layout advantages in space-constrained applications. The substitute part specifies 1,000 mechanical and electrical cycles compared to 2,000 cycles for the original; operating temperature range is -30°C to 85°C versus -40°C to 85°C for the KAJ06TGGT.

Selection of the 1-1825006-1 is appropriate for applications where the specified cycle life and temperature range are compatible with system requirements.

Frequently Asked Questions (FAQ)

Q: Can the 1-1825006-1 be used as a direct replacement for the KAJ06TGGT in existing designs?

A: Yes. Both components share identical electrical ratings (SPST, 6-position, 25mA, 24VDC), actuator type (slide standard), mounting configuration (surface mount), and termination style (gull wing). Physical dimensions are within acceptable tolerance for PCB footprints designed for the KAJ06TGGT.

Q: What are the key differences between these two parts?

A: The primary differences are product status (KAJ06TGGT is obsolete; 1-1825006-1 is active), mechanical/electrical cycle life (2,000 vs. 1,000 cycles), operating temperature range (-40°C to 85°C vs. -30°C to 85°C), and minor physical dimensions. The substitute part is slightly lower in profile and shorter in length.

Q: Are there any compliance or certification differences?

A: No. Both components are ROHS3 compliant, REACH unaffected, and carry identical ECCN and HTSUS classifications.

Q: What packaging is available for the substitute part?

A: The 1-1825006-1 is supplied in tube packaging, with 13,107 pieces currently in stock.

Q: Should cycle life differences affect my component selection?

A: Cycle life specifications should be evaluated against your application's switching frequency and expected operational lifetime. The substitute part's 1,000-cycle rating is appropriate for applications with moderate switching demands. High-frequency switching applications should confirm compatibility with this specification.

Q: Are there temperature range considerations for my application?

A: The substitute part operates from -30°C to 85°C, compared to the original part's -40°C to 85°C range. Applications requiring operation below -30°C should confirm compatibility or consider alternative solutions.
