JR25WCC-18 Equivalent & Substitute Parts

Part Overview

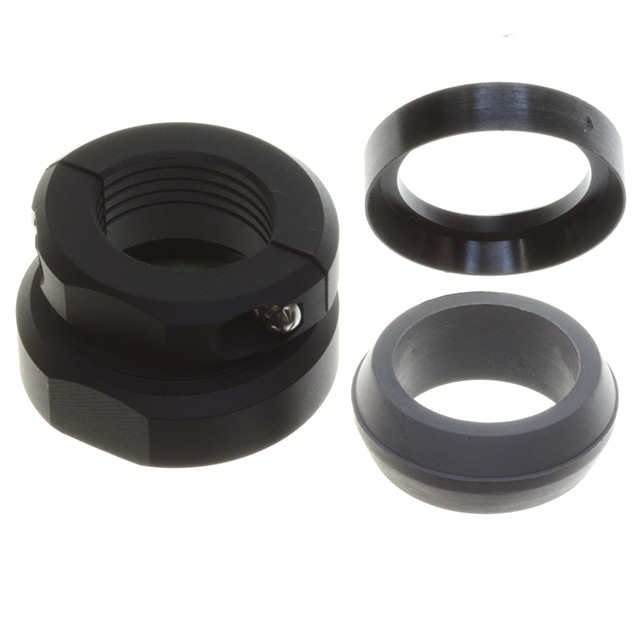

The JR25WCC-18 is a circular connector cable clamp manufactured by Hirose Electric Co Ltd, classified as a Size 25 connector component. This black aluminum alloy cable clamp with M28x0.75 thread accommodates 0.709" (18.00mm) cable openings and provides IP67 ingress protection. The main part is currently listed as obsolete, making identification of active equivalent components essential for ongoing system maintenance and new procurement requirements.

Substiute Parts

JR25WCC-18

Hirose Electric Co LtdIn Stock: 701JR25WCC-18 Datasheet

Current PartRFQ

JR25WCC-18(71)

Hirose Electric Co LtdIn Stock: 773JR25WCC-18(71) Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the JR25WCC-18 is determined by strict equivalence across the following critical parameters:

• Shell Size - Insert: 25
• Cable Opening: 0.709" (18.00mm)
• Thread Size: M28x0.75
• Cable Exit: 180°
• Ingress Protection: IP67
• Material composition: Aluminum Alloy, Brass, Zinc Alloy
• Plating: Chrome
• Color: Black
• Included components: Cable Clamp, Gasket, Screws, Washer

The substitute part JR25WCC-18(71) maintains identical electrical and mechanical specifications across all critical parameters. The primary distinction is product status: the original JR25WCC-18 is obsolete, while JR25WCC-18(71) is active and currently in production.

Parameter Comparison

Engineering Selection Recommendations

The JR25WCC-18(71) is the direct active equivalent for the obsolete JR25WCC-18. Both components are manufactured by Hirose Electric Co Ltd and maintain identical mechanical and electrical specifications across all critical parameters including shell size, cable opening, thread size, and ingress protection rating.

The primary advantage of JR25WCC-18(71) is its active product status and RoHS compliance. The substitute part is currently in production with confirmed inventory availability (739 pcs), whereas the original part is obsolete with limited remaining stock (620 pcs). For new designs and ongoing procurement, JR25WCC-18(71) is the specified selection.

Both parts are classified under ECCN EAR99 and HTSUS 8538.90.8180, with identical REACH and MSL ratings. The packaging difference (bag format for the substitute) does not affect functional compatibility or performance characteristics.

Frequently Asked Questions (FAQ)

Q: Can JR25WCC-18(71) be used as a direct replacement for JR25WCC-18?

A: Yes. Both parts are manufactured by Hirose Electric Co Ltd and maintain identical specifications for cable opening (0.709"/18.00mm), thread size (M28x0.75), shell size (25), and ingress protection (IP67). All mechanical and electrical parameters are equivalent.

Q: What is the difference between JR25WCC-18 and JR25WCC-18(71)?

A: The primary differences are product status and compliance. JR25WCC-18 is obsolete and RoHS non-compliant, while JR25WCC-18(71) is active and RoHS compliant. Mechanical and electrical specifications are identical. JR25WCC-18(71) is supplied in bag packaging.

Q: Why is the original JR25WCC-18 listed as obsolete?

A: Product obsolescence is determined by the manufacturer. The active equivalent JR25WCC-18(71) provides identical functionality and is the current production part for this cable clamp configuration.

Q: Are there any compatibility concerns when substituting JR25WCC-18(71) for JR25WCC-18?

A: No compatibility concerns exist. Both parts are designed for use with JR-W Series Plugs and maintain identical dimensional, material, and performance specifications. The substitute part is fully compatible with existing JR-W Series connector systems.

Q: What does the "(71)" designation indicate in JR25WCC-18(71)?

A: The "(71)" suffix indicates a specific manufacturing variant or revision code assigned by Hirose Electric Co Ltd. This variant maintains full compatibility with the base JR25WCC specification while incorporating RoHS compliance and active production status.

Q: Is RoHS compliance a functional difference?

A: RoHS compliance affects material composition and environmental regulations but does not alter the functional performance of the cable clamp. Both parts meet identical electrical and mechanical specifications for connector applications.
