JR16WR-10PC(71) Equivalent & Substitute Parts

Part Overview

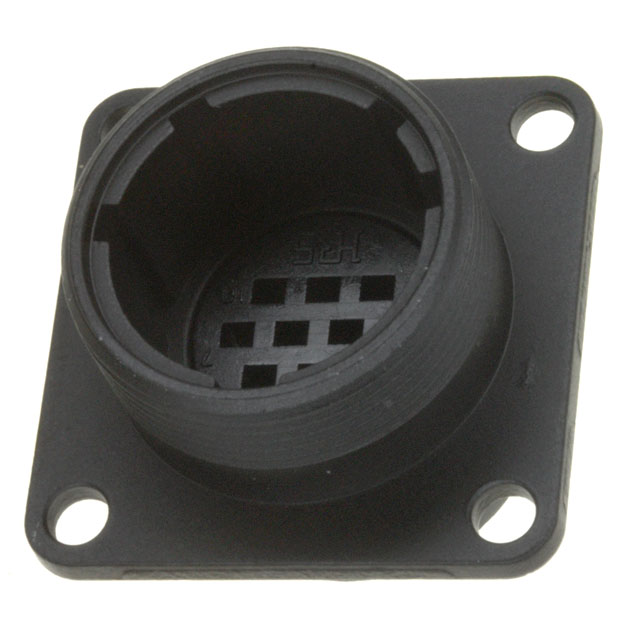

The JR16WR-10PC(71) is a 10-position circular connector receptacle housing designed for panel mount applications with male pin compatibility. Manufactured by Hirose Electric Co Ltd, this connector features a threaded fastening mechanism, keyed orientation, and IP67/IP68 ingress protection rating suitable for dust-tight and waterproof environments.

The JR16WR-10PC(71) carries an obsolete product status. Identifying equivalent substitute parts ensures continued availability for maintenance, repair, and new design implementations where this connector type is specified.

Substiute Parts

JR16WR-10PC(71)

Hirose Electric Co LtdIn Stock: 934JR16WR-10PC(71) Datasheet

Current PartRFQ

JR16WR-10PC(31)

Hirose Electric Co LtdIn Stock: 711JR16WR-10PC(31) Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the JR16WR-10PC(71) is determined by strict equivalence across the following critical parameters:

• Manufacturer & Series: Both parts must originate from Hirose Electric Co Ltd within the JR-W series
• Connector Configuration: 10-position receptacle housing for male pins
• Shell Specifications: Shell size 16 with aluminum alloy construction and chrome finish
• Electrical & Mechanical Interface: 1.0mm crimp contacts, keyed orientation, threaded fastening
• Environmental Rating: IP67/IP68 ingress protection and UL94 V-0 flammability compliance
• Physical Mounting: Panel mount with flange feature and black housing color
• Material Composition: Polycarbonate insert material

The substitute part JR16WR-10PC(31) maintains identical specifications across all these parameters, differing only in packaging configuration and product status classification.

Parameter Comparison

Engineering Selection Recommendations

The JR16WR-10PC(31) is the direct substitute for the obsolete JR16WR-10PC(71). Both connectors share identical electrical, mechanical, and environmental specifications within the JR-W series from Hirose Electric Co Ltd.

The JR16WR-10PC(31) carries active product status, ensuring ongoing manufacturer support and availability. This part is ROHS3 compliant and REACH affected, meeting current regulatory requirements for new designs and production environments.

For applications currently specified with JR16WR-10PC(71), direct substitution with JR16WR-10PC(31) maintains full functional and physical compatibility without design modification.

Frequently Asked Questions (FAQ)

Q: Can JR16WR-10PC(31) replace JR16WR-10PC(71) in existing assemblies?

A: Yes. Both parts are functionally and mechanically identical. The JR16WR-10PC(31) maintains the same 10-position configuration, shell size 16, crimp contact interface, panel mount flange, threaded fastening, and IP67/IP68 environmental rating. Existing mating connectors and cable assemblies are compatible without modification.

Q: What is the difference between these two part numbers?

A: The primary differences are product status and packaging. JR16WR-10PC(71) is classified as obsolete, while JR16WR-10PC(31) is active. JR16WR-10PC(31) is supplied in bulk packaging and includes ROHS3 compliance and REACH status documentation. All functional and physical parameters remain identical.

Q: Are there any compliance differences between these parts?

A: Both parts meet UL94 V-0 flammability requirements and carry EAR99 export classification. JR16WR-10PC(31) explicitly documents ROHS3 compliance and REACH affected status, reflecting current regulatory standards. Both operate across the -25°C to 85°C temperature range with MSL 1 (unlimited) moisture sensitivity.

Q: Can I use these connectors in IP67/IP68 rated applications?

A: Yes. Both JR16WR-10PC(71) and JR16WR-10PC(31) are rated for IP67/IP68 ingress protection, providing dust-tight and waterproof performance. The aluminum alloy shell with chrome finish and keyed orientation support these environmental ratings.

Q: What contact specifications apply to these connectors?

A: Both connectors use 1.0mm crimp contacts in a circular contact shape. Contacts are not included with the receptacle housing and must be ordered separately. The crimp contact type requires proper termination tooling for cable assembly.
