JR16WP-3PC(71) Equivalent & Substitute Parts

Part Overview

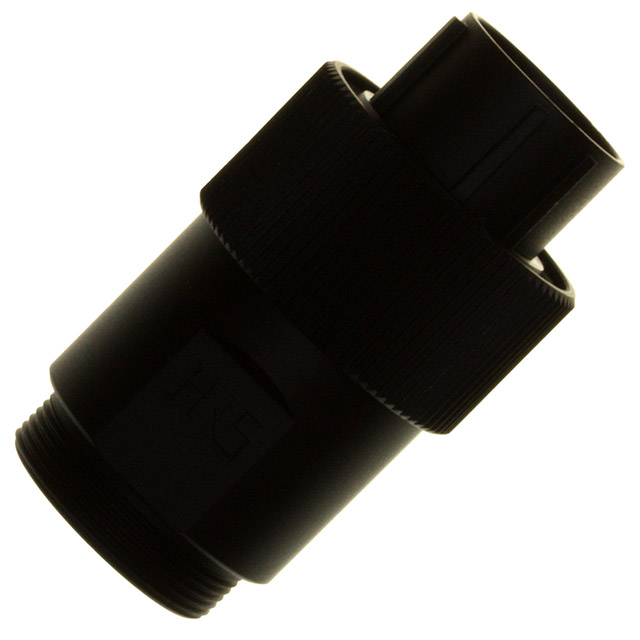

The JR16WP-3PC(71) is a 3-position circular connector plug housing manufactured by Hirose Electric Co Ltd, designed for free hanging (in-line) applications with threaded coupling and backshell features. This connector operates across -25°C to 85°C and meets IP67/IP68 ingress protection standards with UL94 V-0 flammability rating.

The JR16WP-3PC(71) is classified as obsolete. Identifying equivalent substitute parts is necessary to maintain system compatibility, ensure continued availability, and support ongoing production or maintenance requirements where original components are no longer readily procurable.

Substiute Parts

JR16WP-3PC(71)

Hirose Electric Co LtdIn Stock: 935JR16WP-3PC(71) Datasheet

Current PartRFQ

C091 11H003 000 2

Amphenol Tuchel IndustrialIn Stock: 1132C091 11H003 000 2 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the JR16WP-3PC(71) is determined by the following critical parameters:

Functional Compatibility Parameters:

• Connector type (plug housing for male pins)
• Number of positions (3)
• Mounting configuration (free hanging, in-line)
• Fastening mechanism (threaded coupling)
• Orientation (keyed)
• Contact type (crimp)

Environmental & Compliance Parameters:

• Ingress protection rating (minimum IP67)
• Operating temperature range (must encompass or exceed -25°C to 85°C)
• Material flammability rating (UL94 V-0)
• Moisture sensitivity level (MSL 1)

The substitute part C091 11H003 000 2 maintains functional compatibility across all critical parameters while offering enhanced environmental protection (IP65/IP67/IP69K) and extended operating temperature range (-40°C to 100°C).

Parameter Comparison

Engineering Selection Recommendations

The C091 11H003 000 2 is the manufacturer-recommended substitute for the JR16WP-3PC(71). Selection of this substitute is supported by:

Product Status: The JR16WP-3PC(71) is obsolete, while C091 11H003 000 2 maintains active production status, ensuring long-term availability and supply chain continuity.

Compliance & Certifications: Both parts meet UL94 V-0 flammability requirements and carry identical ECCN and HTSUS classifications, confirming regulatory equivalence. The substitute achieves RoHS3 compliance and REACH unaffected status.

Environmental Performance: The substitute provides enhanced ingress protection (IP65/IP67/IP69K versus IP67/IP68) and extended operating temperature range (-40°C to 100°C versus -25°C to 85°C), supporting broader application scenarios while maintaining full backward compatibility with the original specification.

Functional Equivalence: Both connectors maintain identical connector type, pin configuration, mounting method, and fastening mechanism, ensuring direct functional substitution without system redesign.

Frequently Asked Questions (FAQ)

Q: Can C091 11H003 000 2 directly replace JR16WP-3PC(71) in existing assemblies?

A: Yes. Both connectors share identical functional parameters: 3-position plug housing for male pins, free hanging in-line mounting, threaded coupling, and keyed orientation. The substitute maintains full mechanical and electrical compatibility.

Q: What are the key differences between these connectors?

A: The primary differences are shell material (aluminum alloy versus die cast), shell finish (chrome versus nickel), and housing color (black versus silver). The substitute offers enhanced ingress protection (IP69K capability) and extended operating temperature range. Contact size differs slightly (1.6mm versus 1.5mm), requiring verification of mating contact compatibility.

Q: Are there compliance or certification concerns with substitution?

A: No. Both parts carry identical ECCN (EAR99) and HTSUS (8538.90.8180) classifications. The substitute additionally provides RoHS3 compliance and REACH unaffected status, meeting current regulatory requirements.

Q: What packaging considerations apply to the substitute?

A: C091 11H003 000 2 is supplied in bulk packaging and includes 10 pieces per unit, with each connector supplied with backshell, cable clamp (2 pcs), cable nut, gasket, screws (2 pcs), and washers (2 pcs). The original JR16WP-3PC(71) does not include contacts; verify that mating contacts are sourced separately for both parts.

Q: Does the substitute support the same environmental conditions?

A: Yes, with enhanced capability. The substitute operates across -40°C to 100°C (versus -25°C to 85°C for the original) and achieves IP65/IP67/IP69K ingress protection (versus IP67/IP68), providing broader environmental tolerance while maintaining full compatibility with the original specification range.
