JR16WP-10SC(71) Equivalent & Substitute Parts

Part Overview

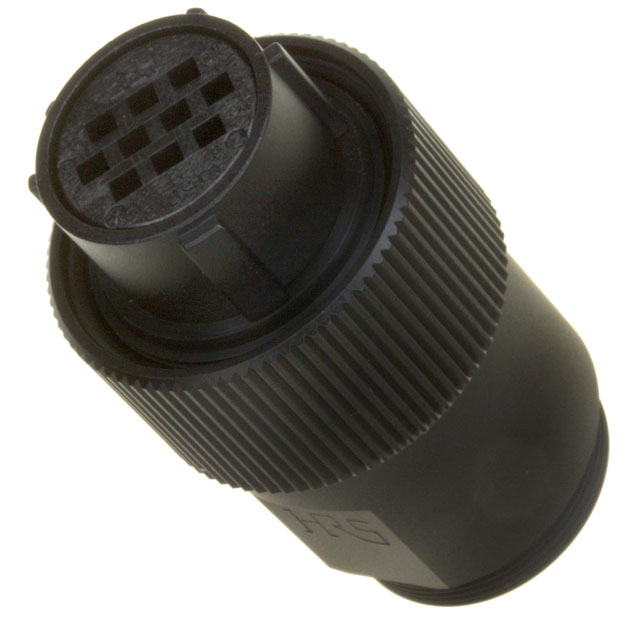

The JR16WP-10SC(71) is a 10-position circular connector plug housing manufactured by Hirose Electric Co Ltd, designed for free-hanging inline applications with female socket compatibility. This component features a threaded coupling nut, aluminum alloy shell with chrome finish, and IP67/IP68 ingress protection rating suitable for dust-tight and waterproof environments.

The JR16WP-10SC(71) carries an obsolete product status. Identifying equivalent and substitute parts is necessary to maintain design continuity, ensure supply chain availability, and support ongoing production or maintenance requirements for systems utilizing this connector housing.

Substiute Parts

JR16WP-10SC(71)

Hirose Electric Co LtdIn Stock: 773JR16WP-10SC(71) Datasheet

Current PartRFQ

JR16WP-10SC(31)

Hirose Electric Co LtdIn Stock: 741JR16WP-10SC(31) Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the JR16WP-10SC(71) is determined by strict equivalence across the following critical parameters:

• Number of Positions: 10
• Shell Size - Insert: 16
• Connector Type: Plug Housing
• Type: For Female Sockets
• Contact Type: Crimp
• Contact Size: 1.0mm
• Mounting Type: Free Hanging (In-Line)
• Fastening Type: Threaded
• Orientation: Keyed
• Shell Material: Aluminum Alloy
• Shell Finish: Chrome
• Housing Color: Black
• Ingress Protection: IP67/IP68 - Dust Tight, Waterproof
• Material Flammability Rating: UL94 V-0
• Features: Backshell, Coupling Nut
• Shielding: Unshielded
• Insert Material: Polycarbonate (PC)
• Contact Shape: Circular
• Operating Temperature: -25°C ~ 85°C
• Base Product Number: JR16WP

The substitute part JR16WP-10SC(31) meets all these criteria and is manufactured by the same supplier, Hirose Electric Co Ltd, within the same JR-W series.

Parameter Comparison

Engineering Selection Recommendations

The JR16WP-10SC(31) is the direct substitute for the obsolete JR16WP-10SC(71). Both components share identical electrical and mechanical specifications across all critical parameters, ensuring functional and physical compatibility.

The JR16WP-10SC(31) carries an active product status, providing assured long-term availability and supply chain continuity. This part is ROHS3 compliant and REACH affected, meeting current regulatory requirements for electronic component manufacturing and distribution.

Selection of JR16WP-10SC(31) eliminates obsolescence risk while maintaining full design compatibility with existing systems specified for JR16WP-10SC(71).

Frequently Asked Questions (FAQ)

Q: Are JR16WP-10SC(71) and JR16WP-10SC(31) mechanically interchangeable?

A: Yes. Both components share identical mechanical specifications including shell size, mounting type, fastening mechanism, and housing dimensions. Direct substitution is supported without design modification.

Q: What is the difference between the two part numbers?

A: The primary difference is product status. JR16WP-10SC(71) is obsolete, while JR16WP-10SC(31) is active. The suffix designation (71 versus 31) reflects packaging or manufacturing revision codes. Electrical and mechanical performance are equivalent.

Q: Does JR16WP-10SC(31) meet current regulatory standards?

A: Yes. JR16WP-10SC(31) is ROHS3 compliant and REACH affected, meeting current regulatory requirements for electronic components in regulated markets.

Q: Can I use JR16WP-10SC(31) in applications originally designed for JR16WP-10SC(71)?

A: Yes. Full substitution is supported. The components are electrically and mechanically equivalent across all specified parameters, including contact configuration, ingress protection rating, operating temperature range, and flammability rating.

Q: What is the packaging difference?

A: JR16WP-10SC(71) packaging is not specified in available documentation. JR16WP-10SC(31) is supplied in bulk packaging. Confirm packaging requirements with your procurement specification before ordering.
