JR13WP-5P(71) Equivalent & Substitute Parts

Part Overview

The JR13WP-5P(71) is a 5-position circular connector plug with male pins and solder cup termination, manufactured by Hirose Electric Co Ltd. This connector is designed for applications requiring IP67/IP68 ingress protection in automotive, industrial, and telecommunications environments. The part is currently obsolete, making identification of compatible substitutes essential for ongoing system maintenance and component sourcing.

Substiute Parts

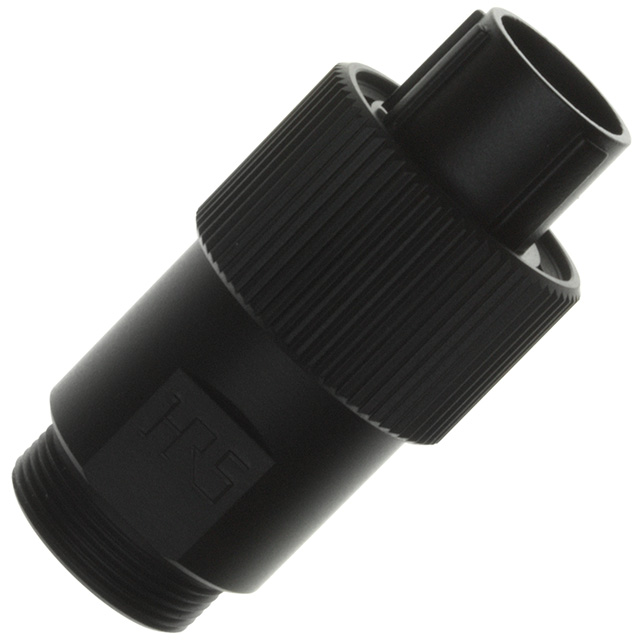

JR13WP-5P(71)

Hirose Electric Co LtdIn Stock: 764JR13WP-5P(71) Datasheet

Current PartRFQ

JR13WP-5P(31)

Hirose Electric Co LtdIn Stock: 1192JR13WP-5P(31) Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

The JR13WP-5P(31) qualifies as a direct substitute for the JR13WP-5P(71) based on the following critical parameters:

• Connector Type & Configuration: Both are 5-position male plug connectors with identical shell size (13) and keyed orientation
• Electrical Specifications: Matching current rating (5A) and voltage rating (100VAC, 140VDC)
• Mechanical Compatibility: Identical termination method (solder cup), fastening type (threaded), and mounting configuration (free hanging, in-line)
• Environmental Protection: Both maintain IP67/IP68 ingress protection rating
• Material & Finish Specifications: Identical aluminum alloy shell with black chromium finish, silver contact finish, and copper alloy contact material
• Thermal Performance: Matching operating temperature range (-25°C ~ 85°C)
• Safety Compliance: Both meet UL94 V-0 flammability rating

The primary difference is product status: JR13WP-5P(71) is obsolete while JR13WP-5P(31) is active, with improved compliance documentation (RoHS3 compliant, REACH affected).

Parameter Comparison

Engineering Selection Recommendations

The JR13WP-5P(31) is the appropriate substitute for the obsolete JR13WP-5P(71). Both connectors share identical electrical, mechanical, and environmental specifications, ensuring direct functional compatibility in existing applications.

The JR13WP-5P(31) offers the advantage of active product status with documented RoHS3 compliance and REACH compliance status, making it suitable for new designs and systems requiring current regulatory adherence. The connector maintains all critical performance parameters including the 5A current rating, 100VAC/140VDC voltage rating, IP67/IP68 protection, and UL94 V-0 flammability rating.

For applications currently using the JR13WP-5P(71), transition to JR13WP-5P(31) requires no design modifications, as all mating dimensions, pin configurations, and electrical characteristics remain identical.

Frequently Asked Questions (FAQ)

Q: Can JR13WP-5P(31) directly replace JR13WP-5P(71) without design changes?

A: Yes. Both connectors are mechanically and electrically identical. The JR13WP-5P(31) maintains the same 5-position configuration, shell size 13, solder cup termination, and all electrical ratings. No PCB or assembly modifications are required.

Q: What is the primary reason for substitution?

A: The JR13WP-5P(71) is obsolete. The JR13WP-5P(31) is the active equivalent from the same manufacturer and series, ensuring continued availability and support.

Q: Are there packaging differences between these parts?

A: The JR13WP-5P(71) is specified with standard packaging, while the JR13WP-5P(31) is supplied in bulk packaging. This does not affect connector performance or compatibility.

Q: Do both connectors meet the same environmental specifications?

A: Yes. Both maintain IP67/IP68 ingress protection and operate across the identical temperature range of -25°C to 85°C, suitable for automotive, industrial, and telecommunications applications.

Q: What compliance advantages does the substitute part offer?

A: The JR13WP-5P(31) is documented as RoHS3 compliant and REACH affected, providing explicit regulatory compliance status for systems requiring current environmental standards adherence.

Q: Are the electrical ratings identical?

A: Yes. Both connectors are rated for 5A current and 100VAC/140VDC voltage, with matching contact materials (copper alloy) and silver mating finish specifications.
