JPS10-2Y Solid State Relay SPST-NO 25A 0-250V Equivalent & Substitute Parts

Part Overview

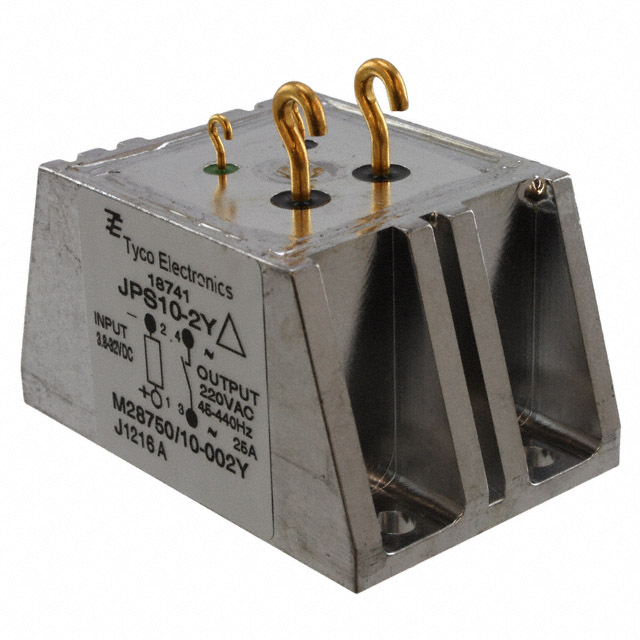

The JPS10-2Y is a solid state relay (SSR) manufactured by TE Connectivity Aerospace, Defense and Marine, classified as a SPST-NO (Single Pole Single Throw, Normally Open) module with 1 Form A circuit configuration. This component is rated for 25A load current at 0-250V AC output with zero-cross switching capability and operates from 4-32VDC input. The JPS10-2Y carries military-grade qualification under MIL-PRF-28750D and features solder hook termination for chassis mount applications.

The JPS10-2Y is designated as obsolete. Locating equivalent or substitute components becomes necessary when original stock is depleted or when procurement timelines require active production alternatives that maintain electrical and mechanical compatibility.

Key Parameters

Parameter	Value
Circuit Configuration	SPST-NO (1 Form A)
Load Current Rating	25 A
Load Voltage Range	0 V ~ 250 V AC
Input Voltage Range	4 ~ 32 VDC
Output Type	AC, Zero Cross
Mounting Type	Chassis Mount
Termination Style	Solder Hook
Package Type	Module
Grade	Military
Qualification Standard	MIL-PRF-28750D

Substitute Part Grouping Explanation

Substitution of the JPS10-2Y is determined by strict equivalence across the following critical parameters:

Electrical Specifications: Load current rating (25A), load voltage range (0-250V AC), input voltage range (4-32VDC), and output type (AC with zero-cross switching) must be identical.

Mechanical Specifications: Circuit configuration (SPST-NO, 1 Form A), mounting type (chassis mount), termination style (solder hook), and package type (module) must match exactly.

Functional Requirements: The substitute must provide the same switching functionality and electrical isolation characteristics as the original component.

The PS10-1Y meets all these criteria and is identified as a direct substitute for the JPS10-2Y.

Parameter Comparison

Parameter	JPS10-2Y (Main Part)	PS10-1Y (Substitute)	Match Status
Manufacturer	TE Connectivity Aerospace, Defense and Marine	TE Connectivity Aerospace, Defense and Marine	Identical
Circuit Configuration	SPST-NO (1 Form A)	SPST-NO (1 Form A)	Identical
Load Current Rating	25 A	25 A	Identical
Load Voltage Range	0 V ~ 250 V	0 V ~ 250 V	Identical
Input Voltage Range	4 ~ 32 VDC	4 ~ 32 VDC	Identical
Output Type	AC, Zero Cross	AC, Zero Cross	Identical
Mounting Type	Chassis Mount	Chassis Mount	Identical
Termination Style	Solder Hook	Solder Hook	Identical
Package Type	Module	Module	Identical
Product Status	Obsolete	Active	Substitute is active production
Grade	Military	Military	Identical
Qualification	MIL-PRF-28750D	Not specified in data	Main part qualified
RoHS Status	RoHS non-compliant	RoHS non-compliant	Identical

Engineering Selection Recommendations

The PS10-1Y is a direct electrical and mechanical equivalent to the JPS10-2Y. Both components share identical electrical specifications, circuit configuration, and mechanical mounting characteristics. The PS10-1Y is currently in active production status, whereas the JPS10-2Y is obsolete.

Selection of the PS10-1Y as a substitute is appropriate for applications requiring:

Identical 25A load current handling at 0-250V AC
Matching 4-32VDC input voltage operation
Zero-cross AC switching functionality
Chassis mount configuration with solder hook termination
Military-grade solid state relay performance

Both components are manufactured by TE Connectivity Aerospace, Defense and Marine and maintain the same RoHS non-compliance status. The PS10-1Y represents the active production continuation of the JPS10 series solid state relay platform.

Frequently Asked Questions (FAQ)

Q: Can the PS10-1Y be used as a direct replacement for the JPS10-2Y in existing designs?

A: Yes. The PS10-1Y provides identical electrical performance and mechanical compatibility. All critical parameters including load current (25A), voltage ratings (0-250V AC load, 4-32VDC input), circuit configuration (SPST-NO), and mounting characteristics (chassis mount, solder hook termination) are equivalent.

Q: What is the primary difference between the JPS10-2Y and PS10-1Y?

A: The JPS10-2Y is obsolete, while the PS10-1Y is in active production. Both components are functionally and electrically identical. The PS10-1Y represents the current manufacturing continuation of this solid state relay platform.

Q: Are there packaging differences between these two parts?

A: The JPS10-2Y is supplied in standard packaging, while the PS10-1Y is supplied in bulk packaging. Both components are module-type packages suitable for chassis mount applications with solder hook termination.

Q: Do both parts meet the same military qualification standards?

A: The JPS10-2Y carries MIL-PRF-28750D qualification. Military qualification status for the PS10-1Y is not specified in the available technical data.

Q: Are there any RoHS compliance differences?

A: No. Both the JPS10-2Y and PS10-1Y are RoHS non-compliant, maintaining identical environmental compliance status.

Q: What is the inventory status for these components?

A: The JPS10-2Y has 1177 pieces available as new original stock. The PS10-1Y has 1099 pieces available as new original stock in bulk packaging.
