JMN6-C Equivalent & Substitute Parts

Part Overview

The JMN6-C is a terminal butt splice connector manufactured by Panduit Corp, designed for crimp termination of 10-18 AWG wire gauges. This component is classified as a closed-end, single-opening splice terminal with full insulation and transparent coloring. The JMN6-C is currently listed as obsolete, necessitating identification of functionally equivalent alternatives for ongoing applications and new designs requiring butt splice termination.

Substiute Parts

JMN6-C

Panduit CorpIn Stock: 822JMN6-C Datasheet

Current PartRFQ

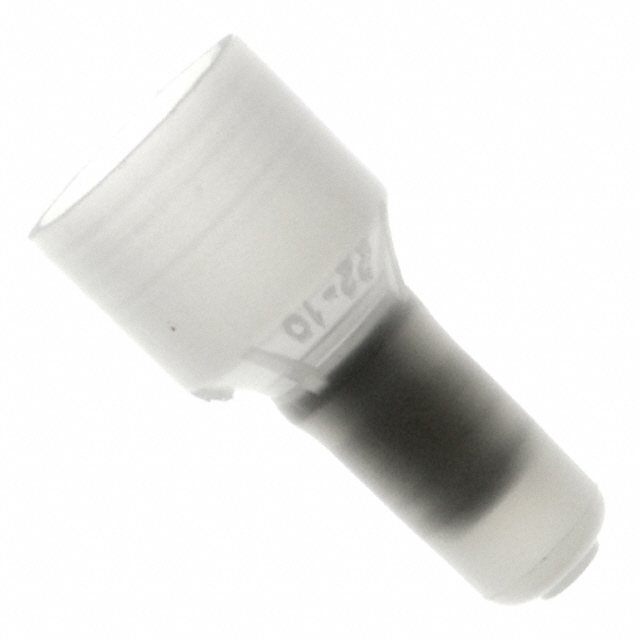

53915-1

TE Connectivity AMP ConnectorsIn Stock: 16336653915-1 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

The substitute part 53915-1 manufactured by TE Connectivity AMP Connectors qualifies as an equivalent based on the following matching parameters:

Matching Criteria:

• Terminal Type: Both are butt splice, closed-end, single-opening connectors
• Termination Method: Both utilize crimp termination
• Insulation: Both are fully insulated
• Wire Gauge Compatibility: The JMN6-C operates at 10-18 AWG, while the 53915-1 operates at 10-22 AWG, providing full coverage of the original specification range
• Connector Configuration: Both feature single wire entry design

The 53915-1 extends the wire gauge range to 22 AWG, maintaining backward compatibility with the JMN6-C specification while offering expanded application flexibility.

Parameter Comparison

Engineering Selection Recommendations

The 53915-1 terminal splice from TE Connectivity AMP Connectors is the direct substitute for the obsolete JMN6-C. Selection of the 53915-1 is supported by the following factors:

Product Status: The 53915-1 maintains active production status, ensuring availability and supply chain continuity for new designs and replacement applications.

Compliance Certification: The 53915-1 carries ROHS3 compliance certification, meeting current regulatory requirements for electronic component manufacturing and environmental standards.

Functional Equivalence: Both connectors share identical terminal architecture, insulation design, and crimp termination methodology. The 53915-1 wire gauge range of 10-22 AWG encompasses the full 10-18 AWG specification of the JMN6-C, providing direct substitution capability without design modification.

Export Classification: Both parts share identical ECCN classification (EAR99), maintaining consistent export control treatment.

Frequently Asked Questions (FAQ)

Q: Can the 53915-1 directly replace the JMN6-C in existing applications?

A: Yes. The 53915-1 provides direct functional replacement for the JMN6-C. Both connectors feature identical butt splice, closed-end, single-opening terminal architecture with crimp termination and full insulation. The 53915-1 wire gauge range of 10-22 AWG fully encompasses the JMN6-C specification of 10-18 AWG.

Q: What is the significance of the extended wire gauge range in the 53915-1?

A: The 53915-1 accommodates wire gauges from 10-22 AWG, compared to the JMN6-C range of 10-18 AWG. This extended range provides compatibility with smaller diameter conductors (19-22 AWG) while maintaining full backward compatibility with the original 10-18 AWG specification.

Q: Are there packaging differences between the JMN6-C and 53915-1?

A: The JMN6-C packaging specification was not provided in the original documentation. The 53915-1 is supplied in bulk packaging format.

Q: Does the color difference between Clear (JMN6-C) and Transparent (53915-1) affect functionality?

A: No. Both color designations describe the same visual characteristic of the insulation material. The color difference is nomenclatural only and does not impact electrical or mechanical performance.

Q: What compliance advantages does the 53915-1 offer?

A: The 53915-1 carries ROHS3 compliance certification, meeting current environmental and regulatory standards for electronic components. This certification status ensures compliance with modern procurement and manufacturing requirements.

Q: Are both parts classified under the same export control regulations?

A: Yes. Both the JMN6-C and 53915-1 share identical ECCN classification (EAR99), maintaining consistent export control treatment and regulatory compliance.
