JMACT-26XM General Purpose Relay DPDT Equivalent & Substitute Parts

Part Overview

The JMACT-26XM is a general purpose relay manufactured by TE Connectivity Aerospace, Defense and Marine. This DPDT (2 Form C) relay is designed for through-hole mounting applications requiring 26.5VDC coil voltage with 1A contact rating. The component is actively produced and maintains military-grade qualification under MIL-R-28776/1. Substitute parts are identified when equivalent electrical and mechanical parameters are required for design flexibility, inventory management, or component availability across production cycles.

Substiute Parts

JMACT-26XM

TE Connectivity Aerospace, Defense and MarineIn Stock: 796JMACT-26XM Datasheet

Current PartRFQ

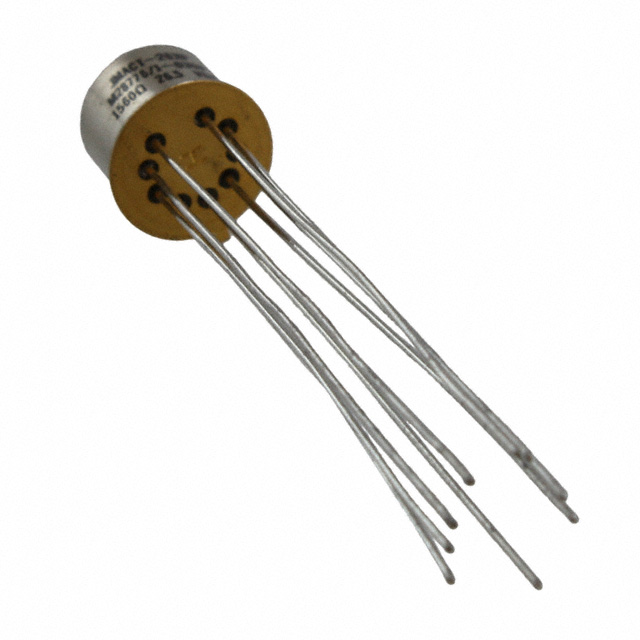

JMACT-26XP

TE Connectivity Aerospace, Defense and MarineIn Stock: 911JMACT-26XP Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the JMACT-26XM is determined by strict equivalence across the following critical parameters:

Electrical Parameters:

• Coil voltage: 26.5VDC
• Contact form: DPDT (2 Form C)
• Contact rating: 1 A
• Switching voltage: 115VAC, 28VDC - Max
• Coil current: 19.8 mA
• Coil resistance: 1560 Ohms
• Must operate voltage: 14.2 VDC
• Must release voltage: 1.37 VDC

Mechanical Parameters:

• Mounting type: Through Hole
• Termination style: PC Pin
• Seal rating: Sealed - Hermetically

Performance Parameters:

• Operate time: 2 ms
• Release time: 7.5 ms
• Operating temperature: -65°C ~ 125°C

Compliance Parameters:

• Grade: Military
• Qualification: MIL-R-28776/1
• Coil type: Non Latching
• Features: Diode

Parts meeting all these parameters are classified as direct parametric equivalents and may be substituted without circuit redesign or performance degradation.

Parameter Comparison

Engineering Selection Recommendations

Both the JMACT-26XM and JMACT-26XP are active production components manufactured by TE Connectivity Aerospace, Defense and Marine with identical military-grade qualification under MIL-R-28776/1. All electrical, mechanical, and performance parameters are equivalent across both part numbers. Selection between these components is based on inventory availability and procurement lead times rather than technical performance differences. Both components maintain the same compliance status (RoHS non-compliant, REACH Unaffected, EAR99 classification) and are suitable for aerospace, defense, and marine applications requiring hermetically sealed DPDT relays with 26.5VDC coil voltage and 1A contact rating.

Frequently Asked Questions (FAQ)

Q: Can JMACT-26XP be used as a direct replacement for JMACT-26XM in existing designs?

A: Yes. The JMACT-26XP is a parametric equivalent with identical electrical specifications, contact form, coil voltage, current rating, operating temperature range, and military qualification. No circuit modifications are required.

Q: Are there differences in contact material between these relays?

A: No. Both the JMACT-26XM and JMACT-26XP use Silver Palladium (AgPd) and Gold (Au) contact materials.

Q: Do both relays meet the same military qualification standard?

A: Yes. Both components are qualified to MIL-R-28776/1 and carry military-grade classification.

Q: What is the operating voltage range for these relays?

A: The coil voltage is 26.5VDC. The must operate voltage is 14.2 VDC and the must release voltage is 1.37 VDC. Maximum switching voltage is 115VAC or 28VDC.

Q: Are these relays suitable for hermetically sealed applications?

A: Yes. Both relays feature hermetically sealed construction, making them suitable for harsh environments and applications requiring protection from moisture and contamination.

Q: What is the response time of these relays?

A: The operate time is 2 ms and the release time is 7.5 ms for both components.

Q: Are there RoHS compliance considerations for these relays?

A: Both the JMACT-26XM and JMACT-26XP are RoHS non-compliant. REACH status is unaffected for both components.

Q: What mounting configuration do these relays use?

A: Both relays are through-hole mounted components with PC pin termination style, suitable for printed circuit board assembly.
