JC6-P107-04 Equivalent & Substitute Parts

Part Overview

The JC6-P107-04 is a 4-circuit barrier block connector manufactured by TE Connectivity AMP Connectors. This through-hole terminal block features a 0.375" (9.53mm) pitch and is designed for wire-to-board applications with screw-based top termination and PC pin bottom termination. The component is currently active in production and maintains full inventory availability. Substitute parts are identified to provide alternative sourcing options when the primary part is unavailable or when design flexibility permits component interchange based on equivalent electrical and mechanical specifications.

Substiute Parts

JC6-P107-04

TE Connectivity AMP ConnectorsIn Stock: 1042JC6-P107-04 Datasheet

Current PartRFQ

1906129

Phoenix ContactIn Stock: 11811906129 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the JC6-P107-04 is determined by the following critical parameters:

Mandatory Matching Parameters:

• Number of Circuits: 4 positions
• Pitch: 0.375" (9.53mm)
• Voltage Rating: 300V minimum
• Mounting Type: Through Hole
• Current Rating: 20A minimum

Compatible Variation Parameters:

• Wire Gauge range may extend beyond the original specification if the substitute accommodates the original wire gauge range
• Termination method may differ (screw-based alternatives acceptable)
• Housing material and color may vary
• Operating temperature may exceed the original specification

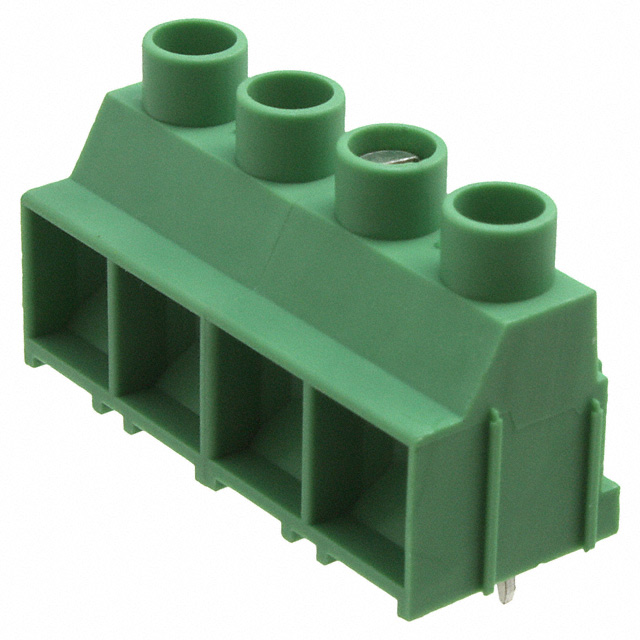

The substitute part 1906129 (Phoenix Contact COMBICON MKDS) meets the mandatory matching criteria with equivalent pitch, voltage, and mounting specifications, while providing enhanced current capacity and extended wire gauge compatibility.

Parameter Comparison

Engineering Selection Recommendations

Primary Part Selection (JC6-P107-04): The JC6-P107-04 remains the specified component for applications requiring barrier block configuration with dual-wall barrier design. This part is active in production, RoHS compliant, and maintains adequate inventory levels. Selection is appropriate for standard 4-circuit, 20A applications at 300V with 12-22 AWG wire requirements.

Substitute Part Selection (1906129): The Phoenix Contact 1906129 serves as a functional substitute when barrier block form factor is not a design constraint. This part provides equivalent electrical performance at 300V and 4-position configuration with enhanced current capacity (30A) and extended wire gauge range (10-30 AWG). The rising cage clamp termination mechanism offers an alternative to traditional screw termination. Both parts maintain RoHS compliance and unlimited moisture sensitivity rating (MSL 1). The substitute is suitable for applications where the horizontal-with-board orientation and interlocking side entry feature are compatible with the PCB layout.

Compliance Basis: Both parts carry EAR99 ECCN classification and HTSUS code 8536.90.4000. Selection between primary and substitute parts should be based on form factor requirements, PCB layout constraints, and termination method preference rather than electrical or regulatory considerations.

Frequently Asked Questions (FAQ)

Q: Can the 1906129 directly replace the JC6-P107-04 on an existing PCB?

A: Direct PCB replacement requires verification of mounting hole alignment and orientation compatibility. While both parts feature 0.375" (9.53mm) pitch and through-hole mounting, the JC6-P107-04 is a barrier block configuration and the 1906129 is a horizontal-with-board terminal block. Physical form factors differ, requiring PCB layout assessment before substitution.

Q: What is the primary difference in termination between these two parts?

A: The JC6-P107-04 uses standard screw termination with steel screws (zinc, clear chromate finish). The 1906129 uses a screw-based rising cage clamp mechanism with M3 screw thread and specified torque range of 0.5-0.6 Nm. Both are screw-based termination methods suitable for field assembly and disassembly.

Q: Are both parts suitable for 20A applications?

A: Yes. The JC6-P107-04 is rated for 20A continuous current. The 1906129 is rated for 30A, which exceeds the 20A requirement and provides additional capacity margin. Both parts are suitable for 20A applications.

Q: What wire gauges are compatible with each part?

A: The JC6-P107-04 accommodates 12-22 AWG wire. The 1906129 accommodates 10-30 AWG wire, providing a broader range. If your application uses 12-22 AWG wire, both parts are compatible. If your application requires 10-11 AWG or 23-30 AWG wire, only the 1906129 is suitable.

Q: Do both parts meet current RoHS requirements?

A: Yes. The JC6-P107-04 is RoHS Compliant. The 1906129 is ROHS3 Compliant. Both meet current RoHS standards and are suitable for applications with RoHS compliance requirements.

Q: What is the voltage rating for both parts?

A: Both the JC6-P107-04 and 1906129 are rated for 300V. They are electrically equivalent for voltage specifications and suitable for applications up to 300V.

Q: Are there differences in operating temperature ratings?

A: The JC6-P107-04 specifies an operating temperature of 105°C. The 1906129 does not provide an operating temperature specification in the available data. For applications with specific temperature requirements above 105°C, the JC6-P107-04 specification should be verified against actual operating conditions.

Q: What is the barrier type on the JC6-P107-04?

A: The JC6-P107-04 features a 2-wall (dual) barrier design, which provides enhanced electrical isolation between adjacent circuits. The 1906129 does not specify barrier configuration, as it uses a different terminal block architecture (horizontal-with-board with interlocking side entry).
