JBXFD1G10MSSDPR Equivalent & Substitute Parts

Part Overview

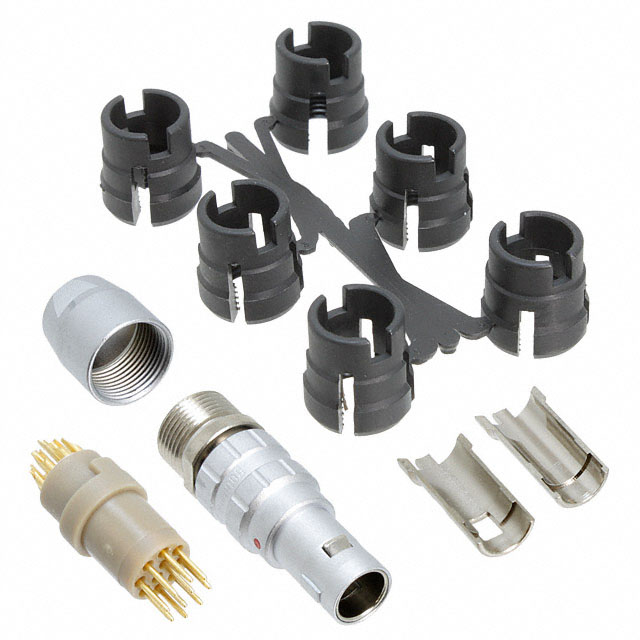

The JBXFD1G10MSSDPR is a 10-position circular connector plug with male pins manufactured by Souriau-Sunbank by Eaton. This shielded connector features solder cup termination, gold-plated mating contacts, and push-pull fastening. The part is active in production and maintains full RoHS3 compliance with REACH unaffected status. Substitute parts are identified to provide alternative sourcing options for applications requiring equivalent electrical and mechanical performance within the JBX and FGG series connector families.

Substiute Parts

JBXFD1G10MSSDPR

Souriau-Sunbank by EatonIn Stock: 1157JBXFD1G10MSSDPR Datasheet

Current PartRFQ

FGG.1B.310.CLAD52

LEMOIn Stock: 862FGG.1B.310.CLAD52 Datasheet

SimilarRFQ

FGG.1B.310.CLAD52Z

LEMOIn Stock: 874FGG.1B.310.CLAD52Z Datasheet

SimilarRFQ

FGG.1B.310.CLAD62

LEMOIn Stock: 812FGG.1B.310.CLAD62 Datasheet

SimilarRFQ

FGG.1B.310.CLAD62Z

LEMOIn Stock: 1173FGG.1B.310.CLAD62Z Datasheet

SimilarRFQ

FGG.1B.310.CLAD72

LEMOIn Stock: 1008FGG.1B.310.CLAD72 Datasheet

SimilarRFQ

FGG.1B.310.CLAD76

LEMOIn Stock: 1173FGG.1B.310.CLAD76 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts are qualified based on the following critical parameters that determine functional equivalence:

Mandatory Matching Parameters:

• Connector Type: Plug, Male Pins
• Number of Positions: 10
• Termination Type: Solder Cup
• Fastening Type: Push-Pull
• Shielding: Shielded
• Current Rating: 2.5A
• Contact Finish - Mating: Gold
• Insert Material: Polyetheretherketone (PEEK)
• Material Flammability Rating: UL94 V-0
• Primary Material: Metal
• Shell Material: Brass
• Mounting Type: Free Hanging (In-Line)
• Orientation: G
• RoHS Status: ROHS3 Compliant
• REACH Status: REACH Unaffected

All identified substitute parts from LEMO (FGG.1B.310 series) meet these core electrical and mechanical requirements. Variations in cable opening specifications and operating temperature ranges reflect design differences within the substitute family but do not affect core connector functionality for standard applications.

Parameter Comparison

Engineering Selection Recommendations

All substitute parts listed maintain active product status and full compliance with RoHS3 and REACH requirements, matching the regulatory standing of the JBXFD1G10MSSDPR. The LEMO FGG.1B.310 series connectors are functionally equivalent across all critical electrical parameters including current rating, contact finish, and shielding configuration.

Selection between substitute options should be based on cable opening requirements specific to the application. The CLAD52 and CLAD52Z variants accommodate cable diameters of 0.165" to 0.205" (4.20mm to 5.20mm). The CLAD62 and CLAD62Z variants support 0.205" to 0.244" (5.20mm to 6.20mm) cable diameters. The CLAD72 variant accommodates 0.244" to 0.283" (6.20mm to 7.20mm) cable diameters. The CLAD76 variant supports 0.283" to 0.299" (7.20mm to 7.60mm) cable diameters.

All substitute parts operate across an extended temperature range of -55°C to 250°C, providing broader environmental capability than the primary part specification of -40°C to 125°C. Ingress protection for all LEMO substitutes is rated IP50 (dust protected) compared to IP40 for the primary part.

Frequently Asked Questions (FAQ)

Q: Can FGG.1B.310 series connectors directly replace JBXFD1G10MSSDPR in existing assemblies?

A: Yes, all identified FGG.1B.310 variants are functionally equivalent for electrical and mechanical performance. The primary consideration is cable opening compatibility. Verify that the cable diameter of your application falls within the specified range for the selected CLAD variant.

Q: What is the difference between CLAD52, CLAD62, CLAD72, and CLAD76 designations?

A: These designations indicate different cable opening specifications. CLAD52 accommodates smaller diameter cables (4.20mm to 5.20mm), while CLAD76 accommodates larger diameter cables (7.20mm to 7.60mm). Select the variant matching your cable diameter requirements.

Q: Are the Z-suffix variants (CLAD52Z, CLAD62Z) interchangeable with non-Z variants?

A: The Z-suffix variants are electrically and mechanically equivalent to their non-Z counterparts. The suffix typically indicates a manufacturing or packaging variation. Both versions meet identical performance specifications and compliance requirements.

Q: Does the extended operating temperature range of FGG.1B.310 substitutes affect compatibility?

A: No. The extended temperature capability (-55°C to 250°C) of LEMO substitutes is a superset of the JBXFD1G10MSSDPR specification (-40°C to 125°C). Applications operating within the original temperature range experience no compatibility issues.

Q: What is the difference between IP40 and IP50 ingress protection ratings?

A: IP40 provides protection against solid objects larger than 1mm. IP50 provides dust protection with limited ingress. For applications requiring the original IP40 specification, verify that the enhanced IP50 rating of substitute parts meets environmental requirements.

Q: Are all substitute parts RoHS3 and REACH compliant?

A: Yes. All FGG.1B.310 series variants listed are ROHS3 compliant and REACH unaffected, matching the regulatory compliance of the primary part.

Q: What inventory levels are available for substitute parts?

A: FGG.1B.310.CLAD52 (824 pcs), FGG.1B.310.CLAD52Z (864 pcs), FGG.1B.310.CLAD62 (745 pcs), FGG.1B.310.CLAD62Z (1144 pcs), FGG.1B.310.CLAD72 (931 pcs), and FGG.1B.310.CLAD76 (1081 pcs) are available in stock.
