JBXFD1G06MSSDSR Equivalent & Substitute Parts

Part Overview

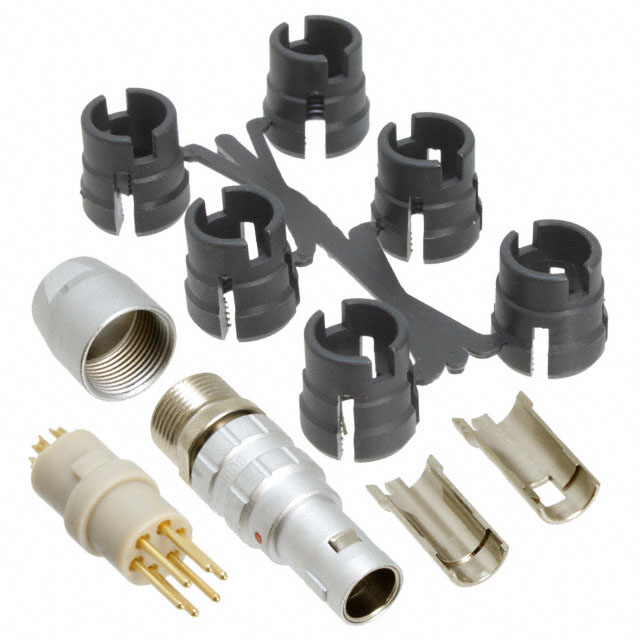

The JBXFD1G06MSSDSR is a 6-position circular connector plug manufactured by Souriau-Sunbank by Eaton. This connector features male pins with solder cup termination, gold-plated mating contacts, and a shielded design suitable for industrial, instrumentation, medical, and telecommunications applications. The part is currently active in production with 915 units in stock. Equivalent and substitute parts are identified to provide design flexibility, ensure supply chain continuity, and accommodate specific application requirements where mechanical or electrical parameters align with the original specification.

Substiute Parts

JBXFD1G06MSSDSR

Souriau-Sunbank by EatonIn Stock: 979JBXFD1G06MSSDSR Datasheet

Current PartRFQ

FFA.1S.306.CLAC62

LEMOIn Stock: 788FFA.1S.306.CLAC62 Datasheet

SimilarRFQ

FGG.1B.306.CLAD42

PEI-GenesisIn Stock: 988FGG.1B.306.CLAD42 Datasheet

SimilarRFQ

FGG.1B.306.CLAD52

PEI-GenesisIn Stock: 1408FGG.1B.306.CLAD52 Datasheet

SimilarRFQ

FGG.1B.306.CLAD52Z

PEI-GenesisIn Stock: 1005FGG.1B.306.CLAD52Z Datasheet

SimilarRFQ

FGG.1B.306.CLAD62

LEMOIn Stock: 1262FGG.1B.306.CLAD62 Datasheet

SimilarRFQ

FGG.1B.306.CLAD62Z

PEI-GenesisIn Stock: 1057FGG.1B.306.CLAD62Z Datasheet

SimilarRFQ

FGG.1B.306.CLAD72

LEMOIn Stock: 1134FGG.1B.306.CLAD72 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the JBXFD1G06MSSDSR are identified based on the following critical parameters that determine functional compatibility:

Primary Substitution Criteria:

• Number of Positions: 6 (all substitutes match)
• Connector Type: Plug configuration with male pins or compatible pin/socket arrangement
• Termination: Solder Cup (all substitutes match)
• Fastening Type: Push-Pull (all substitutes match)
• Shielding: Shielded design (all substitutes match)
• Current Rating: 7A (all substitutes match)
• Contact Finish - Mating: Gold plating (all substitutes match)
• Insert Material: Polyetheretherketone (PEEK) (all substitutes match)
• RoHS Status: ROHS3 Compliant (all substitutes match)

Secondary Compatibility Parameters:

• Shell Material: Brass (all substitutes match)
• Shell Finish: Chrome or Chrome over Nickel (all substitutes use Chrome)
• Mounting Type: Free Hanging (In-Line) (all substitutes match)
• Primary Material: Metal (all substitutes match)
• Ingress Protection: IP40 or higher (substitutes range from IP50 to IP50)

Mechanical Variations: Substitute parts differ in shell size designation (306 vs. 1), cable opening specifications, and orientation coding. These variations reflect different manufacturer nomenclature systems while maintaining functional compatibility within the 6-position, 7A, gold-plated solder cup connector category.

Parameter Comparison

Engineering Selection Recommendations

Primary Equivalent - Direct Substitution:

FGG.1B.306.CLAD62 (LEMO) is the closest functional equivalent to JBXFD1G06MSSDSR. Both connectors share identical electrical specifications (6 positions, 7A current rating, gold-plated contacts), identical termination method (solder cup), identical fastening mechanism (push-pull), and identical insert material (PEEK). Both are ROHS3 compliant and active in production. The primary difference is shell finish (Chrome versus Chrome over Nickel) and operating temperature range (-55°C ~ 250°C versus -40°C ~ 125°C). The LEMO part offers extended temperature capability. Inventory availability is 1207 units.

Secondary Equivalent - Extended Temperature Range:

FGG.1B.306.CLAD72 (LEMO) provides identical electrical and mechanical specifications to FGG.1B.306.CLAD62 with the same extended operating temperature range (-55°C ~ 250°C). The primary distinction is cable opening specification (0.244" ~ 0.283" versus 0.205" ~ 0.244"), which accommodates larger diameter cables. This part is suitable for applications requiring larger cable cross-sections within the same connector footprint. Inventory: 1104 units.

Alternative Configuration - Mixed Pin/Socket:

FFA.1S.306.CLAC62 (LEMO) differs from the main part in connector type (female sockets and male pins versus male pins only). This configuration is suitable for applications requiring a hybrid pin/socket arrangement. All other critical parameters match: 6 positions, 7A current rating, gold plating, solder cup termination, push-pull fastening, PEEK insert, ROHS3 compliance, and active status. Operating temperature range is -55°C ~ 250°C. Inventory: 771 units.

PEI-Genesis Alternatives:

FGG.1B.306.CLAD42, FGG.1B.306.CLAD52, FGG.1B.306.CLAD52Z, and FGG.1B.306.CLAD62Z are manufactured by PEI-Genesis and represent alternative sourcing options. These parts are designated as position circular connectors with 6-position configuration and are active in production. Detailed electrical and mechanical specifications are not fully provided in the available data. These parts are suitable for applications where PEI-Genesis sourcing is preferred or required. Inventory levels range from 928 to 1359 units.

Compliance and Certification:

All identified substitutes maintain ROHS3 compliance and REACH unaffected status, consistent with the original JBXFD1G06MSSDSR. All parts are classified under ECCN EAR99 and HTSUS 8536.69.4020. All substitute parts are currently active in production, ensuring long-term availability and supply chain stability.

Frequently Asked Questions (FAQ)

Q1: Can FGG.1B.306.CLAD62 be used as a direct replacement for JBXFD1G06MSSDSR?

A: Yes. Both connectors meet the core functional requirements: 6-position configuration, 7A current rating, gold-plated solder cup termination, push-pull fastening, shielded design, and PEEK insert material. Both are ROHS3 compliant and active in production. The shell finish differs (Chrome versus Chrome over Nickel), and the LEMO part offers extended operating temperature range (-55°C ~ 250°C versus -40°C ~ 125°C). For applications operating within -40°C ~ 125°C, this substitution is functionally equivalent.

Q2: What is the difference between FGG.1B.306.CLAD62 and FGG.1B.306.CLAD72?

A: Both parts are manufactured by LEMO and share identical electrical specifications, termination method, fastening type, and operating temperature range. The primary difference is cable opening specification: FGG.1B.306.CLAD62 accommodates cables 0.205" ~ 0.244" (5.20mm ~ 6.20mm) in diameter, while FGG.1B.306.CLAD72 accommodates larger cables 0.244" ~ 0.283" (6.20mm ~ 7.20mm) in diameter. Select based on cable diameter requirements.

Q3: Why does FFA.1S.306.CLAC62 have a different connector type?

A: FFA.1S.306.CLAC62 is configured with female sockets and male pins, whereas JBXFD1G06MSSDSR features male pins only. This hybrid configuration is suitable for applications requiring both pin and socket contacts within a single connector. All other critical parameters (6 positions, 7A rating, gold plating, solder cup termination, push-pull fastening) remain identical. Use this part only if the mixed pin/socket configuration is compatible with your application requirements.

Q4: Are PEI-Genesis parts (FGG.1B.306.CLAD42, FGG.1B.306.CLAD52, FGG.1B.306.CLAD52Z, FGG.1B.306.CLAD62Z) fully equivalent?

A: PEI-Genesis parts are designated as 6-position circular connectors with solder cup termination and push-pull fastening, consistent with the main part. However, detailed electrical specifications (current rating, voltage rating, contact finish thickness) are not provided in the available data. These parts are suitable for applications where PEI-Genesis sourcing is required or preferred. Verify specific electrical and mechanical requirements with the manufacturer before final selection.

Q5: What is the significance of the "Z" designation in part numbers like FGG.1B.306.CLAD52Z and FGG.1B.306.CLAD62Z?

A: The "Z" suffix indicates a variant designation used by PEI-Genesis. Based on available data, these parts maintain the same 6-position, solder cup, push-pull configuration as their non-Z counterparts. The specific technical distinction of the "Z" designation is not provided in the available documentation. Consult PEI-Genesis technical documentation for detailed variant specifications.

Q6: Can I use a substitute part with a different operating temperature range?

A: Operating temperature range substitution depends on your application requirements. JBXFD1G06MSSDSR operates -40°C ~ 125°C. LEMO substitutes (FGG.1B.306.CLAD62, FGG.1B.306.CLAD72, FFA.1S.306.CLAC62) operate -55°C ~ 250°C, providing extended capability. If your application operates within the original -40°C ~ 125°C range, either part is suitable. If your application requires extended temperature operation, select the LEMO substitute with the wider temperature range.

Q7: What inventory considerations should guide my selection?

A: Current inventory levels are: JBXFD1G06MSSDSR (915 units), FGG.1B.306.CLAD62 (1207 units), FGG.1B.306.CLAD72 (1104 units), FFA.1S.306.CLAC62 (771 units), FGG.1B.306.CLAD42 (928 units), FGG.1B.306.CLAD52 (1359 units), FGG.1B.306.CLAD52Z (993 units), and FGG.1B.306.CLAD62Z (1000 units). All parts are in stock. Select based on functional requirements first; inventory levels provide secondary flexibility for supply chain optimization.

Q8: Are all substitute parts RoHS compliant?

A: LEMO substitutes (FGG.1B.306.CLAD62, FGG.1B.306.CLAD72, FFA.1S.306.CLAC62) are explicitly ROHS3 compliant. PEI-Genesis parts do not have RoHS status specified in the available data. If RoHS compliance is a requirement, select LEMO substitutes or verify PEI-Genesis compliance status with the manufacturer.
