JBXFD1G06MCSDSMR Equivalent & Substitute Parts

Part Overview

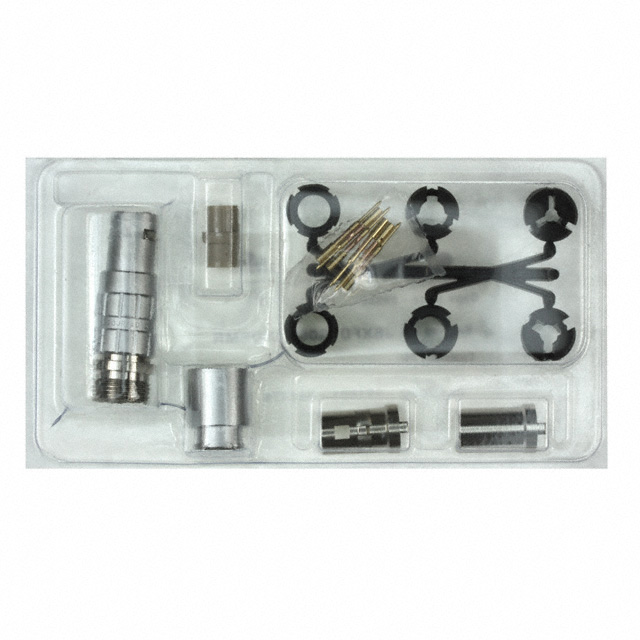

The JBXFD1G06MCSDSMR is a 6-position circular connector plug with male pins manufactured by Souriau-Sunbank by Eaton. This connector features crimp termination, push-pull fastening, and gold-plated mating contacts rated for 7A at 660V. The part is actively produced and maintains full inventory availability with 904 units in stock.

Substitute parts are identified when equivalent circular connectors share the same functional characteristics: 6-position configuration, male pin orientation, crimp termination, push-pull fastening, shielded design, and compatible electrical ratings. Alternative sources ensure supply chain flexibility and component availability across manufacturing environments.

Substiute Parts

JBXFD1G06MCSDSMR

Souriau-Sunbank by EatonIn Stock: 989JBXFD1G06MCSDSMR Datasheet

Current PartRFQ

FGG.1B.306.CYCD62

LEMOIn Stock: 902FGG.1B.306.CYCD62 Datasheet

SimilarRFQ

FGG.1B.306.CYCD72

LEMOIn Stock: 1185FGG.1B.306.CYCD72 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the JBXFD1G06MCSDSMR are qualified based on the following electrical and mechanical parameters:

Core Substitution Criteria:

• Connector type: Plug with male pins
• Position count: 6 positions
• Termination: Crimp
• Fastening mechanism: Push-pull
• Shielding: Shielded configuration
• Current capacity: 7A minimum
• Contact finish: Gold plating on mating surfaces
• Insert material: PEEK
• Shell material: Brass construction
• Compliance: ROHS3 and REACH Unaffected status

The LEMO FGG.1B.306.CYCD62 and FGG.1B.306.CYCD72 connectors satisfy all core substitution criteria. Both parts maintain identical position count, termination method, fastening type, shielding, current rating, contact finish, insert material, and shell material. Both are ROHS3 compliant and REACH unaffected. Differences in cable opening specifications and operating temperature ranges do not affect functional substitution within the defined parameter set.

Parameter Comparison

Engineering Selection Recommendations

JBXFD1G06MCSDSMR (Primary Part)

The Souriau-Sunbank JBXFD1G06MCSDSMR remains the primary specification with 904 units in current inventory. This part is actively produced, ROHS3 compliant, and REACH unaffected. The 660V voltage rating and -40°C to 125°C operating temperature range support industrial, instrumentation, medical, and telecommunications applications. The IP40 ingress protection rating and UL94 V-0 flammability certification meet standard environmental and safety requirements.

FGG.1B.306.CYCD62 (LEMO Substitute)

The LEMO FGG.1B.306.CYCD62 provides functional equivalence with 808 units available. This part maintains all core electrical and mechanical parameters: 6-position configuration, 7A current rating, crimp termination, push-pull fastening, gold-plated contacts, and PEEK inserts. The IP50 dust protection rating exceeds the primary part specification. Operating temperature range extends to -55°C to 250°C. Cable opening specification is 0.205" to 0.244" (5.20mm to 6.20mm). ROHS3 compliance and REACH unaffected status are maintained.

FGG.1B.306.CYCD72 (LEMO Substitute)

The LEMO FGG.1B.306.CYCD72 provides functional equivalence with 1102 units available. This part maintains all core electrical and mechanical parameters identical to FGG.1B.306.CYCD62. The cable opening specification is 0.244" to 0.283" (6.20mm to 7.20mm), accommodating larger cable diameters. Operating temperature range extends to -55°C to 250°C. ROHS3 compliance and REACH unaffected status are maintained.

Selection between substitute parts depends on cable diameter requirements. FGG.1B.306.CYCD62 accommodates cables 5.20mm to 6.20mm in diameter. FGG.1B.306.CYCD72 accommodates cables 6.20mm to 7.20mm in diameter. Both LEMO parts support extended operating temperature ranges and enhanced ingress protection compared to the primary specification.

Frequently Asked Questions (FAQ)

Q: Can FGG.1B.306.CYCD62 and FGG.1B.306.CYCD72 be used interchangeably with JBXFD1G06MCSDSMR?

A: Both LEMO parts are functionally equivalent substitutes for the Souriau-Sunbank JBXFD1G06MCSDSMR based on core electrical and mechanical parameters. Selection between them depends on cable diameter requirements. FGG.1B.306.CYCD62 is specified for 5.20mm to 6.20mm cable diameters. FGG.1B.306.CYCD72 is specified for 6.20mm to 7.20mm cable diameters. Verify cable diameter compatibility before selection.

Q: What are the key differences between the substitute parts?

A: The primary difference between FGG.1B.306.CYCD62 and FGG.1B.306.CYCD72 is cable opening specification. FGG.1B.306.CYCD62 accommodates 5.20mm to 6.20mm cable diameters. FGG.1B.306.CYCD72 accommodates 6.20mm to 7.20mm cable diameters. All other electrical and mechanical parameters are identical between the two LEMO parts.

Q: Are the LEMO substitutes compliant with the same standards as the primary part?

A: Yes. Both LEMO FGG.1B.306.CYCD62 and FGG.1B.306.CYCD72 are ROHS3 compliant and REACH unaffected, matching the primary part compliance status. Both maintain UL94 V-0 flammability ratings and EAR99 export classification.

Q: What is the difference in shell finish between the primary part and substitutes?

A: The JBXFD1G06MCSDSMR features chrome over nickel shell finish. Both LEMO substitutes feature chrome shell finish. This difference does not affect functional substitution within the defined parameter set.

Q: Do the substitute parts support the same current and voltage ratings?

A: Both LEMO substitutes support the 7A current rating. The JBXFD1G06MCSDSMR specifies 660V voltage rating. The LEMO substitutes do not specify voltage rating in the provided parameters. Verify voltage requirements for your application before selection.

Q: What is the difference in operating temperature range?

A: The JBXFD1G06MCSDSMR operates from -40°C to 125°C. Both LEMO substitutes operate from -55°C to 250°C, providing extended temperature capability. Select based on your application temperature requirements.

Q: What is the difference in ingress protection rating?

A: The JBXFD1G06MCSDSMR provides IP40 ingress protection. Both LEMO substitutes provide IP50 dust protection, offering enhanced environmental sealing. Select based on your application environmental requirements.

Q: Are contact finish thickness specifications different?

A: Yes. The JBXFD1G06MCSDSMR specifies 19.7µin (0.50µm) contact finish thickness. Both LEMO substitutes specify 39.4µin (1.00µm) contact finish thickness, providing thicker gold plating. This difference does not affect functional substitution.

Q: What inventory levels are available for each part?

A: JBXFD1G06MCSDSMR: 904 units. FGG.1B.306.CYCD62: 808 units. FGG.1B.306.CYCD72: 1102 units. All parts are available as new original stock in bulk packaging.
