JB5CS06FN00N Equivalent & Substitute Parts

Part Overview

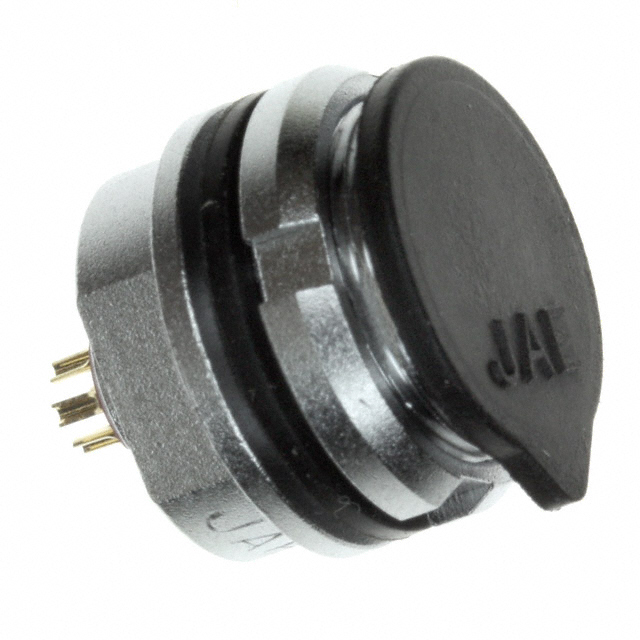

The JB5CS06FN00N is a 6-position circular connector receptacle with female sockets and solder cup termination, manufactured by JAE Electronics. This connector is designed for panel mount applications with bulkhead front-side nut fastening and operates across a temperature range of -55°C to 85°C. The part is currently classified as obsolete, making identification of compatible substitute components essential for ongoing system maintenance and new design implementations.

Substiute Parts

JB5CS06FN00N

JAE ElectronicsIn Stock: 1006JB5CS06FN00N Datasheet

Current PartRFQ

JB5CS06FN00N-RK

JAE ElectronicsIn Stock: 1136JB5CS06FN00N-RK Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the JB5CS06FN00N is determined by strict equivalence across the following critical parameters:

• Connector type and gender (Receptacle, Female Sockets)
• Number of positions (6)
• Shell size classification (S)
• Mounting configuration (Panel Mount, Bulkhead - Front Side Nut)
• Termination method (Solder Cup)
• Fastening mechanism (Push-Pull)
• Electrical ratings (2A current, 200VAC voltage)
• Environmental sealing (IP68)
• Operating temperature range (-55°C ~ 85°C)
• Material composition and finishes (Copper Alloy shell with Chromium finish, Gold contact finish)

The JB5CS06FN00N-RK qualifies as a direct substitute based on complete alignment with all specified parameters. The primary distinction is product status: the original part is obsolete while the substitute is active, with additional RoHS compliance certification.

Parameter Comparison

Engineering Selection Recommendations

The JB5CS06FN00N-RK is the appropriate selection for applications currently using or specifying the JB5CS06FN00N. The substitute part maintains complete electrical, mechanical, and environmental equivalence while offering the advantage of active product status and RoHS compliance certification. For new designs and ongoing procurement, the JB5CS06FN00N-RK should be specified to ensure long-term component availability and regulatory alignment.

Frequently Asked Questions (FAQ)

Q: Can JB5CS06FN00N-RK be used as a direct replacement for JB5CS06FN00N?

A: Yes. Both parts share identical specifications across all critical parameters including connector type, position count, shell size, mounting configuration, termination method, electrical ratings, and environmental sealing. The substitute part is electrically and mechanically interchangeable.

Q: What is the significance of the product status difference?

A: The original JB5CS06FN00N is classified as obsolete, indicating discontinued manufacturing. The JB5CS06FN00N-RK maintains active production status, ensuring availability for current and future procurement requirements.

Q: Does RoHS compliance affect compatibility?

A: RoHS compliance is a regulatory certification that does not alter the electrical or mechanical function of the connector. The JB5CS06FN00N-RK's RoHS compliance status makes it suitable for applications subject to RoHS requirements without compromising compatibility with existing designs.

Q: Are the solder cup terminations identical between both parts?

A: Yes. Both parts utilize solder cup termination with identical specifications, allowing direct substitution in PCB assembly and wiring applications without modification to existing solder procedures or connection methods.

Q: What applications are these connectors suitable for?

A: Both parts are specified for medical, telecommunications, and test & measurement applications. The IP68 ingress protection rating and operating temperature range of -55°C to 85°C support deployment in demanding environmental conditions across these sectors.
