JB5CS05FM00N Equivalent & Substitute Parts

Part Overview

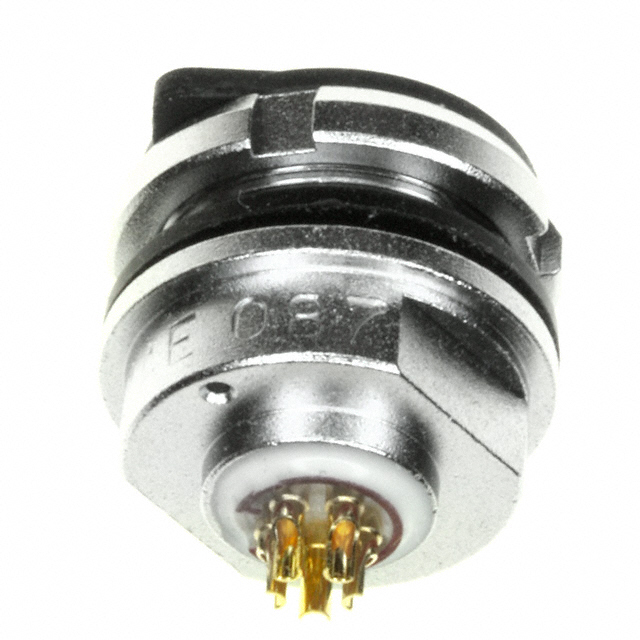

The JB5CS05FM00N is a 5-position circular connector receptacle with female sockets and solder cup termination, manufactured by JAE Electronics. This component is classified as obsolete, making identification of suitable substitutes essential for ongoing system support and component procurement. The connector is designed for applications requiring IP68-rated environmental sealing in medical, telecommunications, and test & measurement environments.

Substiute Parts

JB5CS05FM00N

JAE ElectronicsIn Stock: 907JB5CS05FM00N Datasheet

Current PartRFQ

JB5CS05FM00N-RK

JAE ElectronicsIn Stock: 1057JB5CS05FM00N-RK Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the JB5CS05FM00N is determined by strict equivalence across the following critical parameters:

• Connector Architecture: Receptacle configuration with female sockets
• Position Count: 5-position contact arrangement
• Shell Geometry: Size S insert with bulkhead panel mount configuration
• Termination Method: Solder cup connection
• Fastening Mechanism: Push-pull coupling system
• Environmental Rating: IP68 sealing specification
• Electrical Performance: 3A current capacity and 320VAC voltage rating
• Temperature Compliance: -55°C to 85°C operational range
• Contact Metallurgy: Gold-plated mating surfaces
• Regulatory Compliance: RoHS compliance requirement

The substitute part JB5CS05FM00N-RK maintains identical specifications across all these parameters while offering active product status, ensuring continued availability and manufacturing support.

Parameter Comparison

Engineering Selection Recommendations

The JB5CS05FM00N-RK is a direct functional equivalent to the JB5CS05FM00N. Both components share identical electrical, mechanical, and environmental specifications. The primary distinction is product lifecycle status: the original part is obsolete while the substitute maintains active manufacturing status.

For new designs and ongoing procurement, the JB5CS05FM00N-RK is the appropriate selection. Both parts maintain RoHS compliance and identical regulatory classifications (ECCN: EAR99; HTSUS: 8536.69.4020), ensuring compatibility with existing supply chain and compliance documentation.

Frequently Asked Questions (FAQ)

Q: Are JB5CS05FM00N and JB5CS05FM00N-RK mechanically interchangeable?

A: Yes. Both components feature identical shell size (S insert), panel mount bulkhead configuration, and push-pull fastening. PCB footprints and mounting hole patterns are equivalent.

Q: Can JB5CS05FM00N-RK be used as a direct replacement in existing assemblies?

A: Yes. The substitute part maintains identical electrical ratings (3A, 320VAC), contact metallurgy (gold-plated copper alloy), and environmental sealing (IP68). No circuit modifications are required.

Q: What is the difference between these part numbers?

A: The JB5CS05FM00N-RK designation indicates an active production variant of the same connector series. Electrical and mechanical performance are identical. The suffix "-RK" distinguishes the active production part from the obsolete original.

Q: Are both parts RoHS compliant?

A: Yes. Both JB5CS05FM00N and JB5CS05FM00N-RK are RoHS compliant and share identical regulatory classifications.

Q: What is the operating temperature range for these connectors?

A: Both parts operate across -55°C to 85°C, suitable for industrial, medical, and telecommunications applications.

Q: Do these connectors include environmental protection features?

A: Yes. Both parts feature IP68 ingress protection (dust tight and waterproof) and include dust caps as standard.
