JB5CS05AM00N Equivalent & Substitute Parts

Part Overview

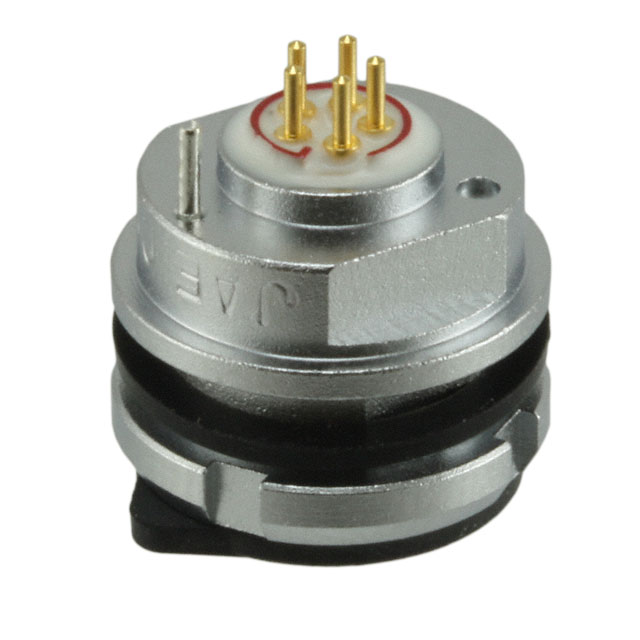

The JB5CS05AM00N is a 5-position circular connector receptacle manufactured by JAE Electronics, designed for panel mount, through-hole applications with solder termination. This connector features female sockets with gold-plated contacts, chromium-finished copper alloy shell, and IP68 ingress protection rating suitable for medical, telecommunications, and test & measurement applications.

The JB5CS05AM00N is classified as obsolete. Identifying equivalent and substitute parts is necessary to maintain design continuity, ensure supply chain availability, and support ongoing production or maintenance requirements for systems utilizing this connector.

Substiute Parts

JB5CS05AM00N

JAE ElectronicsIn Stock: 887JB5CS05AM00N Datasheet

Current PartRFQ

JB5CS05AM00-RK

JAE ElectronicsIn Stock: 1175JB5CS05AM00-RK Datasheet

DirectRFQ

JB5CS05AM00N-RK

JAE ElectronicsIn Stock: 845JB5CS05AM00N-RK Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the JB5CS05AM00N is determined by strict equivalence across the following critical parameters:

Mandatory Matching Parameters:

• Connector type: Receptacle, Female Sockets
• Number of positions: 5
• Shell size - insert: S
• Mounting type: Panel Mount, Through Hole
• Mounting feature: Bulkhead - Front Side Nut
• Termination: Solder
• Fastening type: Push-Pull
• Orientation: N (Normal)
• Shell material: Copper Alloy
• Shell finish: Chromium
• Contact finish - mating: Gold
• Ingress protection: IP68
• Contact material: Copper Alloy
• Contact finish thickness - mating: 30.0µin (0.76µm)
• Insert material: Synthetic Resin
• Series: JB5

Allowable Variation Parameters:

• Current rating: 3A (main part) to 5A (substitute acceptable if higher)
• Voltage rating: 320VAC (main part) to 320V (substitute acceptable)
• Operating temperature: -55°C ~ 85°C (main part) to unspecified (substitute acceptable if range not narrower)
• Product status: Obsolete (main part) to Active (substitute acceptable)
• Packaging: Varies
• Inventory availability: Varies

Two substitute parts meet these criteria and are listed below.

Parameter Comparison

Engineering Selection Recommendations

JB5CS05AM00N-RK is the primary substitute for JB5CS05AM00N. This part maintains identical electrical and mechanical specifications, including 3A current rating, 320VAC voltage rating, and -55°C ~ 85°C operating temperature range. The part is currently active in production, RoHS compliant, and available in higher inventory quantities (779 pcs). The through-hole mounting configuration matches the original design requirement. This substitute provides direct functional equivalence with improved supply chain availability.

JB5CS05AM00-RK is an alternative substitute with the following considerations: The part is currently active in production with higher inventory availability (1138 pcs). The current rating is increased to 5A, which exceeds the original 3A specification and is acceptable for applications not requiring current derating. The mounting type specification lists "Panel Mount" without explicit "Through Hole" designation, which may require verification against specific PCB layout requirements. The operating temperature range is not specified in available documentation. This part is suitable for applications where the increased current capacity is beneficial and mounting configuration is compatible with design constraints.

Both substitutes are manufactured by JAE Electronics within the JB5 series and maintain all critical mechanical and electrical parameters necessary for functional equivalence.

Frequently Asked Questions (FAQ)

Q: Can JB5CS05AM00-RK be used as a direct replacement for JB5CS05AM00N?

A: JB5CS05AM00-RK is functionally equivalent for applications where the increased 5A current rating does not conflict with circuit design requirements. The primary difference is the mounting type specification. Verify that "Panel Mount" without explicit "Through Hole" designation is compatible with your PCB layout. If through-hole mounting is mandatory, use JB5CS05AM00N-RK instead.

Q: What is the difference between JB5CS05AM00-RK and JB5CS05AM00N-RK?

A: JB5CS05AM00N-RK maintains identical specifications to the original JB5CS05AM00N, including 3A current rating and explicit through-hole mounting designation. JB5CS05AM00-RK offers increased 5A current capacity and lists mounting type as "Panel Mount" without through-hole specification. Select JB5CS05AM00N-RK for direct specification equivalence or JB5CS05AM00-RK if the increased current rating is advantageous and mounting configuration is verified as compatible.

Q: Are all substitute parts RoHS compliant?

A: JB5CS05AM00N-RK is confirmed RoHS compliant. RoHS compliance status for JB5CS05AM00-RK is not specified in available documentation. Verify RoHS compliance requirements with your procurement or quality assurance department before finalizing part selection.

Q: What is the operating temperature range for JB5CS05AM00-RK?

A: The operating temperature range for JB5CS05AM00-RK is not specified in available documentation. The original JB5CS05AM00N and substitute JB5CS05AM00N-RK both specify -55°C ~ 85°C. If operating temperature range is a critical design parameter, use JB5CS05AM00N-RK or contact the manufacturer for JB5CS05AM00-RK specifications.

Q: Why is the original JB5CS05AM00N marked as obsolete?

A: Product obsolescence indicates that JAE Electronics has discontinued active production and support for this part number. Substitute parts JB5CS05AM00-RK and JB5CS05AM00N-RK are currently active in production and provide equivalent functionality with improved long-term supply chain availability.

Q: Are there packaging differences between the substitute parts?

A: JB5CS05AM00N-RK packaging is not specified. JB5CS05AM00-RK is supplied in bulk packaging. Verify packaging requirements with your procurement process, as packaging may affect handling, storage, and logistics procedures.
