JB1HB05SL5 Equivalent & Substitute Parts

Part Overview

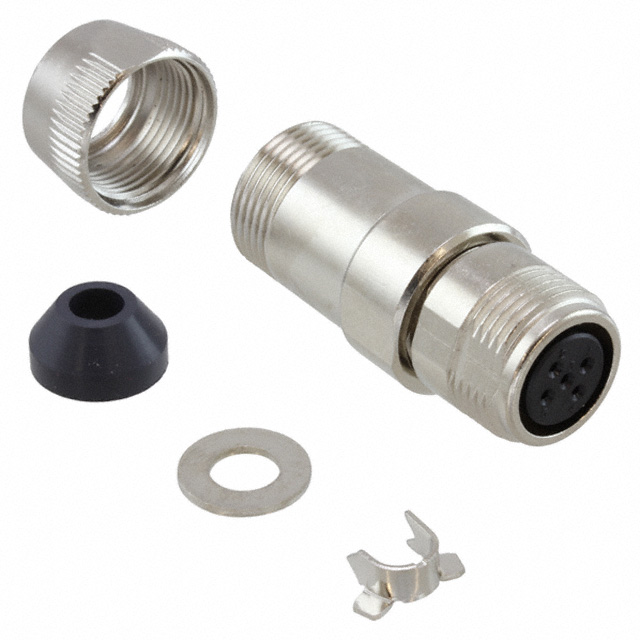

The JB1HB05SL5 is a 5-position circular connector receptacle housing manufactured by JAE Electronics, designed for free-hanging (in-line) applications with threaded fastening and keyed orientation. This component features a shielded design with IP67 ingress protection rating, making it suitable for dust-tight and waterproof environments. The part is currently classified as obsolete, necessitating identification of functionally equivalent alternatives for ongoing system support and new designs requiring compatible interconnect solutions.

Substiute Parts

JB1HB05SL5

JAE ElectronicsIn Stock: 682JB1HB05SL5 Datasheet

Current PartRFQ

JB1HB05SL5-RK

JAE ElectronicsIn Stock: 972JB1HB05SL5-RK Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the JB1HB05SL5 is determined by strict adherence to the following critical parameters:

Primary Substitution Criteria:

• Manufacturer: JAE Electronics (same manufacturer ensures design compatibility)
• Series: JB1 (maintains mechanical and electrical interface standards)
• Base Product Number: JB1HB05S (confirms functional equivalence)
• Number of Positions: 5 (electrical interface requirement)
• Connector Type: Receptacle Housing (functional role)
• Type: For Female Sockets (mating interface specification)
• Shell Size - Insert: B-5 (mechanical compatibility)
• Contact Type: Crimp (termination method)
• Contact Size: 22 (contact gauge specification)
• Mounting Type: Free Hanging (In-Line) (installation configuration)
• Fastening Type: Threaded (assembly method)
• Orientation: Keyed (polarization requirement)

Secondary Compatibility Parameters:

• Shell Material: Zinc Alloy (environmental durability)
• Shell Finish: Nickel (corrosion resistance)
• Ingress Protection: IP67 (environmental sealing)
• Shielding: Shielded (electromagnetic interference protection)
• Operating Temperature Range: -30°C ~ 85°C (thermal operating envelope)

Substitute parts must maintain all primary criteria and secondary parameters to ensure direct mechanical and electrical interchangeability without design modification.

Parameter Comparison

Engineering Selection Recommendations

The JB1HB05SL5-RK serves as the direct active-production equivalent to the obsolete JB1HB05SL5. Both components share identical base product designation (JB1HB05S) and functional specifications, confirming mechanical and electrical interchangeability.

Selection Basis:

The JB1HB05SL5-RK is classified as Active product status, ensuring continued manufacturing support, availability, and compliance with current regulatory requirements. The substitute part maintains MSL Level 1 (Unlimited) moisture sensitivity rating and EAR99 export classification, matching the original component's compliance profile.

The addition of RoHS Compliant certification on the JB1HB05SL5-RK indicates compliance with current environmental regulations, providing enhanced suitability for applications subject to RoHS directives.

For new designs or system refreshes, the JB1HB05SL5-RK is the appropriate selection. For legacy system maintenance requiring the original JB1HB05SL5, existing inventory (650 units) remains available; however, transition to the active equivalent is recommended for long-term supply chain stability.

Frequently Asked Questions (FAQ)

Q: Can JB1HB05SL5-RK directly replace JB1HB05SL5 without design modification?

A: Yes. Both components share the identical base product number (JB1HB05S) and are manufactured by JAE Electronics. The JB1HB05SL5-RK maintains all mechanical and electrical specifications required for direct substitution in existing applications.

Q: What is the significance of the "-RK" suffix in the part number?

A: The "-RK" suffix indicates a variant designation within the JB1HB05S product family. This suffix does not alter the core functional specifications or mechanical interface; it represents a manufacturing or packaging variant while maintaining full compatibility with the base design.

Q: Are there any compliance differences between the two parts?

A: Both parts share identical MSL Level 1, ECCN EAR99, and HTSUS classifications. The JB1HB05SL5-RK includes explicit RoHS Compliant certification, indicating enhanced environmental compliance. This addition does not create incompatibility; it reflects current manufacturing standards.

Q: Why is the original JB1HB05SL5 classified as obsolete?

A: Obsolescence typically reflects end-of-life status in the manufacturer's product portfolio. The active equivalent JB1HB05SL5-RK ensures continued availability and support for this connector family.

Q: What parameters must remain constant for substitution eligibility?

A: Critical parameters include: 5-position configuration, B-5 shell size, female socket type, crimp contact method, contact size 22, free-hanging in-line mounting, threaded fastening, keyed orientation, shielded design, and IP67 ingress protection rating. All substitute parts must maintain these specifications.

Q: Is inventory availability a factor in component selection?

A: Inventory status reflects current stock levels but should not override compliance and product status considerations. The JB1HB05SL5-RK's Active status ensures long-term availability, making it the preferred choice for ongoing applications despite current inventory differences.
