J1MACD-26XLS Equivalent & Substitute Parts

Part Overview

The J1MACD-26XLS is a general purpose relay manufactured by TE Connectivity Aerospace, Defense and Marine. This SPDT (Single Pole Double Throw) relay operates at 26.5VDC coil voltage with a 1 ampere contact rating and is designed for through-hole mounting applications. The component features hermetically sealed construction with diode protection and operates across the temperature range of -65°C to 125°C.

The J1MACD-26XLS maintains active product status. Substitute parts are identified to provide alternative sourcing options when the primary part number is unavailable or when specific compliance requirements necessitate component alternatives.

Key Parameters

Parameter	Value
Coil Voltage	26.5VDC
Contact Form	SPDT (1 Form C)
Contact Rating (Current)	1 A
Switching Voltage	115VAC, 28VDC - Max
Mounting Type	Through Hole
Seal Rating	Sealed - Hermetically
Operating Temperature Range	-65°C ~ 125°C
Coil Type	Non Latching
Features	Diode
Termination Style	PC Pin

Substitute Part Grouping Explanation

Substitute parts for the J1MACD-26XLS are qualified based on electrical and mechanical parameter equivalence. The following parameters must match for direct substitution:

Coil voltage: 26.5VDC
Contact form: SPDT (1 Form C)
Contact rating: 1 A
Switching voltage: 115VAC, 28VDC - Max
Mounting type: Through Hole
Seal rating: Sealed - Hermetically
Operating temperature range: -65°C ~ 125°C
Coil type: Non Latching
Features: Diode
Termination style: PC Pin

The identified substitute parts J1MAWD-26XP and J1MAWD-26XM satisfy these electrical and mechanical requirements. Variations in series designation, base product number, and compliance certifications do not affect functional interchangeability within the specified parameter set.

Parameter Comparison

Parameter	J1MACD-26XLS	J1MAWD-26XP	J1MAWD-26XM
Manufacturer	TE Connectivity Aerospace, Defense and Marine	TE Connectivity Aerospace, Defense and Marine	TE Connectivity Aerospace, Defense and Marine
Coil Voltage	26.5VDC	26.5VDC	26.5VDC
Contact Form	SPDT (1 Form C)	SPDT (1 Form C)	SPDT (1 Form C)
Contact Rating (Current)	1 A	1 A	1 A
Switching Voltage	115VAC, 28VDC - Max	115VAC, 28VDC - Max	115VAC, 28VDC - Max
Coil Type	Non Latching	Non Latching	Non Latching
Features	Diode	Diode	Diode
Termination Style	PC Pin	PC Pin	PC Pin
Seal Rating	Sealed - Hermetically	Sealed - Hermetically	Sealed - Hermetically
Must Operate Voltage	14.2 VDC	14.2 VDC	14.2 VDC
Must Release Voltage	1.37 VDC	1.37 VDC	1.37 VDC
Operate Time	2 ms	2 ms	2 ms
Release Time	4 ms	4 ms	4 ms
Operating Temperature Range	-65°C ~ 125°C	-65°C ~ 125°C	-65°C ~ 125°C
Contact Material	Silver Palladium (AgPd), Gold (Au)	Silver Palladium (AgPd), Gold (Au)	Silver Palladium (AgPd), Gold (Au)
Relay Type	General Purpose	General Purpose	General Purpose
Coil Resistance	2 kOhms	2 kOhms	2000 Ohms
Mounting Type	Through Hole	Through Hole	Through Hole
Product Status	Active	Active	Active
RoHS Status	RoHS non-compliant	ROHS3 Compliant	RoHS non-compliant
REACH Status	REACH Unaffected	REACH Unaffected	REACH Unaffected

Engineering Selection Recommendations

All three parts maintain active product status and are manufactured by TE Connectivity Aerospace, Defense and Marine. The J1MACD-26XLS and J1MAWD-26XM are RoHS non-compliant, while the J1MAWD-26XP achieves ROHS3 compliance. All parts carry REACH Unaffected status.

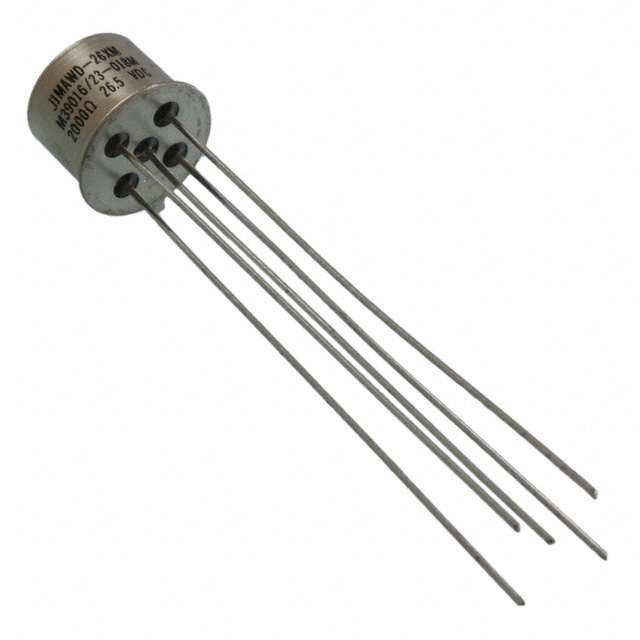

The J1MAWD-26XM carries military grade qualification under MIL-R-39016/23, distinguishing it from the other two parts. This qualification applies when military-grade specifications are required for the application.

Selection between J1MAWD-26XP and J1MAWD-26XM should be based on regulatory compliance requirements. The J1MAWD-26XP is appropriate for applications requiring RoHS3 compliance. The J1MAWD-26XM is appropriate for applications requiring military-grade qualification. The J1MACD-26XLS serves as the baseline reference part.

Frequently Asked Questions (FAQ)

Q: Can J1MAWD-26XP and J1MAWD-26XM be used interchangeably with J1MACD-26XLS?

A: Yes. All three parts meet the same electrical and mechanical specifications for coil voltage, contact form, current rating, switching voltage, operating temperature range, and termination style. Functional interchangeability is established through parameter equivalence.

Q: What is the difference between J1MAWD-26XP and J1MAWD-26XM?

A: The primary differences are RoHS compliance status and military qualification. J1MAWD-26XP is ROHS3 compliant. J1MAWD-26XM carries military grade qualification under MIL-R-39016/23 and is RoHS non-compliant. Both parts are electrically and mechanically equivalent to the J1MACD-26XLS.

Q: Are there inventory differences between these parts?

A: Yes. Current inventory levels are: J1MACD-26XLS (932 pcs), J1MAWD-26XP (1154 pcs), and J1MAWD-26XM (1049 pcs). Inventory availability may influence part selection when supply constraints exist.

Q: Do these relays require different mounting procedures?

A: No. All three parts use through-hole mounting with PC pin termination style. Mounting procedures and PCB layout requirements are identical.

Q: What compliance certifications apply to each part?

A: All parts are REACH Unaffected and carry EAR99 ECCN classification. J1MAWD-26XP is ROHS3 compliant. J1MAWD-26XM carries MIL-R-39016/23 military qualification. J1MACD-26XLS is RoHS non-compliant.
