ISD1932SYI Equivalent & Substitute Parts

Part Overview

The ISD1932SYI is a voice record/playback interface IC from Nuvoton Technology Corporation's ChipCorder® series, designed for applications requiring audio recording and playback functionality. This 28-SOIC surface mount device supports multiple message recording with durations between 21.3 and 64 seconds, operating across a wide supply voltage range of 2.4V to 5.5V. The part is currently in active production status with robust inventory availability (2542 pcs in stock). Substitute parts may be required due to design changes, package constraints, interface protocol requirements, or extended recording duration needs in system implementations.

Substiute Parts

ISD1932SYI

Nuvoton Technology CorporationIn Stock: 2560ISD1932SYI Datasheet

Current PartRFQ

ISD2360SYI

Nuvoton Technology CorporationIn Stock: 22251ISD2360SYI Datasheet

MFR RecommendedRFQ

ISD2360YYI

Nuvoton Technology CorporationIn Stock: 2208ISD2360YYI Datasheet

MFR RecommendedRFQ

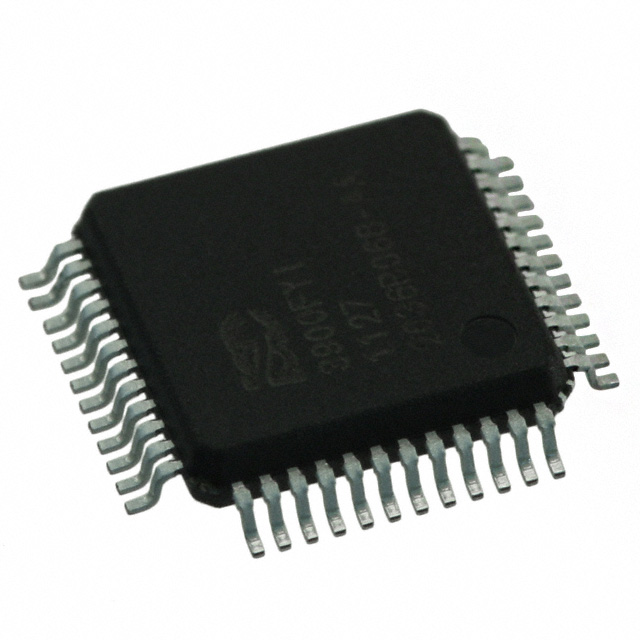

ISD3900FYI

Nuvoton Technology CorporationIn Stock: 42085ISD3900FYI Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the ISD1932SYI is determined by the following critical parameters:

Primary Substitution Criteria:

• Manufacturer: Nuvoton Technology Corporation (ChipCorder® series)
• Product Status: Active
• Operating Temperature Range: -40°C ~ 85°C (TA)
• Voltage Supply Range: 2.4V ~ 5.5V minimum compatibility
• RoHS3 Compliance and MSL Level 3 certification

Secondary Compatibility Factors:

• Messaging capability (Multiple message support preferred for direct replacement)
• Sampling frequency range (minimum 4kHz support required)
• Output signal compatibility (PWM Speaker Output as primary output)
• Recording duration (21.3 ~ 64 seconds minimum)

The three qualified substitute parts (ISD2360SYI, ISD2360YYI, and ISD3900FYI) meet the core electrical and environmental specifications. However, each introduces trade-offs in interface protocol, package form factor, and messaging architecture that must be evaluated against specific application requirements.

Parameter Comparison

Engineering Selection Recommendations

ISD2360SYI (16-SOIC Package) Select this substitute when PCB space is constrained and single-message recording is acceptable. The reduced pin count (16 vs. 28) and smaller package footprint provide layout advantages. The SPI interface requires microcontroller integration, replacing the direct pushbutton control of the ISD1932SYI. Supply voltage compatibility (2.4V ~ 5.5V) and operating temperature range remain identical. All compliance certifications (ROHS3, MSL Level 3) are maintained.

ISD2360YYI (32-QFN Package) Select this substitute for applications requiring a compact QFN form factor with single-message capability. The 32-QFN (5x5) package offers reduced board area compared to SOIC packages while maintaining SPI interface protocol. Electrical specifications and compliance certifications match the ISD2360SYI. Tray packaging is provided instead of tube.

ISD3900FYI (48-LQFP Package) Select this substitute for applications requiring extended recording duration (64 minutes vs. 64 seconds) and multiple-message support. This part restores the multiple-messaging architecture of the ISD1932SYI while providing significantly expanded storage capacity. The SPI interface and enhanced analog signal processing (I2S input, BTL output) support more sophisticated audio applications. Critical limitation: supply voltage range is narrower (2.7V ~ 3.6V), requiring design verification against the original 2.4V ~ 5.5V specification. All compliance certifications are maintained.

Frequently Asked Questions (FAQ)

Q: Can ISD2360SYI directly replace ISD1932SYI without firmware changes? A: No. The ISD2360SYI uses SPI serial interface instead of pushbutton direct control. Microcontroller firmware must be developed to manage recording/playback via SPI commands. The single-message limitation also differs from the multiple-message architecture of ISD1932SYI.

Q: What is the primary advantage of ISD3900FYI over ISD1932SYI? A: Recording duration extends from 64 seconds to 64 minutes, and multiple-message support is retained. However, the supply voltage range narrows to 2.7V ~ 3.6V, which may be incompatible with systems designed for the original 2.4V ~ 5.5V specification.

Q: Are all substitute parts pin-compatible with ISD1932SYI? A: No. ISD1932SYI uses 28-SOIC packaging with pushbutton interface. ISD2360SYI uses 16-SOIC, ISD2360YYI uses 32-QFN, and ISD3900FYI uses 48-LQFP. Each requires different PCB layout and interface circuitry.

Q: Do all parts meet the same environmental and compliance standards? A: Yes. All four parts operate across -40°C to 85°C, are ROHS3 compliant, and carry MSL Level 3 (168 Hours) certification. ISD3900FYI has a narrower supply voltage range (2.7V ~ 3.6V vs. 2.4V ~ 5.5V).

Q: Which substitute is best for space-constrained designs? A: ISD2360YYI (32-QFN) offers the most compact footprint. ISD2360SYI (16-SOIC) provides the smallest pin count and reduced board area while maintaining SOIC package familiarity.

Q: What sampling frequency range do the substitutes support? A: ISD2360SYI and ISD2360YYI support 4 ~ 32kHz (vs. 4 ~ 12kHz for ISD1932SYI). ISD3900FYI also supports 4 ~ 32kHz, providing higher audio fidelity options.
