IS15SBFP4RGB Equivalent & Substitute Parts

Part Overview

The IS15SBFP4RGB is a programmable display switch from NKK Switches' SmartDisplay™ series, featuring an integrated LCD display with RGB LED capability. This pushbutton switch delivers SPST-NO contact operation at 0.1A @ 12VDC with a compact form factor suitable for through-hole mounting applications. The component is currently listed as obsolete, making identification of compatible substitute parts essential for ongoing system support and new design implementations.

Substiute Parts

IS15SBFP4RGB

NKK SwitchesIn Stock: 987IS15SBFP4RGB Datasheet

Current PartRFQ

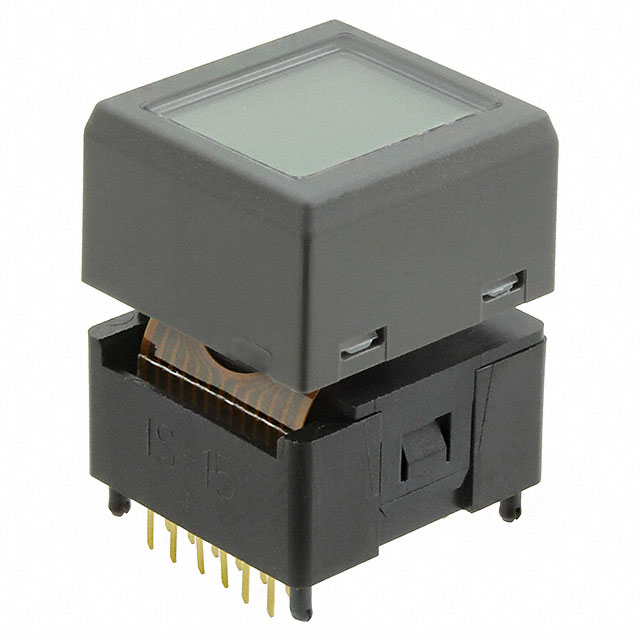

IS15BSBFP4RGB

NKK SwitchesIn Stock: 976IS15BSBFP4RGB Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the IS15SBFP4RGB is determined by strict alignment with the following critical parameters:

Electrical Compatibility Requirements:

• Circuit configuration must remain SPST-NO
• Contact rating must support minimum 0.1A @ 12VDC
• Supply voltage range must encompass 3.0 ~ 5.5VDC
• LED color configuration must include Red, Green, and Blue channels

Mechanical Compatibility Requirements:

• Mounting type must be Through Hole
• Face size must be 19.0mm L x 18.0mm W
• Travel range must be 1.8mm
• Pixel format must be 36 x 24
• Display mode must be Black and White, FSTN Positive

Functional Requirements:

• Type classification must be Pushbutton, LCD
• Series must be SmartDisplay™

The IS15BSBFP4RGB meets all substitution criteria and is classified as a direct manufacturer equivalent.

Parameter Comparison

Engineering Selection Recommendations

The IS15BSBFP4RGB is the direct substitute for the obsolete IS15SBFP4RGB. Selection of this substitute is supported by the following factors:

Product Status: The IS15BSBFP4RGB maintains Active product status, ensuring continued availability and manufacturer support. The original IS15SBFP4RGB is classified as Obsolete, necessitating transition to an active equivalent.

Regulatory Compliance: Both components maintain identical REACH and ECCN classifications (REACH Unaffected, EAR99), confirming equivalent regulatory standing. The substitute carries RoHS3 compliance certification.

Electrical and Mechanical Equivalence: All critical electrical parameters—circuit configuration, contact rating, supply voltage, and LED specifications—are identical. Mechanical parameters including mounting type, face size, pixel format, and travel range are fully matched.

Enhanced Operating Range: The IS15BSBFP4RGB provides an extended operating temperature range (-15°C ~ 50°C) compared to the original part (0°C ~ 40°C), offering improved performance envelope for temperature-sensitive applications.

Inventory Availability: The substitute part maintains robust stock levels (937 Pcs New Original In Stock) supporting immediate procurement for replacement and new design applications.

Frequently Asked Questions (FAQ)

Q: Can the IS15BSBFP4RGB be used as a direct replacement for IS15SBFP4RGB in existing designs?

A: Yes. The IS15BSBFP4RGB is a direct electrical and mechanical equivalent. All critical parameters—circuit configuration, contact rating, supply voltage, mounting type, face size, and display specifications—are identical. No design modifications are required.

Q: What is the primary difference between these two parts?

A: The IS15BSBFP4RGB is the active production equivalent of the obsolete IS15SBFP4RGB. The substitute offers an extended operating temperature range (-15°C ~ 50°C versus 0°C ~ 40°C) and carries RoHS3 compliance certification.

Q: Are there packaging differences between the main part and substitute?

A: The IS15SBFP4RGB is supplied in standard packaging, while the IS15BSBFP4RGB is supplied in Bulk packaging. Both use identical PC Pin termination and are suitable for through-hole mounting applications.

Q: Does the substitute part maintain the same display and LED specifications?

A: Yes. Both parts feature identical Black and White FSTN Positive display mode, 36 x 24 pixel format, 13.0mm x 10.7mm viewing area (main part) / 14.5mm x 11.8mm viewing area (substitute), and Red-Green-Blue LED color configuration.

Q: What compliance certifications apply to the substitute part?

A: The IS15BSBFP4RGB maintains REACH Unaffected and EAR99 ECCN classifications identical to the original part. Additionally, it carries RoHS3 compliance certification.

Q: Is the substitute suitable for applications requiring extended temperature operation?

A: Yes. The IS15BSBFP4RGB supports operation from -15°C to 50°C, providing a wider temperature envelope than the original part's 0°C to 40°C range, making it suitable for broader environmental conditions.
