IRAM136-1060A Equivalent & Substitute Parts

Part Overview

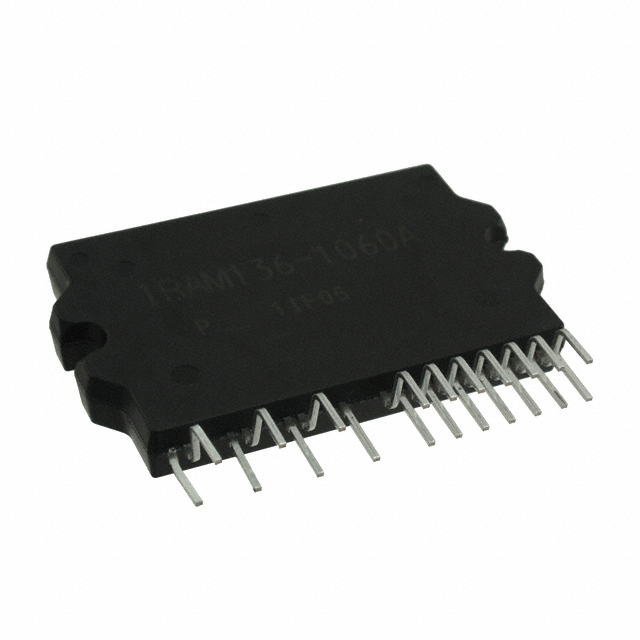

The IRAM136-1060A is a power driver module featuring IGBT technology designed for 3-phase motor control applications. This module integrates a 600V, 10A IGBT configuration in a 29-PowerSSIP package with 21 formed leads and through-hole mounting. The component is classified as obsolete, making identification of suitable substitute parts essential for ongoing system support and new design implementations.

Substiute Parts

IRAM136-1060A

Infineon TechnologiesIn Stock: 1603IRAM136-1060A Datasheet

Current PartRFQ

IKCM20L60GDXKMA1

Infineon TechnologiesIn Stock: 89301IKCM20L60GDXKMA1 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the IRAM136-1060A is determined by the following critical parameters that must remain consistent or be compatible with the original application:

• Voltage Rating: 600 V (primary electrical constraint)
• Configuration: 3 Phase (functional requirement for motor control)
• Voltage Isolation: 2000 Vrms (safety and isolation specification)
• Mounting Type: Through Hole (PCB integration requirement)
• Product Type: IGBT Power Driver Module (functional equivalence)

The substitute part IKCM20L60GDXKMA1 maintains the same voltage rating, isolation specification, mounting type, and 3-phase configuration. The current rating increases from 10 A to 20 A, which represents an uprated capability suitable for applications requiring higher current handling while maintaining backward compatibility with the original 10 A design envelope.

Parameter Comparison

Engineering Selection Recommendations

The IKCM20L60GDXKMA1 is the manufacturer-recommended substitute for the obsolete IRAM136-1060A. Both components are manufactured by Infineon Technologies and share identical voltage ratings, isolation specifications, and 3-phase configuration requirements.

The substitute part carries Active product status, ensuring ongoing availability and manufacturer support. Both components maintain REACH Unaffected status and unlimited moisture sensitivity classification, indicating equivalent environmental compliance and handling requirements.

The primary design consideration is the package transition from 29-PowerSSIP to 24-PowerDIP format. This change requires PCB layout modification to accommodate the different lead configuration and physical dimensions. The increased current rating of 20 A provides design margin for applications originally specified at 10 A.

Frequently Asked Questions (FAQ)

Q: Can IKCM20L60GDXKMA1 directly replace IRAM136-1060A without PCB modification?

A: No. The package formats differ: IRAM136-1060A uses 29-PowerSSIP with 21 formed leads, while IKCM20L60GDXKMA1 uses 24-PowerDIP format. PCB layout changes are required to accommodate the different lead pattern and physical dimensions.

Q: Are the electrical specifications compatible between these parts?

A: Yes. Both components share 600 V voltage rating, 2000 Vrms isolation, 3-phase configuration, and through-hole mounting. The 20 A current rating of the substitute exceeds the original 10 A specification, providing additional capacity.

Q: What is the significance of the product status change from Obsolete to Active?

A: The Active status of IKCM20L60GDXKMA1 ensures continued manufacturer support, availability, and technical documentation. The obsolete status of IRAM136-1060A indicates end-of-life status with limited future availability.

Q: Are there any compliance or certification differences?

A: Both parts maintain identical REACH Unaffected status and unlimited moisture sensitivity classification (MSL 1). No compliance differences exist between the two components.

Q: What design considerations apply when transitioning to the substitute part?

A: Primary considerations include PCB footprint redesign for the 24-PowerDIP package, verification of lead spacing compatibility with existing connector interfaces, and thermal management assessment for the uprated 20 A current capability.
