IPL1-120-01-S-D-P Equivalent & Substitute Parts

Part Overview

The IPL1-120-01-S-D-P is a rectangular connector header manufactured by Samtec Inc. within the Mini Mate® IPL1 series. This through-hole mounted connector features 40 positions arranged in 2 rows with 0.100" (2.54mm) pitch, designed for board-to-cable/wire applications. The part is currently active in production with 971 units in stock. Identifying equivalent substitute parts is necessary to ensure design flexibility, manage supply chain continuity, and maintain component availability across manufacturing cycles.

Substiute Parts

IPL1-120-01-S-D-P

Samtec Inc.In Stock: 1047IPL1-120-01-S-D-P Datasheet

Current PartRFQ

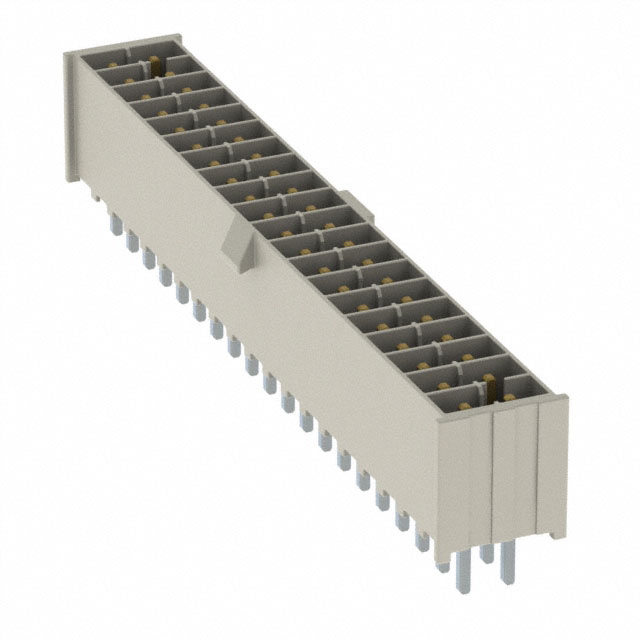

IPL1-120-01-S-D-K

Samtec Inc.In Stock: 1514IPL1-120-01-S-D-K Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

The IPL1-120-01-S-D-K qualifies as a direct substitute for the IPL1-120-01-S-D-P based on identical electrical and mechanical parameters. Substitution eligibility is determined by the following critical parameters:

• Connector type, contact type, and series designation (Header, Male Pin, Mini Mate® IPL1)
• Position count and row configuration (40 positions, 2 rows)
• Pitch specifications (0.100" mating pitch, 0.100" row spacing)
• Mounting and termination method (Through Hole, Solder)
• Shrouding configuration (Shrouded - 4 Wall)
• Contact materials and finishes (Phosphor Bronze with Gold mating finish and Tin post finish)
• Insulation material (Liquid Crystal Polymer)
• Operating temperature range (-55°C ~ 125°C)
• Voltage rating (675VAC, 954VDC)
• Compliance certifications (ROHS3 Compliant, UL94 V-0)

Both parts share identical base product number IPL1-120, confirming functional equivalence.

Parameter Comparison

Engineering Selection Recommendations

Both the IPL1-120-01-S-D-P and IPL1-120-01-S-D-K are active production parts with identical electrical and mechanical specifications. Selection between these parts may be based on inventory availability. The IPL1-120-01-S-D-K currently maintains higher stock levels at 1441 units compared to 971 units for the IPL1-120-01-S-D-P. Both parts maintain ROHS3 compliance and UL94 V-0 flammability certification, meeting regulatory requirements for industrial and commercial applications. The identical base product number IPL1-120 confirms functional interchangeability in all circuit applications.

Frequently Asked Questions (FAQ)

Q: Are IPL1-120-01-S-D-P and IPL1-120-01-S-D-K electrically identical?

A: Yes. Both parts share identical electrical specifications including voltage rating (675VAC, 954VDC), operating temperature range (-55°C ~ 125°C), contact materials (Phosphor Bronze), and contact finishes (Gold mating, Tin post).

Q: Can these parts be used interchangeably in PCB designs?

A: Yes. Both parts have identical mechanical dimensions, pitch specifications (0.100"), row spacing (0.100"), mounting type (Through Hole), and shrouding configuration (Shrouded - 4 Wall). PCB footprints and assembly processes require no modification.

Q: What is the difference between these two part numbers?

A: The parts are functionally equivalent. The difference in part number designation reflects internal Samtec manufacturing or packaging variations not specified in the provided technical parameters.

Q: Are both parts RoHS compliant?

A: Yes. Both IPL1-120-01-S-D-P and IPL1-120-01-S-D-K are ROHS3 compliant with UL94 V-0 flammability rating.

Q: Which part should be selected for new designs?

A: Either part is suitable for new designs. Selection may be based on current inventory availability or supply chain considerations. The IPL1-120-01-S-D-K currently has higher stock availability.
