IPL1-115-01-L-D-P Equivalent & Substitute Parts

Part Overview

The IPL1-115-01-L-D-P is a rectangular connector header manufactured by Samtec Inc. within the Mini Mate® IPL1 series. This through-hole mounted connector features 30 positions arranged in 2 rows with 0.100" (2.54mm) pitch spacing, designed for board-to-cable/wire applications. The part is currently active in production with full inventory availability. Identifying equivalent substitute parts is necessary to ensure supply chain flexibility, optimize procurement options, and maintain design compatibility across manufacturing batches and sourcing scenarios.

Substiute Parts

IPL1-115-01-L-D-P

Samtec Inc.In Stock: 1061IPL1-115-01-L-D-P Datasheet

Current PartRFQ

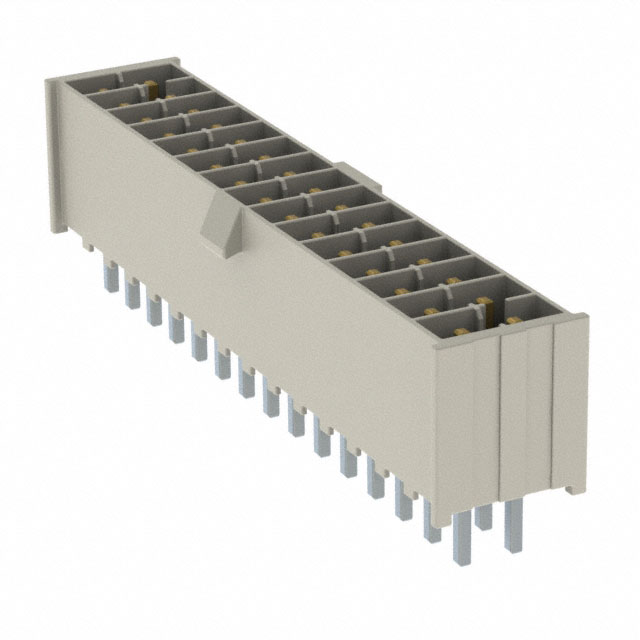

IPL1-115-01-L-D-K

Samtec Inc.In Stock: 79335IPL1-115-01-L-D-K Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

The IPL1-115-01-L-D-P has one identified substitute part: IPL1-115-01-L-D-K. Both parts belong to the same Mini Mate® IPL1 series manufactured by Samtec Inc. and share identical electrical and mechanical specifications across all critical parameters that determine functional compatibility.

The substitution is valid based on the following matching parameters:

• Connector type, contact type, and contact configuration (Header, Male Pin, 30 positions, 2 rows)
• Pitch specifications (0.100" mating pitch, 0.100" row spacing)
• Mounting and termination method (Through Hole, Solder)
• Contact materials and finishes (Phosphor Bronze with Gold mating finish and Tin post finish)
• Insulation material and shrouding design (Liquid Crystal Polymer, Shrouded - 4 Wall)
• Electrical ratings (675VAC, 954VDC)
• Operating temperature range (-55°C ~ 125°C)
• Compliance certifications (ROHS3 Compliant, UL94 V-0)
• Moisture sensitivity level (MSL 1)

The only difference between these parts is the contact finish thickness specification on the post, which is not provided for the substitute part. This omission does not affect functional equivalence.

Parameter Comparison

Engineering Selection Recommendations

Both the IPL1-115-01-L-D-P and IPL1-115-01-L-D-K are active production parts manufactured by Samtec Inc. with identical electrical and mechanical specifications. Both parts carry ROHS3 compliance and UL94 V-0 flammability certification, meeting regulatory requirements for industrial and commercial applications.

Selection between these parts should be based on inventory availability and procurement lead times. The IPL1-115-01-L-D-K currently maintains higher stock levels (79,250 pcs) compared to the IPL1-115-01-L-D-P (1,015 pcs), making it the preferred choice for applications requiring immediate availability or large-volume orders. Both parts are functionally interchangeable for all applications within the specified operating temperature range (-55°C ~ 125°C) and voltage ratings (675VAC, 954VDC).

Frequently Asked Questions (FAQ)

Q: Are IPL1-115-01-L-D-P and IPL1-115-01-L-D-K fully interchangeable?

A: Yes. Both parts are functionally equivalent. They share identical connector type, position count, pitch spacing, contact materials, finishes, insulation material, shrouding configuration, mounting method, and electrical ratings. They can be used interchangeably in board-to-cable/wire applications without design modification.

Q: What is the difference between these two part numbers?

A: The part numbers differ only in the last character (P versus K). All provided electrical and mechanical specifications are identical. The difference may relate to internal Samtec manufacturing or packaging designations not detailed in the available specifications.

Q: Do both parts meet the same compliance standards?

A: Yes. Both IPL1-115-01-L-D-P and IPL1-115-01-L-D-K are ROHS3 compliant and carry UL94 V-0 flammability certification. Both have MSL 1 (Unlimited) moisture sensitivity level.

Q: Can I substitute one part for the other in existing designs?

A: Yes. No design changes are required. The parts are mechanically and electrically identical, with matching pitch, position count, contact configuration, and electrical ratings. Existing PCB layouts and mating connectors will accommodate either part without modification.

Q: Which part should I choose for new designs?

A: Either part is suitable for new designs. Selection should be based on procurement availability and lead time requirements. The IPL1-115-01-L-D-K currently has significantly higher inventory availability.

Q: Are the contact finishes identical?

A: Yes. Both parts feature gold-plated mating contacts (10.0µin / 0.25µm thickness) and tin-plated posts. Contact material is phosphor bronze for both parts.

Q: What is the operating temperature range for both parts?

A: Both parts operate across the identical temperature range of -55°C to 125°C, suitable for industrial and commercial applications.
