IPL1-110-02-LM-D-K Equivalent & Substitute Parts

Part Overview

The IPL1-110-02-LM-D-K is a surface mount rectangular connector header manufactured by Samtec Inc. as part of the Mini Mate® IPL1 series. This connector is a 20-position, 2-row header with 0.100" (2.54mm) pitch spacing, designed for board-to-cable/wire applications. The part is currently active in production status with 775 units in stock. Equivalent and substitute parts are identified to support procurement flexibility, inventory management, and supply chain continuity.

Substiute Parts

IPL1-110-02-LM-D-K

Samtec Inc.In Stock: 861IPL1-110-02-LM-D-K Datasheet

Current PartRFQ

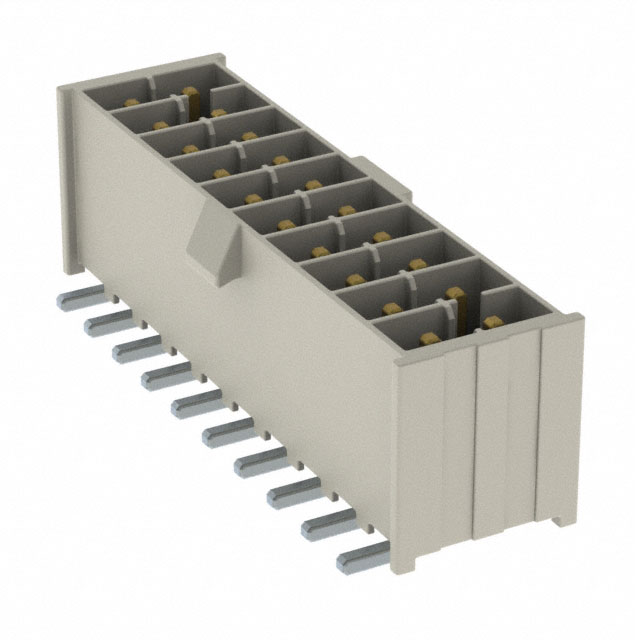

IPL1-110-02-L-D-K

Samtec Inc.In Stock: 1402IPL1-110-02-L-D-K Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the IPL1-110-02-LM-D-K is based on electrical and mechanical parameter equivalence within the Mini Mate® IPL1 series. The substitute part IPL1-110-02-L-D-K maintains identical specifications across all critical parameters that define connector functionality and compatibility:

Key Parameters for Substitution:

• Connector type, contact type, and gender (Header, Male Pin)
• Position count and row configuration (20 positions, 2 rows)
• Pitch and row spacing (0.100" / 2.54mm)
• Mounting method (Surface Mount)
• Shrouding configuration (Shrouded - 4 Wall)
• Termination and fastening type (Solder, Locking Ramp)
• Contact material and finish specifications
• Insulation material and electrical ratings
• Operating temperature range and voltage ratings
• Compliance certifications (RoHS3, UL94 V-0)

The substitute part differs only in the connector designation code (LM vs. L), which reflects internal Samtec product line variations that do not affect electrical or mechanical compatibility.

Parameter Comparison

Engineering Selection Recommendations

Both the IPL1-110-02-LM-D-K and IPL1-110-02-L-D-K are active production parts manufactured by Samtec Inc. with identical electrical and mechanical specifications. Selection between these parts may be based on inventory availability and procurement lead times. The IPL1-110-02-L-D-K offers higher stock availability at 1340 units compared to 775 units for the IPL1-110-02-LM-D-K. Both parts maintain ROHS3 compliance and UL94 V-0 flammability certification, meeting regulatory requirements for industrial and commercial applications. The MSL rating of 1 (Unlimited) indicates no moisture sensitivity constraints for storage and handling.

Frequently Asked Questions (FAQ)

Q: Are IPL1-110-02-LM-D-K and IPL1-110-02-L-D-K electrically interchangeable?

A: Yes. Both parts are electrically equivalent with identical voltage ratings (675VAC, 954VDC), contact materials (Phosphor Bronze), and operating temperature ranges (-55°C ~ 125°C).

Q: Are these parts mechanically compatible in the same PCB footprint?

A: Yes. Both parts share identical mechanical specifications including pitch (0.100" / 2.54mm), row spacing (0.100" / 2.54mm), number of positions (20), row configuration (2 rows), mounting type (Surface Mount), and shrouding (Shrouded - 4 Wall).

Q: What is the difference between the LM and L designations in the part numbers?

A: The LM and L designations represent internal Samtec product line variations. These designations do not affect electrical or mechanical compatibility, and both parts are functionally equivalent within the Mini Mate® IPL1 series.

Q: Are both parts RoHS compliant?

A: Yes. Both IPL1-110-02-LM-D-K and IPL1-110-02-L-D-K are ROHS3 compliant.

Q: What is the moisture sensitivity level for these connectors?

A: Both parts have an MSL rating of 1 (Unlimited), indicating no moisture sensitivity constraints for storage, handling, or shelf life.

Q: Can these parts be used in high-temperature applications?

A: Yes. Both parts are rated for operating temperatures from -55°C to 125°C, suitable for industrial and commercial temperature environments.
