IPL1-110-01-L-D-P Equivalent & Substitute Parts

Part Overview

The IPL1-110-01-L-D-P is a rectangular connector header manufactured by Samtec Inc. as part of the Mini Mate® IPL1 series. This through-hole connector features 20 positions arranged in 2 rows with 0.100" (2.54mm) pitch spacing, designed for board-to-cable/wire applications. The part is currently active in production with 817 units in stock. Substitute parts are identified when electrical and mechanical parameters remain within the allowed specifications for this connector category, ensuring functional compatibility in target applications.

Substiute Parts

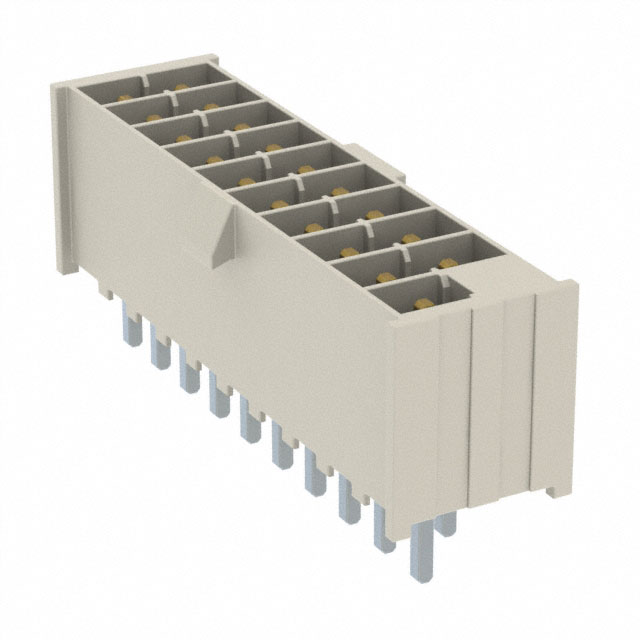

IPL1-110-01-L-D-P

Samtec Inc.In Stock: 831IPL1-110-01-L-D-P Datasheet

Current PartRFQ

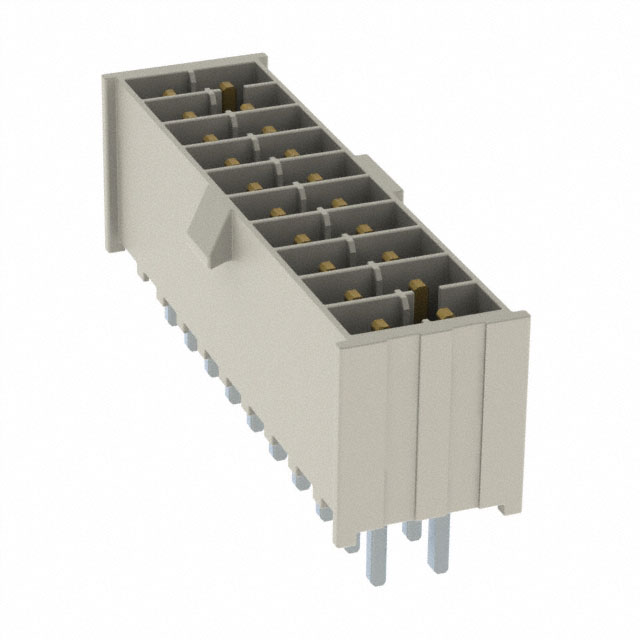

IPL1-110-01-L-D-K

Samtec Inc.In Stock: 5768IPL1-110-01-L-D-K Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the IPL1-110-01-L-D-P is determined by strict equivalence across the following critical parameters:

• Connector type (Header)
• Contact type (Male Pin)
• Number of positions (20)
• Number of rows (2)
• Pitch spacing (0.100" / 2.54mm)
• Row spacing (0.100" / 2.54mm)
• Mounting method (Through Hole)
• Shrouding configuration (Shrouded - 4 Wall)
• Termination method (Solder)
• Voltage rating (675VAC, 954VDC)
• Operating temperature range (-55°C ~ 125°C)
• Material compliance (ROHS3 Compliant, UL94 V-0)

The substitute part IPL1-110-01-L-D-K meets all these criteria, differing only in fastening type designation and inventory availability, with no impact on electrical or mechanical compatibility.

Parameter Comparison

Engineering Selection Recommendations

Both IPL1-110-01-L-D-P and IPL1-110-01-L-D-K are active production parts from Samtec Inc. with identical electrical and mechanical specifications. Both parts are ROHS3 compliant and carry UL94 V-0 material flammability certification. Selection between these parts should be based on inventory availability and lead time requirements. The IPL1-110-01-L-D-K offers higher stock levels (5707 units) compared to the IPL1-110-01-L-D-P (817 units), making it suitable for applications where supply chain continuity is a priority.

Frequently Asked Questions (FAQ)

Q: Can IPL1-110-01-L-D-K be used as a direct replacement for IPL1-110-01-L-D-P?

A: Yes. Both parts are electrically and mechanically equivalent. All critical parameters including connector type, position count, pitch spacing, voltage rating, operating temperature range, and material compliance are identical. No design modifications are required for substitution.

Q: What are the key parameters that determine substitution eligibility?

A: Substitution is valid when the following parameters match: connector type (Header), contact type (Male Pin), number of positions (20), number of rows (2), mating pitch (0.100" / 2.54mm), row spacing (0.100" / 2.54mm), mounting method (Through Hole), shrouding (Shrouded - 4 Wall), termination (Solder), voltage rating (675VAC, 954VDC), and operating temperature range (-55°C ~ 125°C).

Q: Are there any compliance or certification differences between these parts?

A: No. Both parts carry identical certifications: ROHS3 compliance, UL94 V-0 material flammability rating, EAR99 export classification, and HTSUS code 8536.69.4040. Moisture sensitivity level is 1 (Unlimited) for both parts.

Q: What is the difference between IPL1-110-01-L-D-P and IPL1-110-01-L-D-K?

A: The parts differ only in fastening type designation (the final letter in the part number). This difference does not affect electrical or mechanical compatibility. Both parts are suitable for identical applications.

Q: Are these parts suitable for high-temperature applications?

A: Yes. Both parts operate across the temperature range -55°C ~ 125°C, supporting applications in industrial and automotive environments within this range.

Q: What is the contact finish specification?

A: Mating contacts are gold-plated with 10.0µin (0.25µm) thickness. Post contacts are tin-finished. Contact material is phosphor bronze for both parts.
