IPL1-106-01-F-D-RA-P Equivalent & Substitute Parts

Part Overview

The IPL1-106-01-F-D-RA-P is an active rectangular connector header manufactured by Samtec Inc. within the Mini Mate® IPL1 series. This through-hole, right-angle connector accommodates 12 positions across 2 rows with 0.100" (2.54mm) pitch spacing and is designed for board-to-cable/wire applications. The connector features shrouded 4-wall construction with solder termination and locking ramp fastening. Finding equivalent substitute parts is necessary to ensure design flexibility, manage supply chain continuity, and maintain component availability across manufacturing cycles.

Substiute Parts

IPL1-106-01-F-D-RA-P

Samtec Inc.In Stock: 1011IPL1-106-01-F-D-RA-P Datasheet

Current PartRFQ

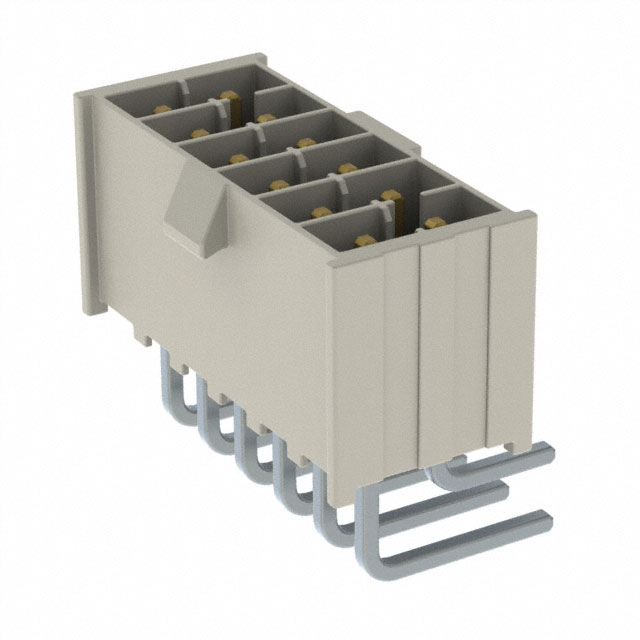

IPL1-106-01-F-D-RA-K

Samtec Inc.In Stock: 982IPL1-106-01-F-D-RA-K Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the IPL1-106-01-F-D-RA-P is determined by strict alignment of the following critical parameters:

• Connector type, contact type, and gender (Header, Male Pin)
• Position count and row configuration (12 positions, 2 rows)
• Mating pitch and row spacing (0.100" / 2.54mm)
• Mounting orientation and method (Through Hole, Right Angle)
• Shrouding design (Shrouded - 4 Wall)
• Termination method (Solder)
• Fastening mechanism (Locking Ramp)
• Operating temperature range (-55°C ~ 125°C)
• Voltage rating (675VAC, 954VDC)
• Material flammability compliance (UL94 V-0)
• RoHS compliance status (ROHS3 Compliant)

Parts meeting all these criteria within the Mini Mate® IPL1 series are considered direct substitutes. Variations in contact finish specifications or packaging format do not affect functional interchangeability when all electrical and mechanical parameters remain identical.

Parameter Comparison

Engineering Selection Recommendations

Both IPL1-106-01-F-D-RA-P and IPL1-106-01-F-D-RA-K are active products within the Mini Mate® IPL1 series and maintain identical electrical and mechanical specifications. Both parts are ROHS3 compliant, carry UL94 V-0 flammability certification, and operate across the same temperature and voltage ranges. Selection between these parts may be based on inventory availability, packaging format (Tube), or supply chain considerations, as all functional parameters are equivalent. Both parts are classified as EAR99 for export control purposes and carry the same HTSUS commodity code.

Frequently Asked Questions (FAQ)

Q: Are IPL1-106-01-F-D-RA-P and IPL1-106-01-F-D-RA-K functionally interchangeable?

A: Yes. Both parts share identical electrical and mechanical specifications, including connector type, position count, pitch spacing, mounting method, shrouding design, termination type, and fastening mechanism. They are direct substitutes within the Mini Mate® IPL1 series.

Q: What determines substitution eligibility for this connector header?

A: Substitution is determined by matching the connector type (Header), contact type (Male Pin), position configuration (12 positions, 2 rows), mating pitch (0.100" / 2.54mm), row spacing (0.100" / 2.54mm), mounting orientation (Through Hole, Right Angle), shrouding design (Shrouded - 4 Wall), termination method (Solder), fastening type (Locking Ramp), operating temperature range (-55°C ~ 125°C), voltage rating (675VAC, 954VDC), and compliance certifications (UL94 V-0, ROHS3).

Q: Does packaging format affect part compatibility?

A: No. Both parts are supplied in Tube packaging. Packaging format does not affect electrical or mechanical compatibility; it pertains only to order quantity and handling logistics.

Q: Are both parts RoHS compliant?

A: Yes. Both IPL1-106-01-F-D-RA-P and IPL1-106-01-F-D-RA-K are ROHS3 compliant and carry UL94 V-0 flammability certification.

Q: What is the moisture sensitivity level for these connectors?

A: Both parts carry Moisture Sensitivity Level (MSL) 1, indicating unlimited shelf life without special moisture control requirements.
