IPL1-105-02-F-D-P Equivalent & Substitute Parts

Part Overview

The IPL1-105-02-F-D-P is a surface mount rectangular connector header manufactured by Samtec Inc. as part of the Mini Mate® IPL1 series. This connector is designed for board-to-cable/wire applications with 10 positions arranged in 2 rows at 0.100" (2.54mm) pitch. The part is currently active in production with 968 units in stock. Substitute parts are identified when inventory constraints, lead time requirements, or procurement preferences necessitate alternative sourcing while maintaining electrical and mechanical compatibility.

Substiute Parts

IPL1-105-02-F-D-P

Samtec Inc.In Stock: 1022IPL1-105-02-F-D-P Datasheet

Current PartRFQ

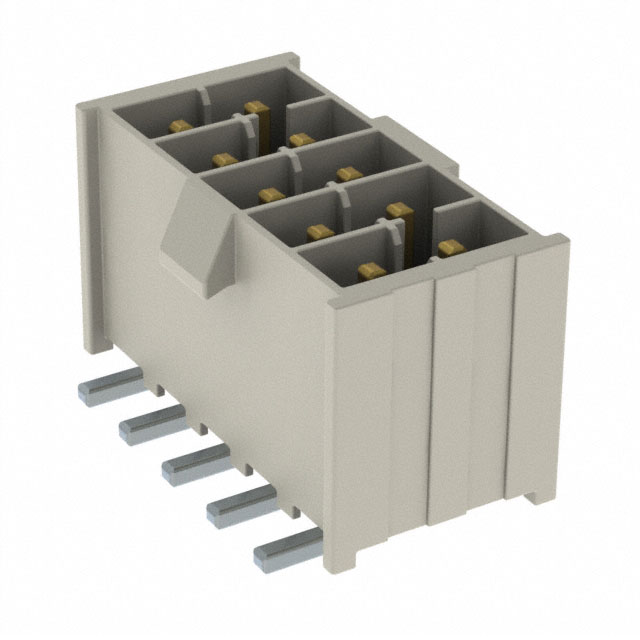

IPL1-105-02-F-D-K

Samtec Inc.In Stock: 917IPL1-105-02-F-D-K Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the IPL1-105-02-F-D-P is determined by strict equivalence across the following critical parameters:

• Manufacturer and Series: Samtec Inc. Mini Mate® IPL1 series
• Connector configuration: Header, male pin contact type
• Position count and arrangement: 10 positions in 2 rows
• Pitch specifications: 0.100" (2.54mm) mating pitch and row spacing
• Mounting and termination: Surface mount with solder termination
• Shrouding and fastening: Shrouded 4-wall design with locking ramp
• Contact materials and finishes: Phosphor bronze with gold mating finish
• Insulation material: Liquid Crystal Polymer (LCP)
• Electrical ratings: 675VAC / 954VDC voltage rating
• Compliance: ROHS3 compliant, UL94 V-0 flammability rating
• Thermal range: -55°C ~ 125°C operating temperature

The substitute part IPL1-105-02-F-D-K meets all these criteria and is therefore electrically and mechanically interchangeable.

Parameter Comparison

Engineering Selection Recommendations

Both IPL1-105-02-F-D-P and IPL1-105-02-F-D-K are active production parts from Samtec Inc. with identical electrical and mechanical specifications. Selection between these parts should be based on inventory availability and procurement lead times. Both parts are ROHS3 compliant and carry UL94 V-0 flammability certification, meeting regulatory requirements for industrial and commercial applications. The IPL1-105-02-F-D-P currently has higher inventory availability at 968 units, while the IPL1-105-02-F-D-K has 810 units in stock. Both parts are suitable for applications requiring surface mount rectangular connectors with 10-position, 2-row configuration at 2.54mm pitch.

Frequently Asked Questions (FAQ)

Q: Are IPL1-105-02-F-D-P and IPL1-105-02-F-D-K electrically interchangeable?

A: Yes. Both parts share identical electrical specifications including voltage rating (675VAC, 954VDC), operating temperature range (-55°C ~ 125°C), contact materials (phosphor bronze with gold mating finish), and insulation material (LCP). They are direct electrical equivalents.

Q: Are these parts mechanically interchangeable?

A: Yes. Both parts have identical mechanical specifications: 10 positions in 2 rows at 0.100" (2.54mm) pitch, surface mount configuration, shrouded 4-wall design, locking ramp fastening, and identical contact dimensions (0.215" mating length, 0.320" insulation height).

Q: What is the difference between these two part numbers?

A: The parts are functionally equivalent. The difference in part number designation (suffix -P versus -K) reflects internal Samtec manufacturing or packaging variations that do not affect electrical or mechanical performance.

Q: Are both parts RoHS compliant?

A: Yes. Both IPL1-105-02-F-D-P and IPL1-105-02-F-D-K are ROHS3 compliant and carry UL94 V-0 flammability certification.

Q: What is the moisture sensitivity level for these connectors?

A: Both parts have MSL 1 (Unlimited), indicating no moisture sensitivity restrictions for storage or handling.

Q: Can these connectors be used in high-temperature applications?

A: Yes. Both parts are rated for operating temperatures from -55°C to 125°C, suitable for industrial and commercial temperature environments within this range.

Q: Are there any packaging differences between these parts?

A: Both parts are supplied in tube packaging. Current inventory shows 968 units for IPL1-105-02-F-D-P and 810 units for IPL1-105-02-F-D-K.
