IPD1-20-D-P Equivalent & Substitute Parts

Part Overview

The IPD1-20-D-P is a 40-position rectangular connector housing from Samtec Inc.'s Mini Mate® IPD1 series. This receptacle connector is designed for applications requiring reliable in-line connections with crimp termination and latch lock fastening. The part is actively manufactured and widely stocked, with 734 units available in inventory. Finding equivalent substitute parts is necessary to ensure supply chain flexibility, optimize procurement timelines, and maintain design compatibility across production batches.

Substiute Parts

IPD1-20-D-P

Samtec Inc.In Stock: 784IPD1-20-D-P Datasheet

Current PartRFQ

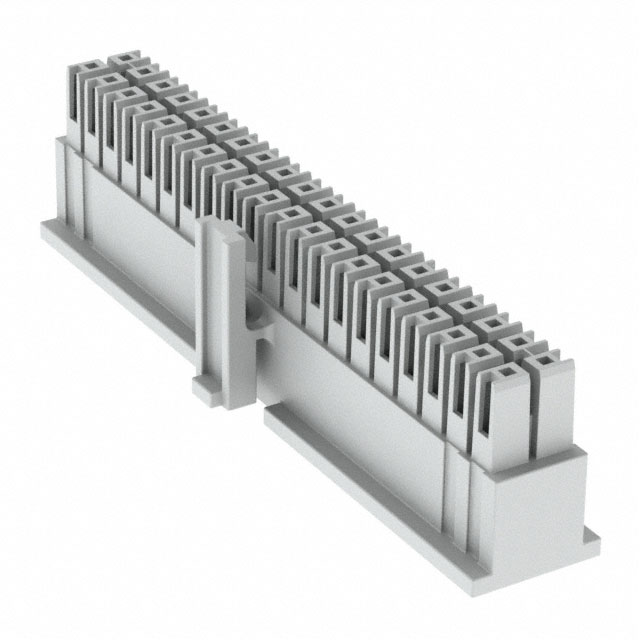

IPD1-20-D-K

Samtec Inc.In Stock: 8845IPD1-20-D-K Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the IPD1-20-D-P is determined by strict equivalence across the following critical parameters:

• Connector Type & Contact Configuration: Receptacle with female socket contacts
• Position Count & Pitch: 40 positions at 0.100" (2.54mm) pitch
• Physical Layout: 2 rows with 0.100" (2.54mm) row spacing
• Termination & Fastening: Crimp termination with latch lock fastening
• Material & Environmental Compliance: Polyamide (PA66) insulation, ROHS3 compliance, MSL 1 rating

The substitute part IPD1-20-D-K meets all these criteria, confirming direct functional and mechanical interchangeability within the Mini Mate® IPD1 series.

Parameter Comparison

Engineering Selection Recommendations

Both IPD1-20-D-P and IPD1-20-D-K are active products from Samtec Inc. with full ROHS3 compliance and identical electrical and mechanical specifications. Selection between these parts should be based on inventory availability and procurement lead times. The IPD1-20-D-K currently maintains higher stock levels (8,791 units) compared to the IPD1-20-D-P (734 units), making it a viable alternative for applications requiring expedited delivery or bulk procurement. Both parts carry MSL 1 rating, indicating no moisture sensitivity restrictions during storage and handling.

Frequently Asked Questions (FAQ)

Q: Are IPD1-20-D-P and IPD1-20-D-K fully interchangeable?

A: Yes. Both parts are identical in electrical performance, mechanical dimensions, contact configuration, and termination method. They are direct substitutes within the Mini Mate® IPD1 series.

Q: What determines substitution eligibility for this connector housing?

A: Substitution is valid when parts share identical connector type (receptacle), contact type (female socket), position count (40), pitch (2.54mm), row configuration (2 rows at 2.54mm spacing), termination method (crimp), fastening type (latch lock), and material composition (PA66 nylon).

Q: Do these parts require different handling or storage procedures?

A: No. Both parts carry MSL 1 rating, meaning they have unlimited shelf life and require no special moisture control during storage or handling.

Q: Can these connectors be used with different contact types?

A: No. These are receptacle housings designed for female socket contacts only. The housing design is specific to this contact configuration.

Q: Are there any compliance differences between the two parts?

A: Both parts are ROHS3 compliant. The IPD1-20-D-K includes additional REACH Unaffected documentation, but this does not affect functional or mechanical compatibility.
