IPD1-15-D-R Equivalent & Substitute Parts

Part Overview

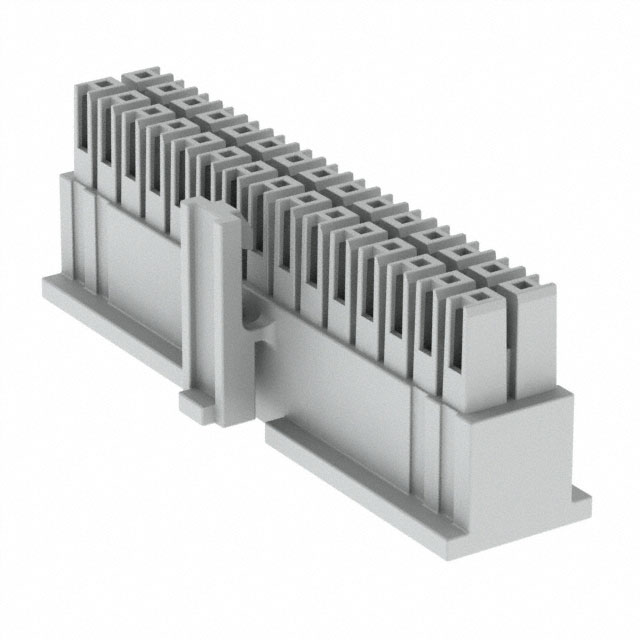

The IPD1-15-D-R is a 30-position rectangular connector housing from Samtec Inc.'s Mini Mate® IPD1 series. This receptacle connector features a 0.100" (2.54mm) pitch configuration with dual-row layout and crimp contact termination. The part maintains Active product status and is RoHS3 compliant. Substitute parts are identified when equivalent electrical and mechanical parameters align with the main part specifications, enabling direct functional replacement in applications where the connector housing meets system requirements.

Substiute Parts

IPD1-15-D-R

Samtec Inc.In Stock: 920IPD1-15-D-R Datasheet

Current PartRFQ

IPD1-15-D

Samtec Inc.In Stock: 2289IPD1-15-D Datasheet

SimilarRFQ

IPD1-15-D-K

Samtec Inc.In Stock: 1735IPD1-15-D-K Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the IPD1-15-D-R are identified based on strict equivalence across the following critical parameters:

• Connector type (Receptacle)
• Contact type (Female Socket)
• Number of positions (30)
• Pitch configuration (0.100" / 2.54mm)
• Row count and spacing (2 rows, 0.100" spacing)
• Mounting type (Free Hanging In-Line)
• Contact termination method (Crimp)
• Fastening mechanism (Latch Lock)
• Insulation material (Polyamide PA66, Nylon 6/6)
• Compliance status (RoHS3)
• MSL rating (1 - Unlimited)

The IPD1-15-D-R differs from substitute parts only in the presence of a polarizing key feature designation. Substitutes IPD1-15-D and IPD1-15-D-K maintain all core electrical and mechanical parameters while offering variations in polarization capability.

Parameter Comparison

Engineering Selection Recommendations

All three parts—IPD1-15-D-R, IPD1-15-D, and IPD1-15-D-K—maintain Active product status with full RoHS3 compliance and identical core specifications. Selection between these parts depends on application-specific polarization requirements:

• IPD1-15-D-R and IPD1-15-D: Use when polarization is not required or when mating with non-polarized connector designs.
• IPD1-15-D-K: Use when polarization is required to prevent incorrect mating orientation.

All parts are suitable for applications requiring 30-position, 2.54mm pitch receptacle connectors with crimp termination and latch-lock fastening. Inventory availability varies across the three options, with IPD1-15-D offering the highest stock level at 2250 pieces.

Frequently Asked Questions (FAQ)

Q: Can IPD1-15-D-K be used as a direct replacement for IPD1-15-D-R?

A: Yes. The IPD1-15-D-K maintains all electrical and mechanical parameters of the IPD1-15-D-R. The addition of a polarizing key in the IPD1-15-D-K provides enhanced mating control but does not prevent functional compatibility in applications where polarization is not critical.

Q: What is the difference between IPD1-15-D and IPD1-15-D-K?

A: The IPD1-15-D-K includes a polarizing key feature that prevents incorrect mating orientation. The IPD1-15-D lacks this feature. Both parts are otherwise electrically and mechanically identical.

Q: Are contacts included with these connector housings?

A: No. All three parts are housings only. Crimp contacts must be sourced separately and are not included in the package.

Q: Do these parts support different operating temperature ranges?

A: Operating temperature specifications are not provided in the part data. Consult the manufacturer's datasheet for thermal operating limits.

Q: What is the significance of the MSL rating of 1?

A: MSL 1 indicates unlimited shelf life with no moisture sensitivity restrictions. These parts do not require special moisture-controlled storage conditions.

Q: Can these receptacle housings mate with other Mini Mate® IPD1 series connectors?

A: Mating compatibility depends on the specific connector design. These receptacle housings are designed for the Mini Mate® IPD1 series and mate with corresponding plug connectors from the same series.
