IPD1-15-D-P-M Equivalent & Substitute Parts

Part Overview

The IPD1-15-D-P-M is a 30-position rectangular connector housing from Samtec Inc.'s Mini Mate® IPD1 series. This receptacle connector is designed for applications requiring 0.100" (2.54mm) pitch interconnections with dual-row configuration and crimp contact termination. The part is currently active in production with ROHS3 compliance and unlimited moisture sensitivity rating. Substitute parts are identified to provide alternative sourcing options while maintaining electrical and mechanical compatibility within the Mini Mate® IPD1 series specifications.

Substiute Parts

IPD1-15-D-P-M

Samtec Inc.In Stock: 1151IPD1-15-D-P-M Datasheet

Current PartRFQ

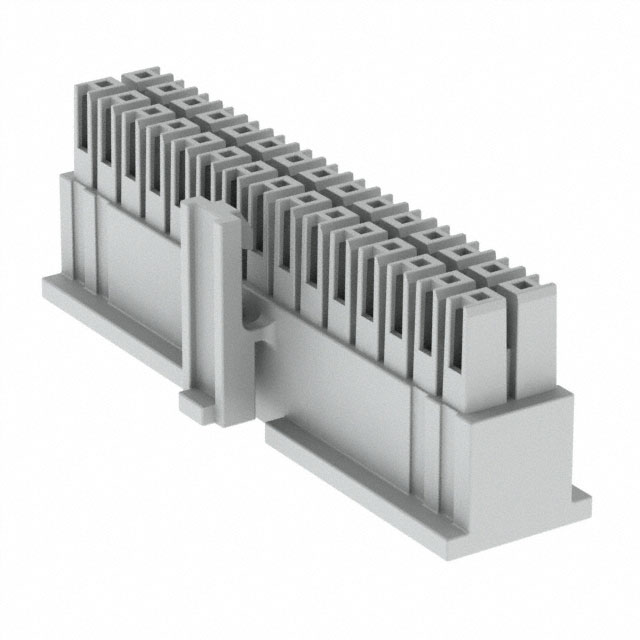

IPD1-15-D-K

Samtec Inc.In Stock: 1735IPD1-15-D-K Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution within the Mini Mate® IPD1 series is determined by equivalence across the following critical parameters:

• Connector type (Receptacle)
• Contact type (Female Socket)
• Position count (30)
• Pitch specification (0.100" / 2.54mm)
• Row configuration (2 rows at 0.100" spacing)
• Mounting method (Free Hanging In-Line)
• Termination method (Crimp)
• Fastening mechanism (Latch Lock)
• Housing color (White)
• Insulation material (Polyamide PA66)
• Compliance certifications (ROHS3)

The IPD1-15-D-K is classified as a direct substitute based on identical alignment across all these parameters. Variations in part number suffix reflect different internal design or manufacturing specifications that do not affect electrical or mechanical compatibility at the connector interface level.

Parameter Comparison

Engineering Selection Recommendations

Both IPD1-15-D-P-M and IPD1-15-D-K are active production parts with identical ROHS3 compliance and MSL ratings. Selection between these parts should be based on availability and lead time requirements. Both parts meet the same regulatory and environmental compliance standards. The IPD1-15-D-K currently maintains higher inventory availability (1665 pcs vs. 1072 pcs), which may influence procurement decisions for high-volume applications or time-sensitive projects.

Frequently Asked Questions (FAQ)

Q: Can IPD1-15-D-K be used as a direct replacement for IPD1-15-D-P-M?

A: Yes. Both parts are 30-position receptacle connectors within the Mini Mate® IPD1 series with identical electrical and mechanical specifications. They share the same pitch (0.100"), row configuration, contact type, termination method, and fastening mechanism. No design modifications are required for substitution.

Q: What do the different part number suffixes (-P-M vs. -K) indicate?

A: The suffix variations reflect internal design or manufacturing specifications within the Mini Mate® IPD1 series. These differences do not affect connector interface compatibility or performance characteristics relevant to circuit board integration.

Q: Are there any compliance differences between these parts?

A: No. Both parts carry identical ROHS3 compliance certification and MSL rating of 1 (Unlimited). They meet the same regulatory requirements for use in equivalent applications.

Q: Do these connectors include crimp contacts?

A: No. Both IPD1-15-D-P-M and IPD1-15-D-K are housing-only components. Crimp contacts must be sourced separately and are compatible with the crimp termination specification of these housings.

Q: What is the row spacing configuration?

A: Both connectors feature a 2-row configuration with 0.100" (2.54mm) spacing between rows, matching the standard pitch specification for Mini Mate® IPD1 series components.
