IPD1-14-D-P Equivalent & Substitute Parts

Part Overview

The IPD1-14-D-P is a 28-position rectangular connector housing manufactured by Samtec Inc. as part of the Mini Mate® IPD1 series. This receptacle connector features a 0.100" (2.54mm) pitch configuration with dual-row layout and crimp contact termination. The part is actively produced and widely used in applications requiring compact, polarized connector solutions. Substitute parts are identified to provide procurement flexibility, inventory management options, and continuity of supply for equivalent connector housings that maintain identical electrical and mechanical specifications.

Substiute Parts

IPD1-14-D-P

Samtec Inc.In Stock: 1017IPD1-14-D-P Datasheet

Current PartRFQ

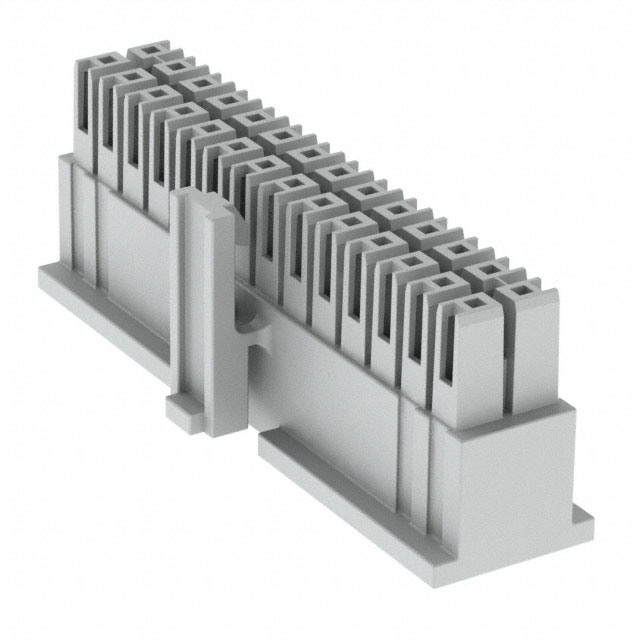

IPD1-14-D-K

Samtec Inc.In Stock: 995IPD1-14-D-K Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the IPD1-14-D-P are identified based on strict equivalence across all critical electrical and mechanical parameters. The substitution criteria are:

• Identical connector type (Receptacle)
• Identical contact type (Female Socket)
• Identical number of positions (28)
• Identical pitch configuration (0.100" / 2.54mm)
• Identical row count and spacing (2 rows, 0.100" spacing)
• Identical mounting type (Free Hanging In-Line)
• Identical contact termination method (Crimp)
• Identical fastening mechanism (Latch Lock)
• Identical color and polarizing features (White with Polarizing Key)
• Identical insulation material (Polyamide PA66, Nylon 6/6)
• Same manufacturer (Samtec Inc.)
• Same series (Mini Mate® IPD1)
• Equivalent compliance certifications (ROHS3, MSL 1)

The IPD1-14-D-K meets all these criteria and is classified as a direct substitute for the IPD1-14-D-P.

Parameter Comparison

Engineering Selection Recommendations

Both the IPD1-14-D-P and IPD1-14-D-K are active products manufactured by Samtec Inc. with identical electrical and mechanical specifications. Selection between these parts should be based on inventory availability and procurement lead times. Both parts carry ROHS3 compliance and MSL 1 rating, confirming equivalent environmental and regulatory standing. The IPD1-14-D-P currently maintains 986 units in stock, while the IPD1-14-D-K maintains 913 units. Either part is suitable for direct substitution in applications requiring 28-position, 2.54mm pitch receptacle connectors with crimp termination and latch lock fastening.

Frequently Asked Questions (FAQ)

Q: Can IPD1-14-D-K be used as a direct replacement for IPD1-14-D-P?

A: Yes. Both parts are identical across all electrical and mechanical parameters, including connector type, position count, pitch, row configuration, termination method, and fastening mechanism. They are interchangeable in all applications.

Q: Are there any differences in compliance or certifications between these parts?

A: No. Both parts carry ROHS3 compliance and MSL 1 (Unlimited) rating. They meet equivalent regulatory and environmental standards.

Q: What determines whether a part can substitute for the IPD1-14-D-P?

A: Substitution requires exact equivalence in connector type, contact type, position count, pitch, row spacing, mounting type, termination method, fastening type, color, polarizing features, insulation material, and manufacturer series. Any deviation in these parameters disqualifies a part from substitution.

Q: Do these connectors include contacts?

A: No. Both the IPD1-14-D-P and IPD1-14-D-K are housings only. Contacts must be sourced separately and crimped into the housing.

Q: What is the significance of the polarizing key feature?

A: The polarizing key ensures correct mating orientation between the receptacle housing and its corresponding plug connector, preventing incorrect insertion and potential circuit damage.
