IPD1-10-D-P Equivalent & Substitute Parts

Part Overview

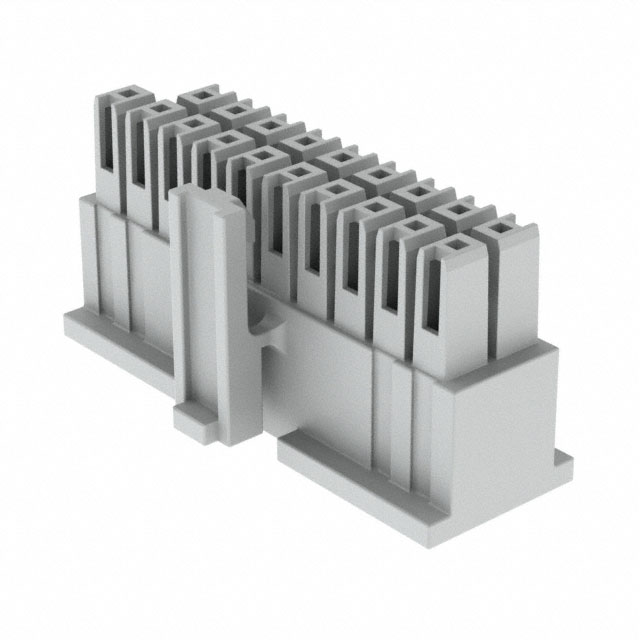

The IPD1-10-D-P is a 20-position rectangular connector housing manufactured by Samtec Inc. as part of the Mini Mate® IPD1 series. This receptacle connector features a 0.100" (2.54mm) pitch configuration with dual-row layout and crimp-type female socket contacts. The connector is designed for free-hanging in-line mounting applications and utilizes a latch lock fastening mechanism.

This connector remains in active product status. Equivalent substitute parts may be required due to inventory availability, lead time considerations, or specific application requirements while maintaining electrical and mechanical compatibility.

Substiute Parts

IPD1-10-D-P

Samtec Inc.In Stock: 796IPD1-10-D-P Datasheet

Current PartRFQ

69153-027LF

Amphenol ICC (FCI)In Stock: 161669153-027LF Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the IPD1-10-D-P is determined by strict equivalence across the following critical parameters:

• Connector type (Receptacle)
• Contact type (Female Socket)
• Number of positions (20)
• Pitch spacing (0.100" / 2.54mm)
• Row configuration (2 rows at 0.100" spacing)
• Mounting method (Free Hanging In-Line)
• Contact termination (Crimp)
• Fastening mechanism (Latch Lock)

The 69153-027LF from Amphenol ICC (FCI) meets all these core electrical and mechanical parameters, establishing it as a parametric equivalent. Differences in housing color, insulation material composition, and operating temperature range do not affect functional interchangeability for applications within the specified environmental limits of the original part.

Parameter Comparison

Engineering Selection Recommendations

Both the IPD1-10-D-P and 69153-027LF maintain active product status with full regulatory compliance. The IPD1-10-D-P carries ROHS3 certification, while the 69153-027LF holds standard RoHS compliance. Both parts are REACH unaffected and classified under ECCN EAR99.

Selection between these parts should be based on:

• Inventory availability and lead time requirements
• Housing color specification for the application (white vs. black)
• Thermal environment compatibility (the 69153-027LF specifies -40°C to 105°C operating range)
• Insulation material compatibility with the specific application environment
• Cost and procurement channel considerations

Both connectors are suitable for applications requiring 20-position, 2.54mm pitch receptacle housings with crimp termination and latch lock fastening.

Frequently Asked Questions (FAQ)

Q: Are the IPD1-10-D-P and 69153-027LF mechanically interchangeable?

A: Yes. Both connectors share identical pitch (0.100" / 2.54mm), row configuration (2 rows at 0.100" spacing), mounting type (free hanging in-line), and fastening mechanism (latch lock). They accept the same crimp contact specifications.

Q: Does the housing color difference affect electrical performance?

A: No. Housing color is a cosmetic specification. The white (IPD1-10-D-P) and black (69153-027LF) variants perform identically in electrical applications.

Q: What is the significance of the different insulation materials?

A: The IPD1-10-D-P uses Polyamide (PA66) Nylon 6/6, while the 69153-027LF uses modified Polyphenylene. Both materials provide adequate insulation for the specified applications. Material selection should align with the specific environmental and chemical exposure requirements of your application.

Q: Can I use the 69153-027LF in applications where the IPD1-10-D-P was originally specified?

A: Yes, provided the application environment falls within the operating temperature range of -40°C to 105°C. Both parts meet the same electrical and mechanical requirements for 20-position, 2.54mm pitch receptacle connector applications.

Q: Are contacts included with these housings?

A: No. Both the IPD1-10-D-P and 69153-027LF are connector housings only. Crimp contacts must be sourced separately and are compatible with both housing types.

Q: What are the regulatory compliance differences?

A: The IPD1-10-D-P is ROHS3 compliant, while the 69153-027LF is RoHS compliant. Both are REACH unaffected. For applications requiring ROHS3 certification specifically, the IPD1-10-D-P is the appropriate choice.
