IPD1-05-D-R Equivalent & Substitute Parts

Part Overview

The IPD1-05-D-R is a 10-position rectangular connector housing manufactured by Samtec Inc. as part of the Mini Mate® IPD1 series. This receptacle connector features a 0.100" (2.54mm) pitch configuration with dual rows and crimp-type female socket contacts. The part is actively produced and RoHS3 compliant, making it suitable for applications requiring standard rectangular interconnection in compact form factors. Substitute parts may be required due to inventory availability, supply chain considerations, or specific application requirements while maintaining electrical and mechanical compatibility.

Substiute Parts

IPD1-05-D-R

Samtec Inc.In Stock: 723IPD1-05-D-R Datasheet

Current PartRFQ

IPD1-05-D

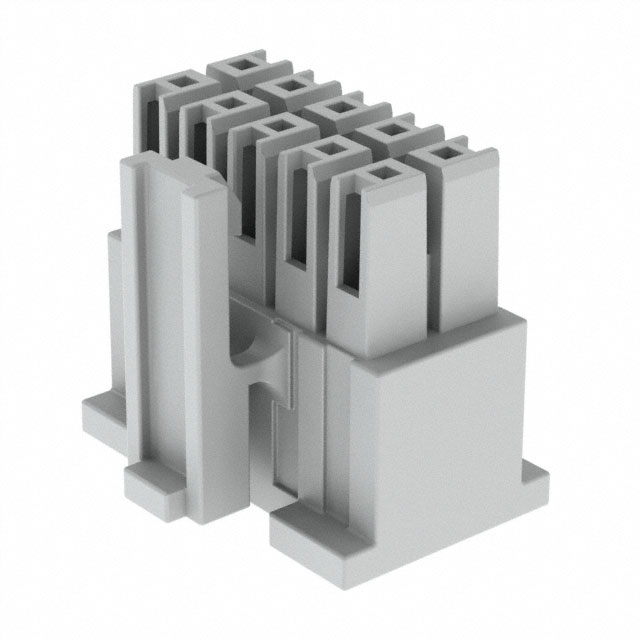

Samtec Inc.In Stock: 6359IPD1-05-D Datasheet

Parametric EquivalentRFQ

638393-1

TE Connectivity AMP ConnectorsIn Stock: 1004638393-1 Datasheet

Parametric EquivalentRFQ

69153-032LF

Amphenol ICC (FCI)In Stock: 76469153-032LF Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the IPD1-05-D-R are qualified based on strict electrical and mechanical parameter alignment. All substitute candidates maintain identical specifications for connector type (receptacle), contact type (female socket), number of positions (10), pitch (0.100"/2.54mm), row configuration (2 rows with 0.100" spacing), mounting type (free hanging in-line), contact termination (crimp), and fastening mechanism (latch lock). These parameters define the physical and electrical interface compatibility. Moisture sensitivity level (MSL 1) is maintained across all qualified substitutes. Variations in insulation material composition and housing color do not affect functional interchangeability when all primary parameters remain constant.

Parameter Comparison

Engineering Selection Recommendations

All three substitute parts maintain active product status and full compliance with RoHS regulations, ensuring long-term availability and regulatory alignment. The IPD1-05-D represents the closest substitute, being an identical part from the same manufacturer (Samtec Inc.) with the same series designation (Mini Mate® IPD1) and material composition. This option provides maximum design continuity with minimal risk.

The 638393-1 (TE Connectivity AMP Connectors) and 69153-032LF (Amphenol ICC) are cross-manufacturer equivalents that satisfy all critical electrical and mechanical parameters. Both maintain the required pitch, row configuration, contact type, and fastening mechanism. Material differences (PBT glass-filled and modified polyphenylene respectively) do not compromise functional interchangeability. Housing color variation (black versus white) is a cosmetic distinction without electrical significance.

Selection among these substitutes should be based on supply chain availability, cost considerations, and any application-specific requirements related to material properties or thermal performance. All parts carry MSL 1 rating, indicating no moisture sensitivity constraints during storage or handling.
