IPD1-04-S-K-R Equivalent & Substitute Parts

Part Overview

The IPD1-04-S-K-R is a 4-position rectangular connector receptacle housing manufactured by Samtec Inc. as part of the Mini Mate® IPD1 series. This connector is designed for applications requiring a 0.100" (2.54mm) pitch, single-row configuration with crimp termination and latch lock fastening. The part is currently active in production with ROHS3 compliance and unlimited moisture sensitivity rating (MSL 1). Substitute parts are identified when equivalent electrical and mechanical parameters are maintained across the same product series and manufacturer specifications.

Substiute Parts

IPD1-04-S-K-R

Samtec Inc.In Stock: 1061IPD1-04-S-K-R Datasheet

Current PartRFQ

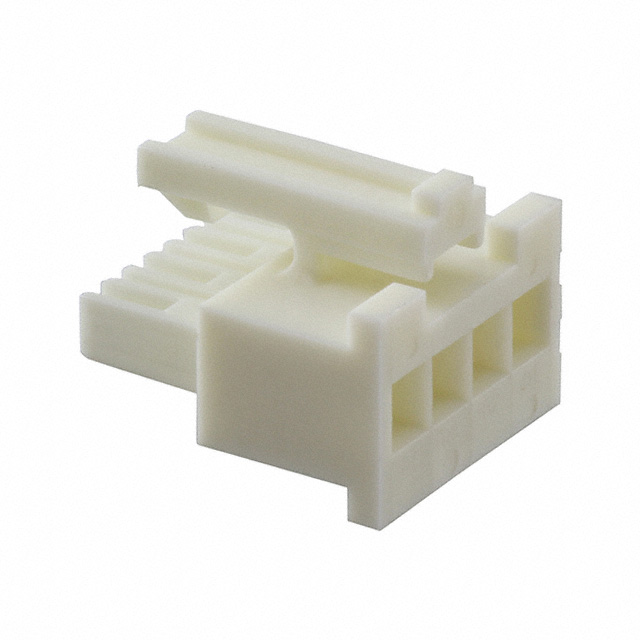

IPD1-04-S-K

Samtec Inc.In Stock: 2209IPD1-04-S-K Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the IPD1-04-S-K-R is determined by strict equivalence across the following critical parameters:

• Manufacturer & Series: Samtec Inc., Mini Mate® IPD1 series
• Connector Configuration: Receptacle, female socket contact type
• Electrical Interface: 4 positions, 0.100" (2.54mm) pitch, single row
• Mechanical Interface: Free hanging (in-line) mounting, crimp termination, latch lock fastening
• Physical Properties: White color, polyamide (PA66) insulation material
• Compliance: ROHS3 compliant, MSL 1 rating

The IPD1-04-S-K substitute part maintains all critical parameters identical to the main part number, with the exception of minor suffix designation differences that do not affect form, fit, or function within the Mini Mate® IPD1 ecosystem.

Parameter Comparison

Engineering Selection Recommendations

Both the IPD1-04-S-K-R and IPD1-04-S-K are active production parts from Samtec Inc. with identical ROHS3 compliance and MSL 1 ratings. Selection between these part numbers is based on availability and inventory status. The IPD1-04-S-K maintains higher stock availability (2180 pcs) compared to the IPD1-04-S-K-R (1001 pcs), making it suitable for high-volume procurement scenarios. Both parts satisfy equivalent electrical and mechanical requirements for Mini Mate® IPD1 series applications.

Frequently Asked Questions (FAQ)

Q: Can IPD1-04-S-K be used as a direct replacement for IPD1-04-S-K-R?

A: Yes. Both parts are functionally equivalent across all critical parameters: connector type, contact configuration, pitch, mounting method, termination type, and compliance ratings. The suffix designation difference does not affect form, fit, or function.

Q: Are there any compatibility concerns when substituting between these part numbers?

A: No. Both parts are receptacle housings within the same Mini Mate® IPD1 series with identical 4-position, 0.100" pitch configuration. They are mechanically and electrically interchangeable.

Q: What is the significance of the suffix difference between IPD1-04-S-K-R and IPD1-04-S-K?

A: The suffix designation reflects internal Samtec product line management but does not indicate functional differences. Both parts maintain identical specifications for connector type, contact type, pitch, mounting, termination, and compliance.

Q: Do these parts require specific contact types or mating connectors?

A: These are receptacle housings designed for crimp termination. Contacts are not included and must be sourced separately. Mating connectors must be compatible with the Mini Mate® IPD1 series 0.100" pitch specification.

Q: Are both parts suitable for high-reliability applications?

A: Both parts carry ROHS3 compliance and MSL 1 (unlimited moisture sensitivity) ratings, making them suitable for standard industrial and commercial applications. Specific application requirements should be evaluated against Samtec's detailed product specifications.
