IPD1-04-D-R Equivalent & Substitute Parts

Part Overview

The IPD1-04-D-R is an 8-position rectangular connector housing manufactured by Samtec Inc. as part of the Mini Mate® IPD1 series. This receptacle connector features a 0.100" (2.54mm) pitch, dual-row configuration, and crimp contact termination with latch lock fastening. The part is currently in active product status with ROHS3 compliance and unlimited moisture sensitivity rating (MSL 1).

Substitute parts are necessary when the original IPD1-04-D-R becomes unavailable, when design requirements permit alternative color or feature configurations, or when sourcing from multiple manufacturers is required for supply chain resilience.

Substiute Parts

IPD1-04-D-R

Samtec Inc.In Stock: 846IPD1-04-D-R Datasheet

Current PartRFQ

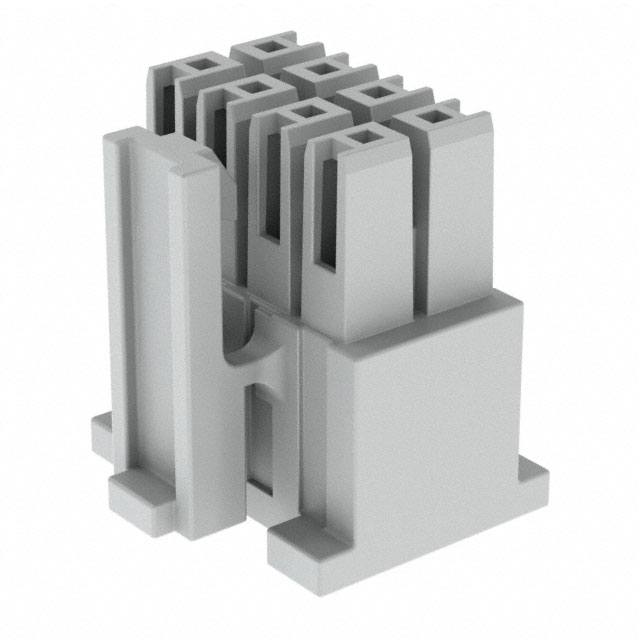

IPD1-04-D

Samtec Inc.In Stock: 1806IPD1-04-D Datasheet

SimilarRFQ

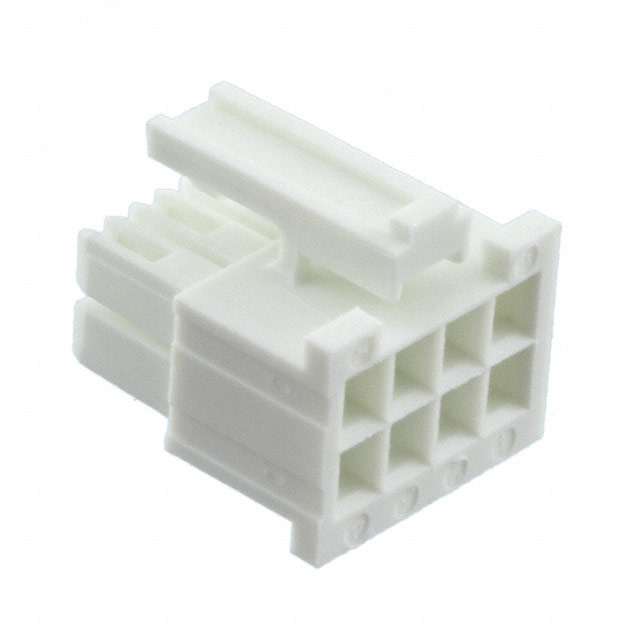

IPD1-04-D-K

Samtec Inc.In Stock: 25217IPD1-04-D-K Datasheet

SimilarRFQ

IPD1-04-D-K-M

Samtec Inc.In Stock: 1903IPD1-04-D-K-M Datasheet

SimilarRFQ

1456987-3

TE Connectivity AMP ConnectorsIn Stock: 18381456987-3 Datasheet

SimilarRFQ

1456987-7

TE Connectivity AMP ConnectorsIn Stock: 8941456987-7 Datasheet

SimilarRFQ

1745000-3

TE Connectivity AMP ConnectorsIn Stock: 32401745000-3 Datasheet

SimilarRFQ

69153-033LF

Amphenol ICC (FCI)In Stock: 118569153-033LF Datasheet

SimilarRFQ

9-965382-2

TE ConnectivityIn Stock: 390449-965382-2 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the IPD1-04-D-R is determined by strict equivalence across the following critical parameters:

• Connector Type & Contact Configuration: All substitutes must be receptacle housings with female socket contacts
• Electrical Interface: 8-position, dual-row configuration with 0.100" (2.54mm) pitch and row spacing
• Mechanical Interface: Free hanging in-line mounting with crimp termination and latch lock fastening
• Material Compatibility: Insulation material must be polyamide-based or equivalent thermoplastic polymer
• Regulatory Compliance: RoHS compliance required; MSL rating must be 1 or not applicable

Substitutes are grouped into three categories based on feature additions and manufacturer:

Category 1 - Samtec Mini Mate® IPD1 Series (Direct Equivalents)

• IPD1-04-D: Base housing without polarizing key
• IPD1-04-D-K: Housing with polarizing key feature
• IPD1-04-D-K-M: Housing with polarizing key and pick-and-place feature

Category 2 - TE Connectivity AMP Connectors (Color Variant)

• 1456987-3, 1456987-7: Black housing variant with glass-filled polyamide
• 1745000-3: Black housing, Micro Quadlok series with specified operating temperature range

Category 3 - Amphenol ICC & TE Connectivity (Alternative Manufacturers)

• 69153-033LF: Black housing, Mini-PV™ series with modified polyphenylene insulation
• 9-965382-2: Blue housing, Micro Quadlok series with PBT insulation

Parameter Comparison

Engineering Selection Recommendations

Primary Substitutes (Samtec Mini Mate® IPD1 Series)

IPD1-04-D and IPD1-04-D-K are the preferred substitutes when color-neutral applications permit white housing. Both maintain identical electrical and mechanical interfaces with the IPD1-04-D-R. IPD1-04-D-K adds polarizing key functionality for applications requiring keyed mating. IPD1-04-D-K-M includes pick-and-place features for automated assembly environments. All three maintain active product status and ROHS3 compliance.

Secondary Substitutes (TE Connectivity AMP Connectors)

1456987-3 and 1745000-3 are suitable when black housing is acceptable. Both feature glass-filled polyamide insulation and maintain all critical electrical and mechanical parameters. 1456987-3 is preferred for active product status. 1456987-7 is available but carries Last Time Buy status, indicating limited future availability.

Alternative Manufacturer Options

69153-033LF (Amphenol ICC) and 9-965382-2 (TE Connectivity) provide substitution when multi-source qualification is required. 69153-033LF specifies an extended operating temperature range (-40°C ~ 105°C) and modified polyphenylene insulation. 9-965382-2 offers the widest operating temperature range (-40°C ~ 130°C) with PBT insulation and is available in high volume (39,023 units in stock).

Compliance Considerations

All recommended substitutes maintain RoHS compliance. IPD1-04-D, IPD1-04-D-K, and IPD1-04-D-K-M are ROHS3 compliant. TE Connectivity and Amphenol parts meet RoHS requirements. Moisture sensitivity rating (MSL 1) is maintained across all Samtec and TE Connectivity options. IPD1-04-D-K-M lists MSL as not applicable due to pick-and-place processing.

Frequently Asked Questions (FAQ)

Q: Can IPD1-04-D-R be replaced with IPD1-04-D?

A: Yes. Both parts are identical in electrical and mechanical specifications. The only difference is the base part number designation. IPD1-04-D is available in higher inventory (1,738 units) and is suitable for direct substitution.

Q: What is the difference between IPD1-04-D-K and IPD1-04-D?

A: IPD1-04-D-K includes a polarizing key feature that prevents incorrect mating orientation. All other electrical and mechanical parameters are identical. Use IPD1-04-D-K only if keyed mating is required by the application design.

Q: Can I use black housing connectors (1456987-3, 1745000-3) instead of white (IPD1-04-D-R)?

A: Yes, if the application permits color variation. All black housing substitutes maintain identical pitch, position count, row configuration, and contact termination. Glass-filled polyamide insulation in TE Connectivity parts provides equivalent performance to standard polyamide.

Q: What is the difference between 1456987-7 and 1456987-3?

A: Both are electrically and mechanically identical. 1456987-7 carries Last Time Buy status, indicating discontinued production. 1456987-3 is in active production with higher availability (1,731 units vs. 873 units).

Q: Is 69153-033LF compatible with IPD1-04-D-R?

A: Yes. 69153-033LF meets all critical substitution parameters: 8-position, 0.100" pitch, dual-row, crimp termination, and latch lock fastening. The modified polyphenylene insulation is functionally equivalent to polyamide. Operating temperature range (-40°C ~ 105°C) exceeds typical requirements.

Q: Why does 9-965382-2 have a different operating temperature range?

A: 9-965382-2 uses PBT (polybutylene terephthalate) insulation with glass filling, which provides extended thermal performance (-40°C ~ 130°C). This is a material property difference, not a functional limitation. Use this part only if the extended temperature range is required or if standard temperature operation is acceptable.

Q: Are all substitutes RoHS compliant?

A: Yes. All listed substitutes meet RoHS requirements. Samtec parts (IPD1-04-D series) are ROHS3 compliant. TE Connectivity and Amphenol parts are RoHS compliant. Compliance status is maintained across all options.

Q: Can I mix and match connectors from different manufacturers in the same assembly?

A: Electrical and mechanical compatibility is maintained across all listed substitutes. However, design validation should confirm that insulation material differences (polyamide vs. modified polyphenylene vs. PBT) do not affect application-specific requirements such as chemical resistance or thermal cycling performance.
