INT018ATFT Equivalent & Substitute Parts Reference

Part Overview

The INT018ATFT is a 1.8" TFT color LCD display module manufactured by Displaytech, featuring a 128 x 160 pixel resolution with transmissive RGB display technology and LED backlight. This part is classified as obsolete, making equivalent substitute parts necessary for ongoing design requirements and production continuity. The viewing area measures 28.03mm W x 35.04mm H, suitable for compact embedded applications requiring color graphical display capabilities.

Substiute Parts

INT018ATFT

DisplaytechIn Stock: 1129INT018ATFT Datasheet

Current PartRFQ

DT018ATFT

DisplaytechIn Stock: 1200DT018ATFT Datasheet

SimilarRFQ

E18GB-CW600-N

Focus LCDsIn Stock: 962E18GB-CW600-N Datasheet

SimilarRFQ

E18RE-CW1000-N

Focus LCDsIn Stock: 1136E18RE-CW1000-N Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the INT018ATFT are qualified based on the following critical parameters that must align with the original specification:

• Diagonal screen size: 1.8" (45.72mm)
• Pixel resolution: 128 x 160
• Display technology: TFT color transmissive
• Color format: RGB
• Backlight type: LED
• Viewing area dimensions: 28.03mm W x 35.04mm H
• Environmental compliance: RoHS compliance required

The three substitute parts listed below meet these core electrical and mechanical requirements. Variations in interface type, controller architecture, and packaging format are permitted substitution parameters, as these do not affect the fundamental display output characteristics or physical form factor compatibility.

Parameter Comparison

Engineering Selection Recommendations

All three substitute parts maintain active product status, ensuring long-term availability and supply chain stability compared to the obsolete INT018ATFT. Selection among substitutes should be based on the following factors:

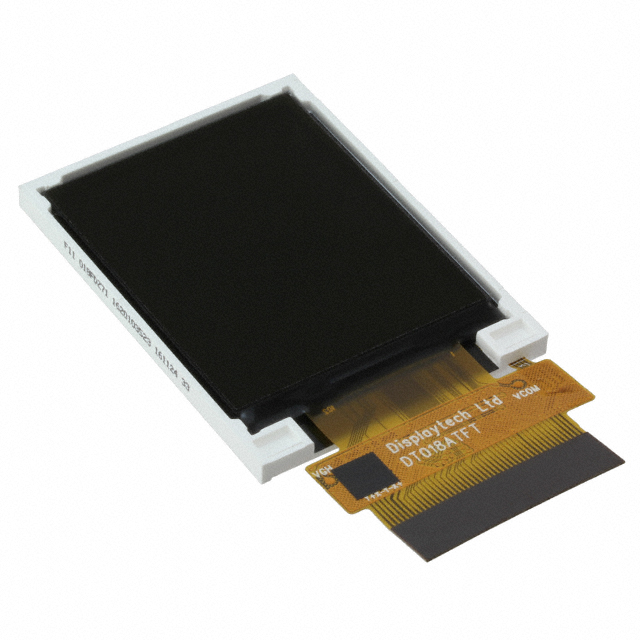

DT018ATFT (Displaytech): Maintains manufacturer continuity with the original INT018ATFT while achieving active product status. Achieves ROHS3 compliance and includes parallel interface specification. Suitable for designs requiring direct manufacturer compatibility.

E18GB-CW600-N (Focus LCDs): Offers MCU, SPI, and 8-Bit/9-Bit/16-Bit/18-Bit interface options with ILI9163V controller. Packaged in Tape & Box format. Appropriate for applications requiring flexible interface protocols and embedded controller integration.

E18RE-CW1000-N (Focus LCDs): Specified as sunlight-readable variant with ST7735S controller. Packaged in Tape & Box format. Suitable for outdoor or high-ambient-light applications requiring enhanced display visibility.

All substitutes maintain RoHS compliance and REACH unaffected status where specified, supporting regulatory requirements for modern electronics manufacturing.

Frequently Asked Questions (FAQ)

Q: Can INT018ATFT be directly replaced with DT018ATFT? A: Yes. Both parts share identical display specifications (1.8", 128 x 160 pixels, RGB TFT transmissive) and viewing area dimensions. DT018ATFT is the active-status equivalent from the same manufacturer.

Q: What are the key differences between Displaytech and Focus LCDs substitutes? A: Displaytech DT018ATFT maintains the original manufacturer line. Focus LCDs E18GB-CW600-N and E18RE-CW1000-N offer alternative interface options (MCU/SPI) and controller architectures (ILI9163V and ST7735S respectively). All maintain identical physical dimensions and pixel resolution.

Q: Are interface differences between substitutes significant? A: Interface variations (parallel vs. MCU/SPI) represent permitted substitution parameters. Selection depends on your application's communication protocol requirements. Verify your system design supports the chosen interface type.

Q: What does "sunlight readable" mean for E18RE-CW1000-N? A: This designation indicates enhanced display visibility in high-ambient-light conditions. The specification is provided in the part data; verify this feature aligns with your application environment.

Q: Are packaging differences between substitutes relevant? A: DT018ATFT is supplied in bulk packaging, while Focus LCDs parts use Tape & Box format. Packaging affects handling and storage procedures but does not impact electrical or mechanical compatibility.

Q: Do all substitutes meet the same compliance standards? A: All substitutes are RoHS compliant. DT018ATFT specifies ROHS3 compliance. Focus LCDs parts include REACH unaffected status. Verify compliance requirements for your specific application and region.

Q: Can I use these substitutes interchangeably in production? A: Physical form factor and display specifications are identical across all substitutes. Interface and controller differences require firmware or driver verification. Conduct compatibility testing before production transition.
