IMP001-US-B Equivalent & Substitute Parts Reference

Part Overview

The IMP001-US-B is an RF Transceiver module manufactured by Electric Imp Inc., designed for WLAN 2.4GHz 802.11 b/g/n applications. This component integrates wireless connectivity through I2C, SPI, and UART interfaces with a maximum data rate of 1Mbps and output power of 16.75dBm. The product is classified as "Not For New Designs," indicating it has reached end-of-life status. Organizations currently using this component in active applications or requiring continued supply must evaluate qualified substitute parts that maintain functional and electrical compatibility within the constraints of their system architecture.

Substiute Parts

IMP001-US-B

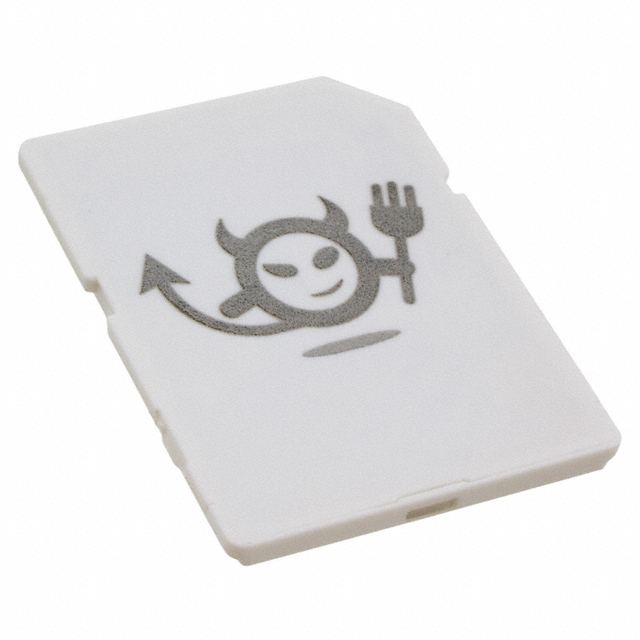

Electric Imp Inc.In Stock: 1447IMP001-US-B Datasheet

Current PartRFQ

LBWA1UZ1GC-901

Murata ElectronicsIn Stock: 2316LBWA1UZ1GC-901 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the IMP001-US-B is determined by the following critical parameters:

Functional Compatibility Criteria:

• Protocol Support: Must support 802.11 b/g/n minimum (dual-band or extended protocol support is acceptable)
• Interface Compatibility: Must include I2C, SPI, and UART serial interfaces
• Frequency Coverage: Must operate in the 2.4GHz band
• Electrical Characteristics: Supply voltage, sensitivity, and output power must be within acceptable system tolerances

Compliance & Environmental Criteria:

• RoHS3 Compliance: Required for regulatory alignment
• Moisture Sensitivity Level: Lower or equal MSL rating preferred for manufacturing compatibility
• Operating Temperature Range: Must support intended deployment environment

The LBWA1UZ1GC-901 qualifies as a substitute based on protocol support (802.11a/b/g/n includes b/g/n coverage), interface provision (I2C, SPI, UART, USB), 2.4GHz operation, and RoHS3 compliance. Differences in data rate, output power, sensitivity, supply voltage, and mounting type represent design trade-offs requiring system-level evaluation.

Parameter Comparison

Engineering Selection Recommendations

Product Status Alignment: The IMP001-US-B is designated "Not For New Designs," indicating end-of-life status. The LBWA1UZ1GC-901 carries "Active" product status, ensuring continued manufacturer support, availability, and compliance updates.

Regulatory Compliance: Both components are ROHS3 compliant and carry equivalent HTSUS classification (8517.62.0090), supporting regulatory alignment for procurement and deployment.

Substitution Feasibility: The LBWA1UZ1GC-901 provides functional substitution for 2.4GHz WLAN applications requiring 802.11 b/g/n protocol support. The substitute's extended protocol coverage (802.11a/b/g/n) and dual-band capability (2.4GHz, 5GHz) offer forward compatibility without compromising 2.4GHz operation.

Design Trade-offs Requiring Evaluation:

• Sensitivity: The substitute exhibits 7dB lower sensitivity (-90dBm vs. -97dBm), potentially affecting reception range in low-signal environments
• Output Power: The substitute provides 4.75dB lower transmit power (12dBm vs. 16.75dBm), affecting transmission range
• Data Rate: The substitute supports 65Mbps maximum data rate, substantially exceeding the original 1Mbps specification
• Supply Voltage: The substitute requires fixed 3.3V operation; systems designed for 1.8V operation require voltage regulation modification
• Moisture Sensitivity: The substitute has MSL 3 (168 hours) versus MSL 1 (unlimited), requiring enhanced moisture control during manufacturing and storage
• Mounting: The substitute is surface-mount; systems designed for bulk component integration require PCB redesign

System-Level Considerations: Substitution requires validation of RF performance (sensitivity and output power trade-offs), power supply architecture (fixed 3.3V requirement), PCB layout (surface-mount vs. bulk packaging), and manufacturing process compatibility (MSL 3 handling procedures).

Frequently Asked Questions (FAQ)

Q: Can the LBWA1UZ1GC-901 directly replace the IMP001-US-B without design changes?

A: Direct replacement is not possible due to differences in mounting type (surface-mount vs. bulk), supply voltage requirement (fixed 3.3V vs. 1.8V–3.6V range), and physical packaging. PCB redesign and power supply modification are required.

Q: What is the impact of the 7dB sensitivity difference on system performance?

A: The LBWA1UZ1GC-901 sensitivity of -90dBm versus the IMP001-US-B sensitivity of -97dBm represents a 7dB reduction in receiver sensitivity. This affects reception range in weak-signal conditions. System-level RF testing is necessary to determine if this trade-off is acceptable for the intended deployment environment.

Q: Why does the substitute have higher data rate capability (65Mbps vs. 1Mbps)?

A: The LBWA1UZ1GC-901 is a modern module supporting 802.11a/b/g/n standards with enhanced PHY layer capabilities. The higher data rate reflects current-generation 802.11n performance. Legacy applications requiring only 1Mbps operation will not utilize this capability but benefit from improved protocol efficiency.

Q: What does MSL 3 (168 Hours) mean for manufacturing?

A: Moisture Sensitivity Level 3 requires that the component be stored in controlled humidity conditions and used within 168 hours of package opening. The original IMP001-US-B has MSL 1 (unlimited), allowing indefinite shelf life. Manufacturing processes must implement bake-out procedures and moisture-barrier packaging for the substitute.

Q: Are both components RoHS3 compliant?

A: Yes. Both the IMP001-US-B and LBWA1UZ1GC-901 are ROHS3 compliant, supporting equivalent regulatory requirements for hazardous substance restriction.

Q: What interfaces does the LBWA1UZ1GC-901 provide?

A: The substitute provides I2C, SPI, UART, and USB interfaces. The original IMP001-US-B provides I2C, SPI, and UART. The additional USB interface on the substitute does not create incompatibility; legacy designs using only I2C, SPI, and UART will function without modification to interface logic.

Q: Is the LBWA1UZ1GC-901 suitable for 2.4GHz-only applications?

A: Yes. Although the LBWA1UZ1GC-901 supports dual-band operation (2.4GHz and 5GHz), it operates fully in the 2.4GHz band and is compatible with 802.11 b/g/n protocols. The 5GHz capability is available but not required for 2.4GHz-only system designs.
