IL-S-9P-S2T2-EF Equivalent & Substitute Parts

Part Overview

The IL-S-9P-S2T2-EF is a rectangular connector header manufactured by JAE Electronics, designed for through-hole mounting with 9 positions at 2.00mm pitch. This shrouded, board-to-cable/wire connector features kinked pin solder termination and detent lock fastening. The product is classified as obsolete, making identification of equivalent and substitute parts essential for ongoing design support and component procurement.

Substiute Parts

IL-S-9P-S2T2-EF

JAE ElectronicsIn Stock: 1063IL-S-9P-S2T2-EF Datasheet

Current PartRFQ

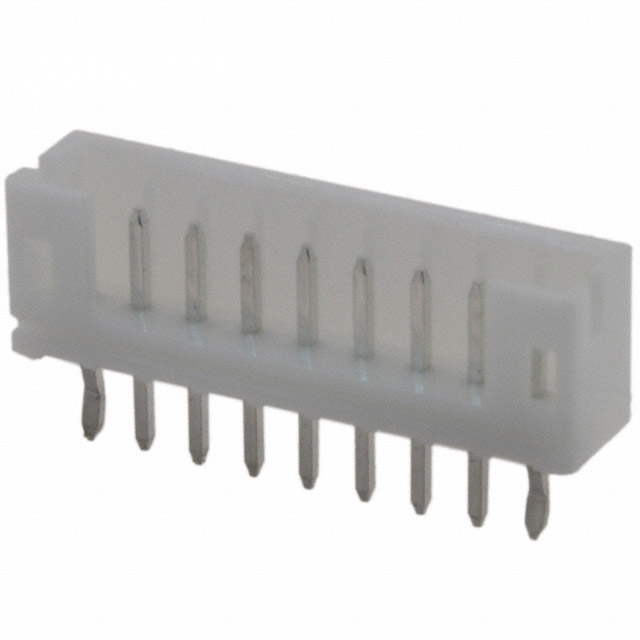

SWR201-NRTN-S09-SA-WH

Sullins Connector SolutionsIn Stock: 1159SWR201-NRTN-S09-SA-WH Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the IL-S-9P-S2T2-EF is determined by the following critical parameters:

• Connector Type & Contact Configuration: Header with male pins
• Position Count & Pitch: 9 positions at 0.079" (2.00mm) mating pitch
• Mounting & Termination: Through-hole mounting with kinked pin solder termination
• Shrouding & Fastening: Shrouded 4-wall design with detent lock fastening
• Electrical Performance: Current and voltage ratings must meet or exceed application requirements
• Environmental Compliance: UL94 V-0 flammability rating and operating temperature range

The substitute part SWR201-NRTN-S09-SA-WH from Sullins Connector Solutions shares the core mechanical and electrical interface characteristics required for functional equivalence in board-to-cable/wire applications.

Parameter Comparison

Engineering Selection Recommendations

The SWR201-NRTN-S09-SA-WH from Sullins Connector Solutions is mechanically and functionally compatible with the IL-S-9P-S2T2-EF for applications requiring 9-position, 2.00mm pitch through-hole header connectors with shrouded 4-wall design and detent lock fastening.

Electrical Considerations: The IL-S-9P-S2T2-EF is rated for 3A per contact at 300VAC/400VDC, while the SWR201-NRTN-S09-SA-WH is rated for 1A per contact at 125V. Applications requiring the higher current or voltage ratings of the original part must be evaluated against the substitute's electrical specifications.

Temperature Range: The IL-S-9P-S2T2-EF operates from -40°C to 85°C, while the SWR201-NRTN-S09-SA-WH operates from -25°C to 85°C. Applications requiring operation below -25°C are not suitable for the substitute part.

Compliance & Availability: The SWR201-NRTN-S09-SA-WH is active product status with RoHS3 compliance and REACH unaffected designation, providing long-term availability and regulatory alignment for new designs and ongoing production.

Frequently Asked Questions (FAQ)

Q: Can the SWR201-NRTN-S09-SA-WH directly replace the IL-S-9P-S2T2-EF?

A: The SWR201-NRTN-S09-SA-WH is mechanically and functionally compatible for board-to-cable/wire applications with identical pitch, position count, shrouding, and termination. However, electrical ratings differ: the substitute supports 1A per contact at 125V versus the original's 3A per contact at 300VAC/400VDC. Substitution is valid only when application requirements fall within the substitute's electrical specifications.

Q: What are the key mechanical compatibility factors?

A: Both connectors share identical specifications for mating pitch (2.00mm), position count (9), shrouding (4-wall), mounting type (through-hole), termination (kinked pin solder), and fastening (detent lock). These parameters ensure mechanical interchangeability in PCB footprints and mating interface designs.

Q: Are there temperature limitations with the substitute part?

A: The SWR201-NRTN-S09-SA-WH operates from -25°C to 85°C, compared to the original part's -40°C to 85°C range. Applications requiring operation below -25°C require the original IL-S-9P-S2T2-EF or alternative parts with extended low-temperature ratings.

Q: What compliance certifications apply to both parts?

A: Both connectors carry UL94 V-0 material flammability ratings, REACH unaffected status, and EAR99 ECCN classification. The SWR201-NRTN-S09-SA-WH additionally carries RoHS3 compliance, providing enhanced regulatory alignment for current manufacturing standards.

Q: How do the electrical ratings compare?

A: The IL-S-9P-S2T2-EF supports 3A per contact at 300VAC or 400VDC. The SWR201-NRTN-S09-SA-WH supports 1A per contact at 125V. Applications requiring higher current capacity or voltage ratings must retain the original part or identify alternative substitutes with matching electrical specifications.
